1697215-00 (80083162-00) - Snapper 82V String Trimmer Attachment String Trimmer Parts Diagram

82V String Trimmer Attachment

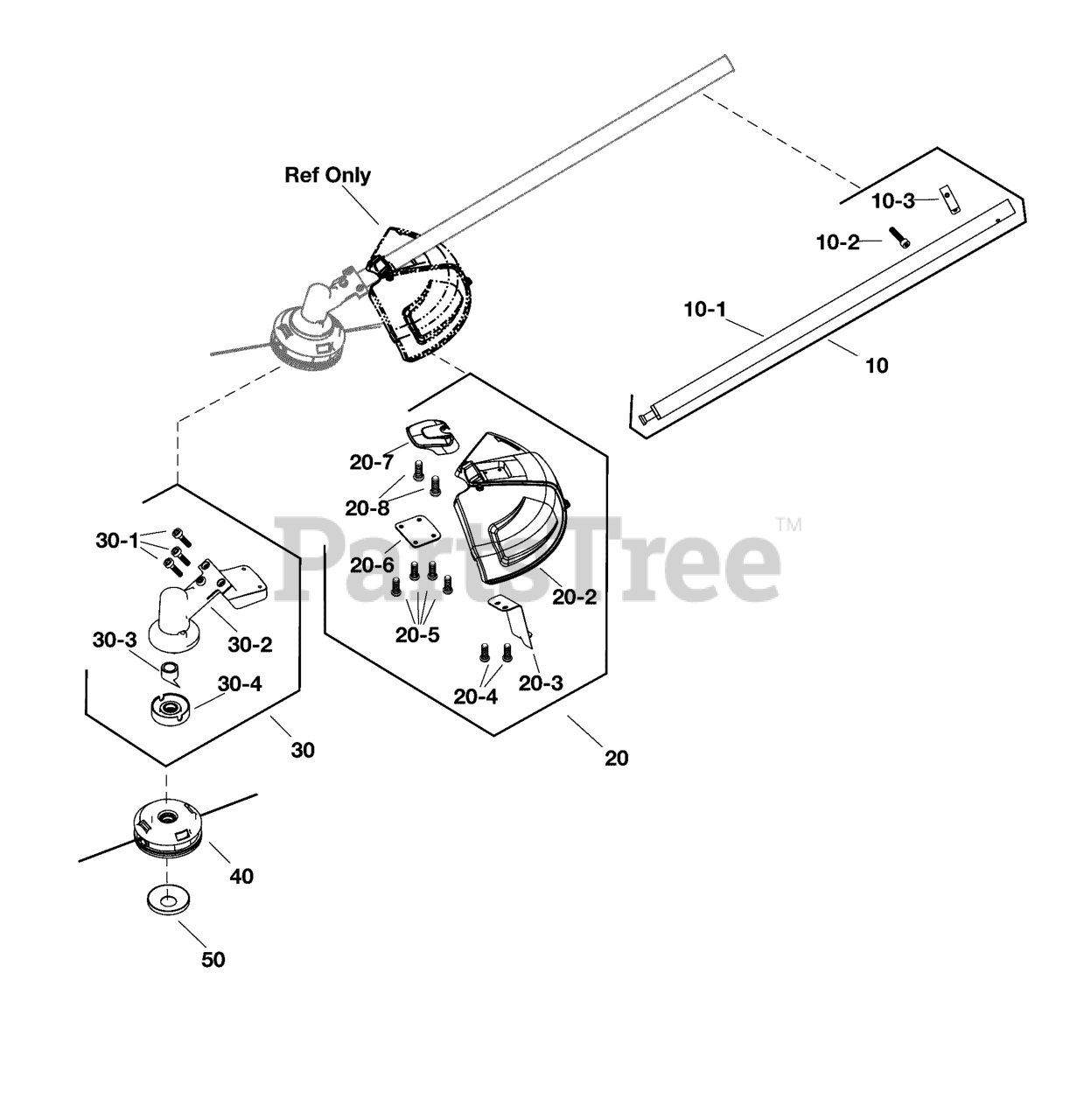

String Trimmer Parts Diagram

  • Title

10

Snapper 770153

KIT, Shaft

Note: (Includes Ref 10-1 through 10-3

$77.99

$

Usually ships in 2-12 days

0

10-1

SHAFT

$

$

Not available

10-2

SCREW

$

$

Not available

10-3

CLIP

$

$

Not available

20

Snapper 770383

KIT, Guard

Note: (Includes Ref 20-2 through 20-8

$77.99

$

Usually ships in 2-12 days

0

20-2

GUARD

$

$

Not available

20-3

BLADE

$

$

Not available

20-4

SCREW

$

$

Not available

20-5

BOLT

$

$

Not available

20-6

BRACKET

$

$

Not available

20-7

COVER, Guard

$

$

Not available

20-8

SCREW

$

$

Not available

30

Snapper 770152

KIT, Gear Box

Note: (Includes Ref 30-1 through 30-4

$56.99

$

Usually ships in 2-12 days

0

30-1

SCREW

$

$

Not available

30-2

GEARBOX

$

$

Not available

30-3

Snapper 84003526

BUSHING

$4.49

$

Usually ships in 2-12 days

0

30-4

Snapper 84003527

COVER, Gearbox

$12.99

$

Usually ships in 2-12 days

0

40

Snapper 770155

BUMPHEAD

$91.99

$

Usually ships in 2-12 days

0

50

Snapper 770154

COVER, Bumphead

$7.49

$

In Stock, only 2 left!

0
