1697361A-00 - Simplicity Bagging Boot & Baffle Bagging Boot & Baffle Parts Diagram

Bagging Boot & Baffle

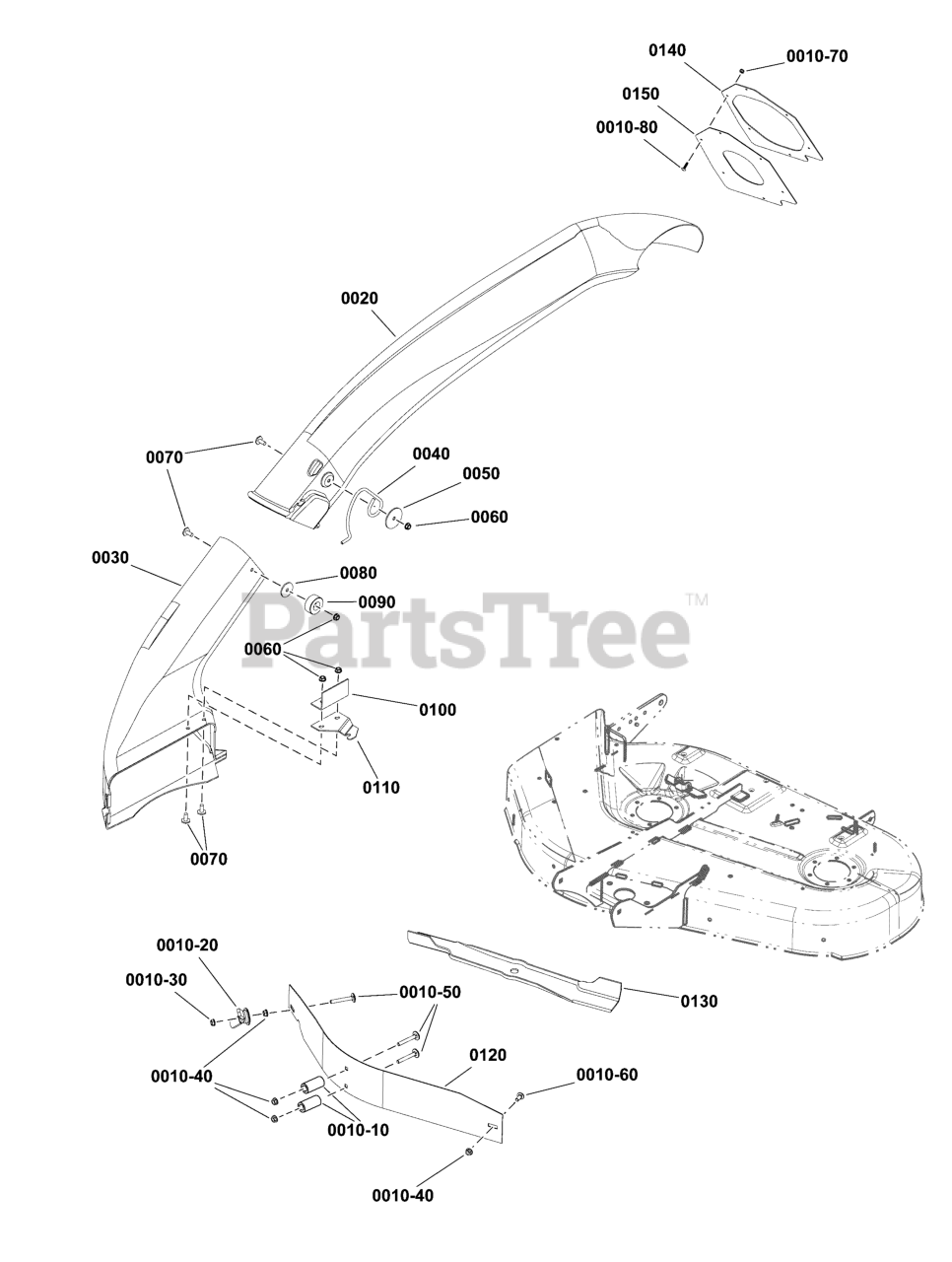

Bagging Boot & Baffle Parts Diagram

  • Title

0010-10

Simplicity 1674669SM

SPACER-0.39 IDX0.625O

$11.99

$

In Stock, Qty 20+

0

0010-20

Simplicity 1679163SM

NUT & CUP ASSEMBLY, Wing, 5/16-18 E-Coat

$71.99

$

Usually ships in 2-12 days

0

0010-30

Simplicity 704067

NUT, HEX FLNG,5/16-18

$3.99

$

In Stock, Qty 20+

0

0010-40

Simplicity 5025139SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, only 4 left!

0

0010-50

Simplicity 704421

SCREW, 5/16 X 2.25

$5.49

$

In Stock, Qty 16

0

0010-60

Simplicity 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0010-70

Simplicity 703412

NUT, NYLOCK, 10-24

$4.49

$

In Stock, Qty 20+

0

0010-80

Simplicity 1960404SM

SCREW, Truss Head, Phillips, #10-24 x 3/4,

$3.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1703769SM

TUBE, Discharge

$

$

Not available

0030

Simplicity 1732561SM

BOOT, Bagging, 38" Mower Deck

$245.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1704603SM

LATCH, Wire Form

$

$

Not available

0050

Simplicity 1960185SM

WASHER, 5/16 x 2-1/8 OD

$3.99

$

Usually ships in 2-12 days

0

0060

Simplicity 704067

NUT, HEX FLNG,5/16-18

$3.99

$

In Stock, Qty 20+

0

0070

Simplicity 1960371SM

SCREW, Head Head, 5/16-18 x 3/4

$5.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1920283SM

WASHER, Flat, 11/32 x 1-1/2 x 7/64

$4.99

$

In Stock, only 4 left!

0

0090

Simplicity 1704341SM

WASHER, Special, 11/32 x 7/8 x 1-3/4

$43.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1733970ASM

BRACKET, Deflector Prop

$23.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1704355ASM

BRACKET, Attachment

$12.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1703765ASM

BAFFLE, 38" Simplicity Model

$96.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1760200YP

BLADE-MOWER

$31.99

$

In Stock, only 3 left!

0

0140

Simplicity 1732735ASM

FLANGE, Seal

$42.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1733741YP

SEAL

$30.99

$

Usually ships in 2-12 days

0
