1697382A-00 - Simplicity 50" Bagging Boot & Baffle Bagging Boot Parts Diagram

50" Bagging Boot & Baffle

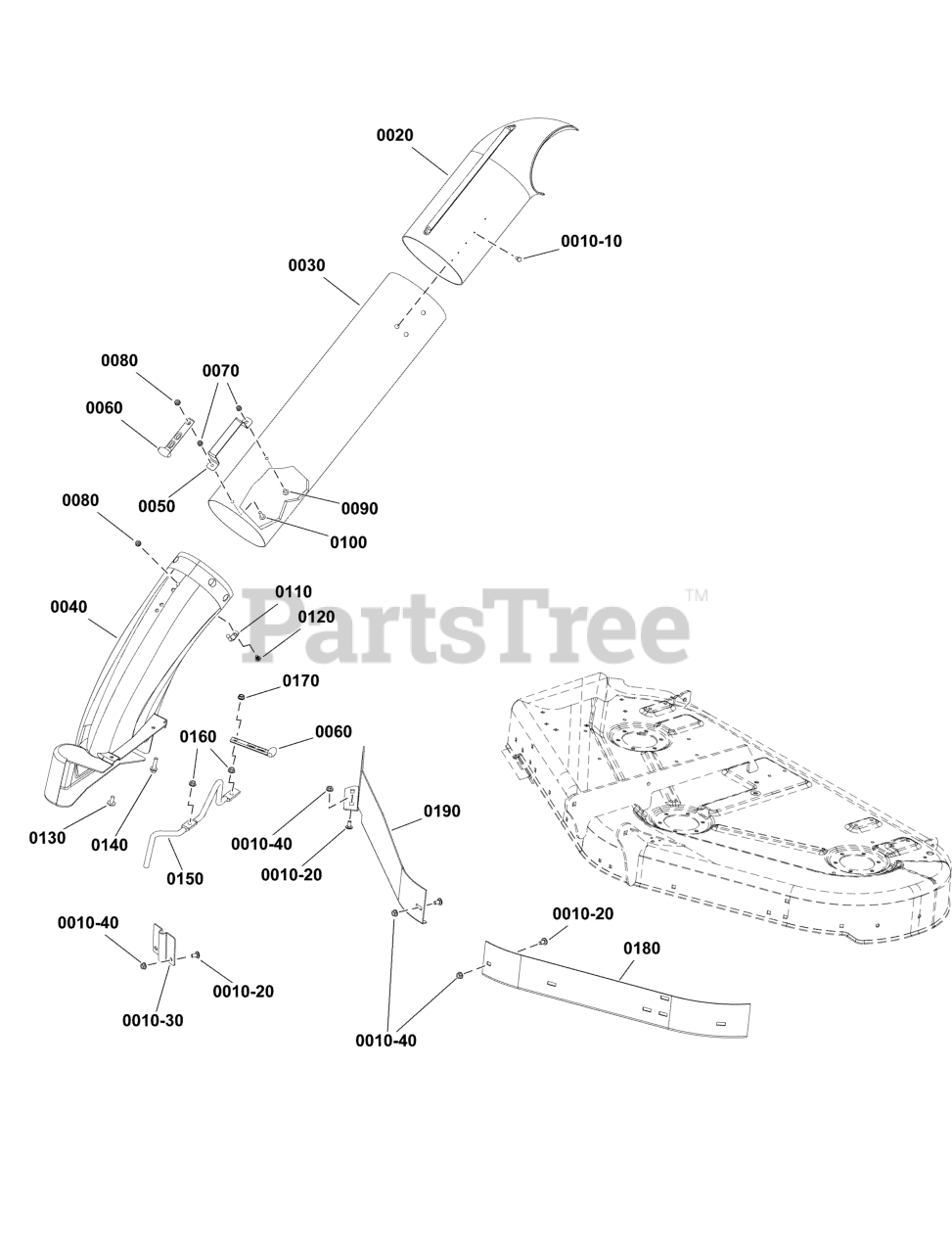

Bagging Boot Parts Diagram

  • Title

0010-10

Simplicity 26X239MA

SCREW, 1/4 Phillips

$4.49

$

In Stock, only 2 left!

0

0010-20

Simplicity 703125

BOLT, Carriage, 5/16-18 x 5/8, GR5

$3.99

$

In Stock, only 2 left!

0

0010-30

Simplicity 1726578ASM

PLATE, Chute Rod

$32.99

$

Usually ships in 2-12 days

0

0010-40

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, only 2 left!

0

0020

Simplicity 1733885SM

ELBOW, Upper Tube

$103.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1734299SM

TUBE, Clear Poly, ZTS Twin Catcher

$140.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1759966YP

BOOT, Bagging

$330.99

$

Usually ships in 2-12 days

0

0050

Simplicity 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 4 left!

0

0060

Simplicity 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0

0070

Simplicity 703914

NUT, Hex, 1/4-20

$3.49

$

In Stock, Qty 18

0

0080

Simplicity 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0090

Simplicity 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0100

Simplicity 004X71MA

SCREW, Machine, 1/4-20 X 1

$4.99

$

In Stock, only 4 left!

0

0110

Simplicity 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0120

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 2 left!

0

0130

Simplicity 1960371SM

SCREW, Head Head, 5/16-18 x 3/4

$5.49

$

Usually ships in 2-12 days

0

0140

Simplicity 1930595SM

CAPSCREW, Hex Head Flange Lock, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 8

0

0150

Simplicity 1733946SM

ROD, Boot Mount, Deflector Prop, 44/50"

$44.99

$

Usually ships in 2-12 days

0

0160

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, only 2 left!

0

0170

Simplicity 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 1716870ASM

BAFFLE, Anti-Blowout, LH, 50" Deck (Not Shown)

$164.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1726364ASM

BAFFLE, Blowout, R.H., 50" Mower Deck

$74.99

$

Usually ships in 2-12 days

0
