1697443-01 - Snapper 48"/122cm Fab Mower Deck 48" (122cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

48"/122cm Fab Mower Deck

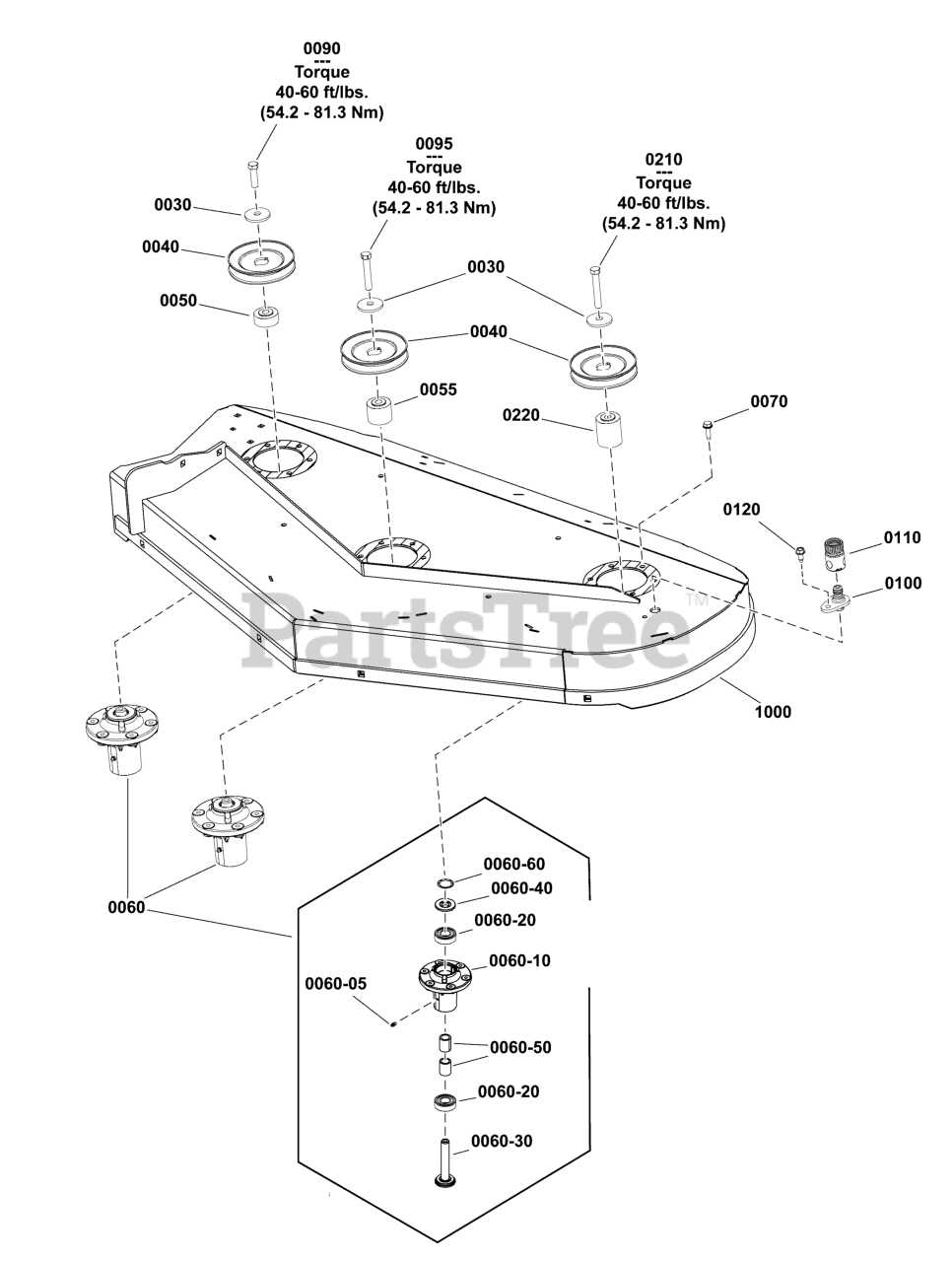

48" (122cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0030

Snapper 1656916SM

WASHER, SPRING 0.475IDX1.75ODX.156TH BLK

$7.99

$

In Stock, Qty 20+

0

0040

Snapper 1732951SM

PULLEY-04.60 OD 1.000ID 0.87 WD 9GA BLK

$20.99

$

In Stock, Qty 20+

0

0050

Snapper 706362

SPACER, HUB

$10.99

$

In Stock, only 1 left!

0

0055

Snapper 1759940YP

SPACER - PULLEY UPPER DRIVE

$17.99

$

In Stock, only 2 left!

0

0060

Snapper 84003173

ARBOR ASSEMBLY 42, 48 FAB

Note: ( Incl. Ref. Nos. 0060-05. 0060-10, 0060-20, 0060-30, 0060-40, 0060-50 & 0060-60 )

$102.99

$

In Stock, Qty 6

0

0060-05

Snapper 1704314SM

FITTING-LUBE .250 DRIVE .25SH BL CHK
(Superseded to 703907)

Note: ( Included with Ref. No. 0060 )

$5.49

$

In Stock, Qty 20+

0

0060-10

Snapper 84003653

HOUSING, SPINDLE - CAST ALUM W/ ZERK

Note: ( Included with Ref. No. 0060 )

$86.99

$

Usually ships in 2-12 days

0

0060-20

Snapper 1735399YP

BEARING, Ball, 20mm

Note: ( Included with Ref. No. 0060 )

$9.99

$

In Stock, Qty 20+

0

0060-30

Snapper 84003170

SHAFT, MOWER SPINDLE-.787 BLADE PILOT

Note: ( Included with Ref. No. 0060 )

$31.99

$

In Stock, only 1 left!

0

0060-40

Snapper 84003166

SHIELD-ARBOR 2.050 OD

Note: ( Included with Ref. No. 0060 )

$7.49

$

In Stock, Qty 20+

0

0060-50

Snapper 84003167

SPACER - BEARING MIDDLE

Note: ( Included with Ref. No. 0060 )

$6.99

$

Usually ships in 2-12 days

0

0060-60

Snapper 1960766YP

RING-SELF LOCKING 46" MWR

Note: ( Included with Ref. No. 0060 )

$4.49

$

In Stock, Qty 20+

0

0070

Snapper 704146

SCREW,5/16-18X1.000,HEX WSHR HD,TT,ZC/CL

Note: ( Included with Ref. No. 0060 )

$3.99

$

In Stock, only 1 left!

0

0090

Snapper 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$4.49

$

Usually ships in 2-12 days

0

0095

Snapper 705877

CAPSCREW, Hex Head, 7/16-14 x 2 1/2

$7.49

$

In Stock, only 2 left!

0

0100

Snapper 1756247YP

ADAPTER, Washout Port

$6.99

$

In Stock, Qty 7

0

0110

Snapper 1756246YP

CONNECTOR, Washout Port

$16.99

$

In Stock, only 1 left!

0

0120

Snapper 703228

SCREW, 5/16-18X0.750

$4.49

$

In Stock, Qty 20+

0

0210

Snapper 1926110SM

CAPSCREW-HEX HD 7/16-14X2.750 G5 ZC/CL

$6.49

$

In Stock, Qty 7

0

0220

Snapper 706364

SPACER, PULLEY

$30.99

$

In Stock, only 2 left!

0

1000

Snapper 84007248

KIT, Mower Deck w/Decals, 48"

$1764.99

$

Usually ships in 2-12 days

0
