1697457 - Ferris 48" Bagging Boot, Blade & Baffle Kit Boot, Baffle & Blade Kit - 1697457 Parts Diagram

48" Bagging Boot, Blade & Baffle Kit

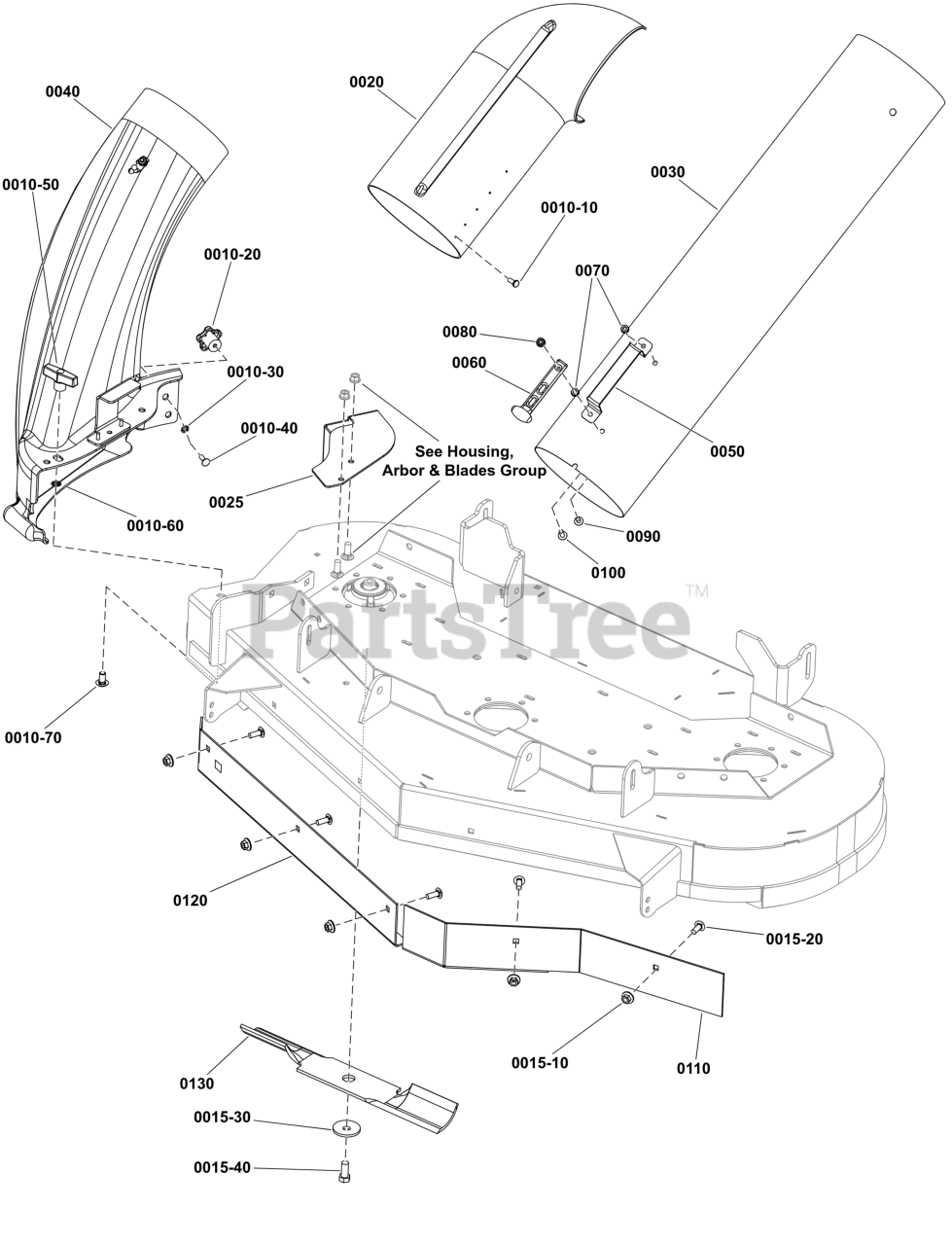

Boot, Baffle & Blade Kit - 1697457 Parts Diagram

  • Title

0010-10

Ferris 80023372

SCREW, 1/4 - 14 AB X .75

$

$

Currently unavailable

0010-20

Ferris 80010364

KNOB, HANDLE, 5 PRONG

$

$

Currently unavailable

0010-30

Ferris 80004801

BOLT,1/4,PUSHNUT RETAINER,PHOSPHATE/OIL
(Superseded to 703826)

$3.49

$

In Stock, Qty 6

0

0010-40

Ferris 80003571

BOLT 1/4-20 X .75 GR2 CARRIAGE ZC
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

0010-50

Ferris 721686

WING NUT, 3/8-16

$

$

Currently unavailable

0010-60

Ferris 80005327

RETAINER,3/8,PUSHNUT,ZINC/CLEAR
(Superseded to 703986)

$4.49

$

In Stock, Qty 20+

0

0010-70

Ferris 80003585

BOLT,3/8-16X.75,GR5,CARRIAGE,ZC/CL
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0015-10

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 5

0

0015-20

Ferris 80005939

BOLT,5/16-18X0.875,SHRT SQ NK,CRRG,ZC/CL

$

$

Currently unavailable

0015-30

Ferris 1656916

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black
(Superseded to 1656916SM)

$7.99

$

In Stock, Qty 20+

0

0015-40

Ferris 80004484

HHCS, 7/16-14 X 1.250
(Superseded to 703579)

$4.99

$

In Stock, Qty 20+

0

0020

Ferris 1733885

ELBOW, Upper Tube, Black Poly, Regular 3 Bag
(Superseded to 1733885SM)

$109.99

$

Usually ships in 2-12 days

0

0025

Ferris 80106670AA

BRACKET, XT BOOT ADAPTER, (BLACK)

$

$

Currently unavailable

0030

Ferris 7104383

TUBE, Clear Poly, 34
(Superseded to 7104383YP)

$168.99

$

Usually ships in 2-12 days

0

0040

Ferris 1759298

ASSY, BAGGING BOOT 42" FAB

$

$

Currently unavailable

0050

Ferris 720533CK

HANDLE CONNECT TUBE, BLACK TEXTURED

$

$

Currently unavailable

0060

Ferris 1760659

STRAP, RUBBER (BLACK)

$

$

Currently unavailable

0070

Ferris 80005323

NUT,1/4-20,HEX KEPS,ZINC/CLEAR

$

$

Currently unavailable

0080

NUT, 1/4-20, HexFlanged Thread Lock, ZC/CL

$

$

Not available

0090

Ferris 80023370

SCREW-MCH.25-20X0.5 ZC/CL

$

$

Currently unavailable

0100

Ferris 80023369

SCREW-MCH.25-20X1.0 ZC/CL

$

$

Currently unavailable

0110

Ferris 1759458A

BAFFLE, 48 FAB BAGGING, BLACK, TEXTURED

$

$

Currently unavailable

0120

Ferris 1759459A

BAFFLE, 48 FAB BAGGING, BLACK, TEXTURED

$

$

Currently unavailable

0130

Ferris 84007618

BLADE, High Lift

$

$

Currently unavailable
