1697553-00 - Snapper 120cm Snow Blade 120cm Snow Blade Parts Diagram

120cm Snow Blade

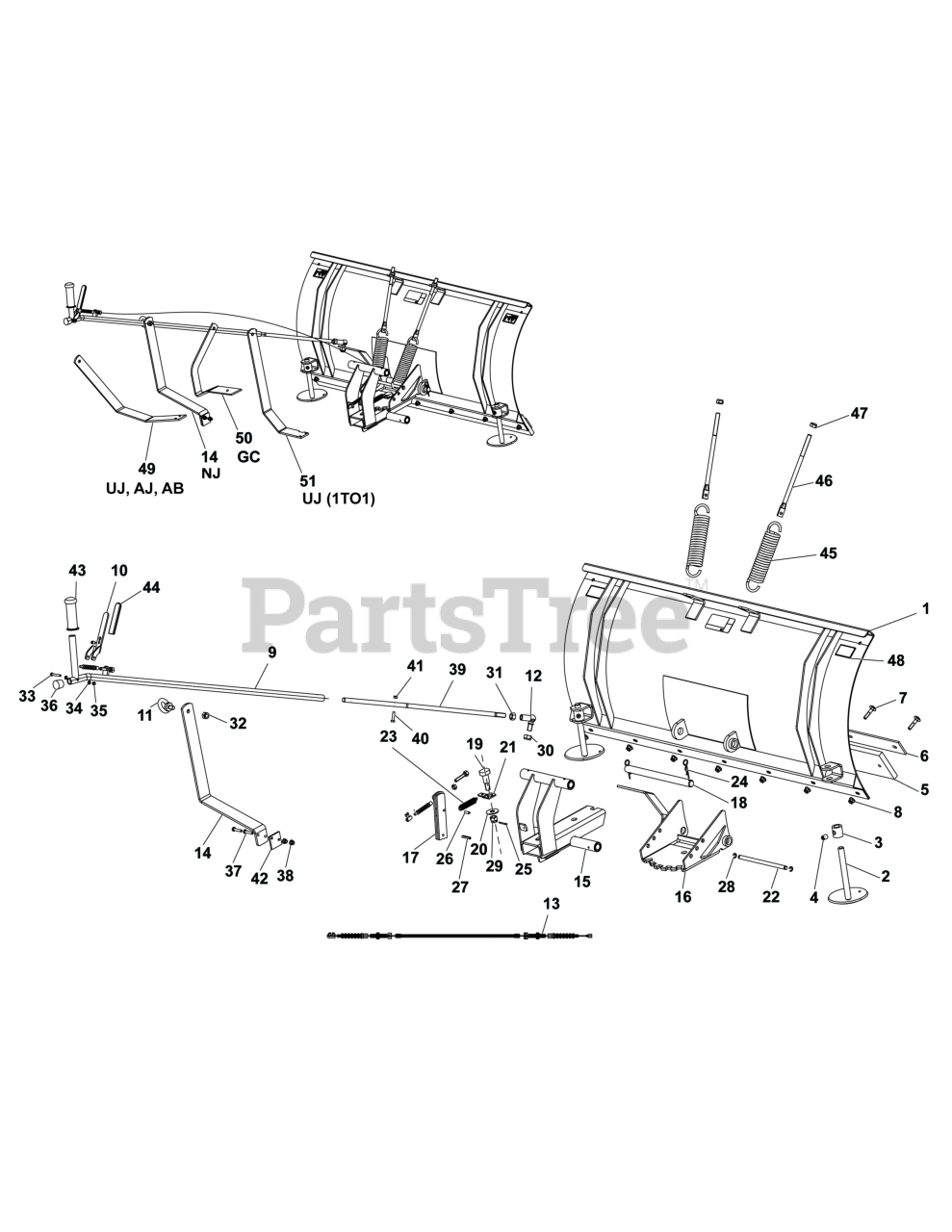

120cm Snow Blade Parts Diagram

  • Title

1

BLADE, Dozer

Note: ( Not a serviceable part )

$

$

Not available

2

Snapper 84012347

SUPPORT

$

$

Currently unavailable

3

Snapper 84012348

CLAMP

$

$

Currently unavailable

4

SCREW M12X14

Note: ( Refer to Note: *)

$

$

Not available

5

Snapper 84012349

BAR

$

$

Currently unavailable

6

Snapper 84012350

PLATE

$

$

Currently unavailable

7

SCREW M8X40

Note: ( Refer to Note: *)

$

$

Not available

8

NUT M8

Note: ( Refer to Note: *)

$

$

Not available

9

Snapper 84012351

LEVER

$

$

Currently unavailable

10

Snapper 84012352

LEVER

$

$

Currently unavailable

11

Snapper 84012353

SCREW

$

$

Currently unavailable

12

Snapper 84011477

JOINT, BALL

$

$

Currently unavailable

13

Snapper 84012354

CABLE

$

$

Currently unavailable

14

BRACKET

Note: ( NOT SERVICEABLE )

$

$

Not available

15

Snapper 84012355

CARRIER

$

$

Currently unavailable

16

Snapper 84012356

PLATE

$

$

Currently unavailable

17

Snapper 84012357

ARM

$

$

Currently unavailable

18

Snapper 84012358

PIN

$

$

Currently unavailable

19

Snapper 84012359

PIN

$

$

Currently unavailable

20

WASHER

Note: ( Refer to Note: *)

$

$

Not available

21

Snapper 84012360

CLIP

$

$

Currently unavailable

22

Snapper 84012361

PIN

$

$

Currently unavailable

23

Snapper 84011832

SPRING

$

$

Currently unavailable

24

Snapper 84012094

PIN

$

$

Currently unavailable

25

Snapper 84012194

PIN

$

$

Currently unavailable

26

Snapper 84012362

PIN

$

$

Currently unavailable

27

Snapper 84012363

PIN

$

$

Currently unavailable

28

Snapper 84012364

RING, Locking

$

$

Currently unavailable

29

NUT M12

Note: ( Refer to Note: *)

$

$

Not available

30

Snapper 84011987

NUT

$

$

Currently unavailable

31

NUT M12

Note: ( Refer to Note: *)

$

$

Not available

32

NUT M10

Note: ( Refer to Note: *)

$

$

Not available

33

SCREW M5X35

Note: ( Refer to Note: *)

$

$

Not available

34

WASHER 5.3

Note: ( Refer to Note: *)

$

$

Not available

35

NUT M5

Note: ( Refer to Note: *)

$

$

Not available

36

Snapper 84012246

CAP

$

$

Currently unavailable

37

SCREW M6X30

Note: ( Refer to Note: *)

$

$

Not available

38

NUT M6

Note: ( Refer to Note: *)

$

$

Not available

39

Snapper 84012365

LEVER

$

$

Currently unavailable

40

SCREW M6X25

Note: ( Refer to Note: *)

$

$

Not available

41

NUT M6

Note: ( Refer to Note: *)

$

$

Not available

42

WASHER

Note: ( Refer to Note: *)

$

$

Not available

43

Snapper 84012366

HANDLE

$

$

Currently unavailable

44

Snapper 84012367

SLEEVE

$

$

Currently unavailable

45

Snapper 84012368

SPRING

$

$

Currently unavailable

46

Snapper 84012369

ROD

$

$

Currently unavailable

47

NUT M10

Note: ( Refer to Note: *)

$

$

Not available

48

Snapper 84012370

DECAL

$

$

Currently unavailable

49

Snapper 84012371

BRACKET

Note: ( TRACTOR MODELS )

$

$

Currently unavailable

50

Snapper 84012372

BRACKET

Note: ( RIDER MODELS )

$

$

Currently unavailable

51

Snapper 84012373

BRACKET

Note: ( TRACTOR MODELS )

$

$

Currently unavailable
