1697555-00 - Snapper Sweeping Brush Kit Sweeping Brush Kit Parts Diagram

Sweeping Brush Kit

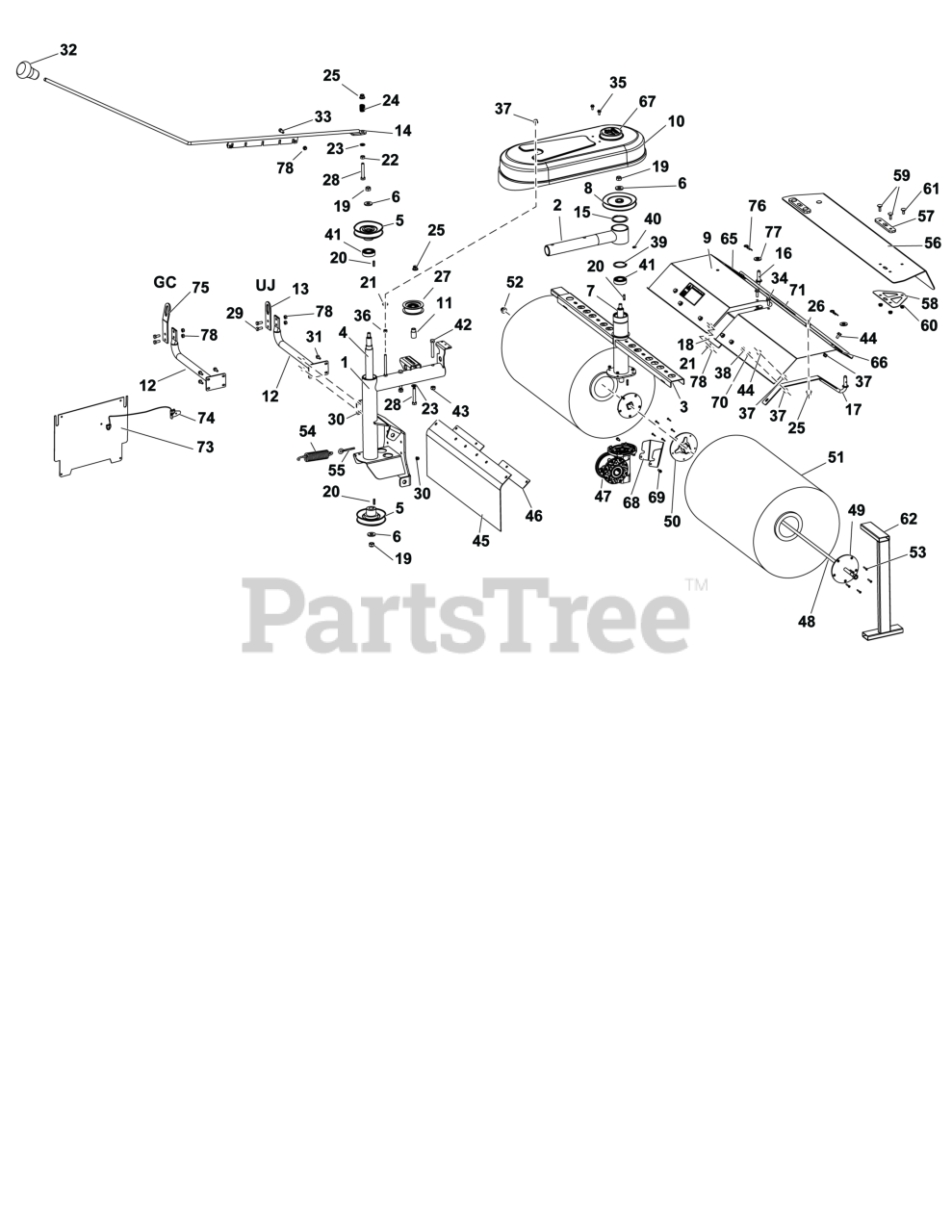

Sweeping Brush Kit Parts Diagram

  • Title

1

Snapper 84012484

CARRIER

$

$

Currently unavailable

2

Snapper 84012485

CARRIER

$

$

Currently unavailable

3

Snapper 84012486

CARRIER

$

$

Currently unavailable

4

Snapper 84012487

SHAFT

$

$

Currently unavailable

5

Snapper 84011237

PULLEY

$

$

Currently unavailable

6

Snapper 84012234

WASHER

$

$

Currently unavailable

7

Snapper 84012488

SHAFT

$

$

Currently unavailable

8

Snapper 84012454

PULLEY

$

$

Currently unavailable

9

Snapper 84012489

COVER

$

$

Currently unavailable

10

Snapper 84012490

COVER

$

$

Currently unavailable

11

Snapper 84012007

BUSHING

$

$

Currently unavailable

12

Snapper 84012491

HOLDER

$

$

Currently unavailable

13

Snapper 84012492

PLATE

Note: ( TRACTOR MODELS )

$

$

Currently unavailable

14

Snapper 84012493

LEVER

$

$

Currently unavailable

15

Snapper 84011218

RING

$

$

Currently unavailable

16

Snapper 84012494

BRACKET

$

$

Currently unavailable

17

Snapper 84012495

BRACKET

$

$

Currently unavailable

18

Snapper 84012496

PLATE

$

$

Currently unavailable

19

Snapper 84011987

NUT

$

$

Currently unavailable

20

Snapper 84012019

KEY

$

$

Currently unavailable

21

WASHER 9

Note: ( Refer to Note: *)

$

$

Not available

22

NUT M10

Note: ( Refer to Note: *)

$

$

Not available

23

WASHER 10.5

Note: ( Refer to Note: *)

$

$

Not available

24

Snapper 84012497

SPRING

$

$

Currently unavailable

25

NUT M10

Note: ( Refer to Note: *)

$

$

Not available

26

SCREW M10X25

Note: ( Refer to Note: *)

$

$

Not available

27

Snapper 84011231

PULLEY

$

$

Currently unavailable

28

SCREW M10X65

Note: ( Refer to Note: *)

$

$

Not available

29

SCREW M8X20

Note: ( Refer to Note: *)

$

$

Not available

30

NUT M6

Note: ( Refer to Note: *)

$

$

Not available

31

SCREW

Note: ( Refer to Note: *)

$

$

Not available

32

Snapper 84012498

HANDLE

$

$

Currently unavailable

33

SCREW M8X20

Note: ( Refer to Note: *)

$

$

Not available

34

SCREW M8X25

Note: ( Refer to Note: *)

$

$

Not available

35

SCREW M6X16

Note: ( Refer to Note: *)

$

$

Not available

36

NUT M8

Note: ( Refer to Note: *)

$

$

Not available

37

NUT M8

Note: ( Refer to Note: *)

$

$

Not available

38

SCREW M8X20

Note: ( Refer to Note: *)

$

$

Not available

39

Snapper 84012240

CLIP

$

$

Currently unavailable

40

Snapper 84012073

ZERK, Grease Fitting

$

$

Currently unavailable

41

Snapper 84011981

BEARING

$

$

Currently unavailable

42

SCREW M10X70

Note: ( Refer to Note: *)

$

$

Not available

43

NUT M10

Note: ( Refer to Note: *)

$

$

Not available

44

SCREW

Note: ( Refer to Note: *)

$

$

Not available

45

Snapper 84012499

SHIELD

$

$

Currently unavailable

46

Snapper 84012500

WASHER

$

$

Currently unavailable

47

Snapper 84012501

TRANSMISSION

$

$

Currently unavailable

48

Snapper 84012502

ROD

$

$

Currently unavailable

49

Snapper 84012503

CAP

$

$

Currently unavailable

50

Snapper 84012504

CARRIER

$

$

Currently unavailable

51

Snapper 84012505

BRUSH

$

$

Currently unavailable

52

NUT M12

Note: ( Refer to Note: *)

$

$

Not available

53

SCREW M4X30

Note: ( Refer to Note: *)

$

$

Not available

54

Snapper 84012385

SPRING

$

$

Currently unavailable

55

Snapper 84011833

EYE BOLT

$

$

Currently unavailable

56

Snapper 84012506

SHIELD

$

$

Currently unavailable

57

Snapper 84012507

PLATE

$

$

Currently unavailable

58

Snapper 84012508

COVER

$

$

Currently unavailable

59

SCREW M8X25

Note: ( Refer to Note: *)

$

$

Not available

60

NUT M8

Note: ( Refer to Note: *)

$

$

Not available

61

SCREW M8X20

Note: ( Refer to Note: *)

$

$

Not available

62

Snapper 84012509

SUPPORT

$

$

Currently unavailable

65

Snapper 84012370

DECAL

$

$

Currently unavailable

66

Snapper 84012124

DECAL

$

$

Currently unavailable

67

DECAL

Note: ( Not Serviceable )

$

$

Not available

68

Snapper 84012511

PLATE

$

$

Currently unavailable

69

SCREW M6X14

Note: ( Refer to Note: *)

$

$

Not available

70

WASHER 8.4

Note: ( Refer to Note: *)

$

$

Not available

71

Snapper N283293576

DECAL

Note: ( Not Serviceable )

$

$

Currently unavailable

73

Snapper 84012445

COVER

$

$

Currently unavailable

74

Snapper 84012446

PLATE

$

$

Currently unavailable

75

Snapper 84012512

PLATE

Note: ( RIDER MODELS )

$

$

Currently unavailable

76

Snapper 84012317

PIN

$

$

Currently unavailable

77

WASHER 14

Note: ( Refer to Note: *)

$

$

Not available

78

NUT M8

Note: ( Refer to Note: *)

$

$

Not available
