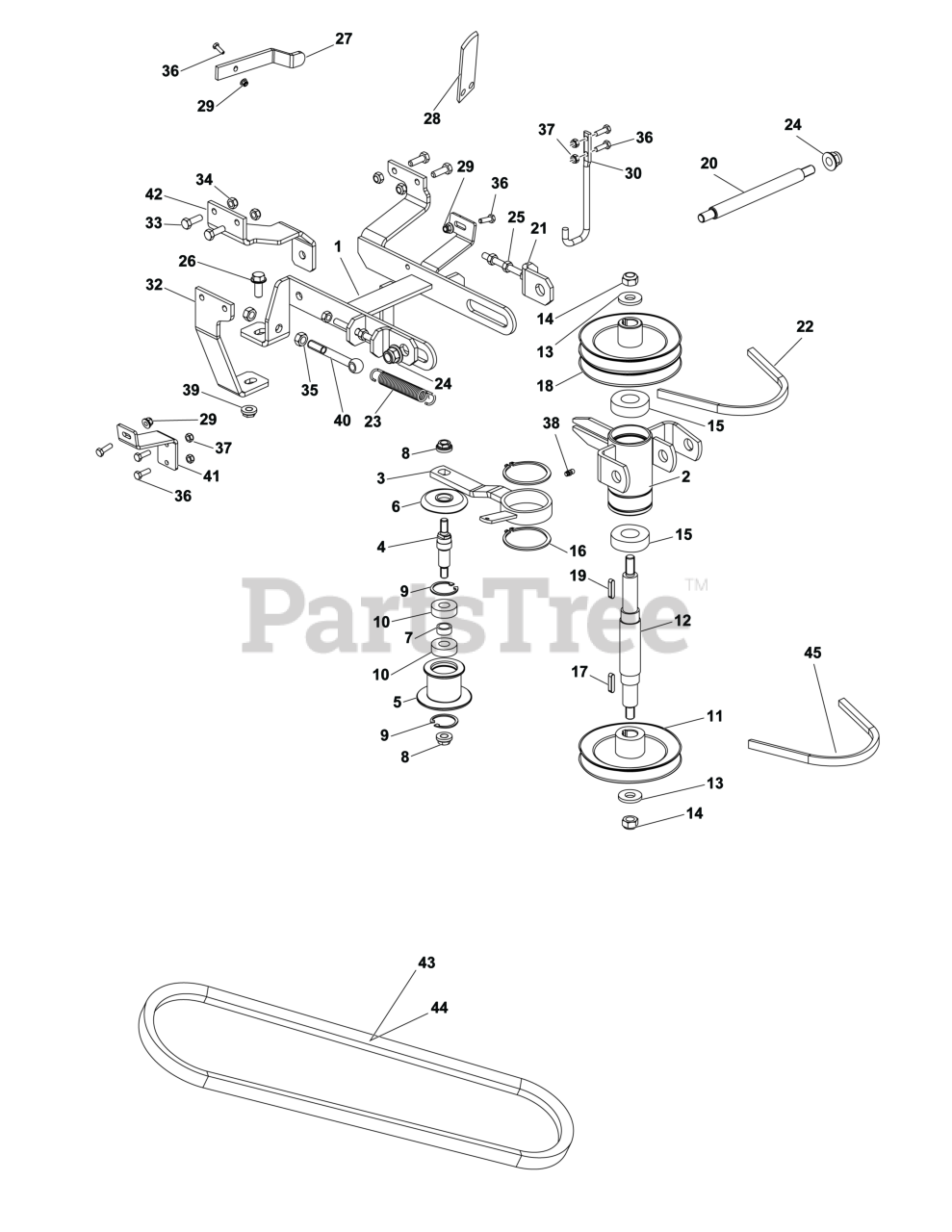

1697559-00 - Snapper Front Drive for Tractor Drive, Front, Tractor Parts Diagram

Front Drive for Tractor

Drive, Front, Tractor Parts Diagram

  • Title

1

CARRIER

Note: ( Not Serviceable )

$

$

Not available

2

Snapper 84012449

CARRIER

$

$

Currently unavailable

3

Snapper 84012450

HOLDER

$

$

Currently unavailable

4

Snapper 84012451

SHAFT

$

$

Currently unavailable

5

Snapper 84012452

PULLEY

$

$

Currently unavailable

6

Snapper 84012453

CAP

$

$

Currently unavailable

7

Snapper 84011799

CLIP

$

$

Currently unavailable

8

NUT M10

Note: ( Refer to Note: *)

$

$

Not available

9

Snapper 84012000

CLIP

$

$

Currently unavailable

10

Snapper 84011999

BEARING

$

$

Currently unavailable

11

Snapper 84012454

PULLEY

$

$

Currently unavailable

12

Snapper 84012455

SHAFT

$

$

Currently unavailable

13

Snapper 84012234

WASHER

$

$

Currently unavailable

14

Snapper 84011987

NUT

$

$

Currently unavailable

15

Snapper 84011981

BEARING

$

$

Currently unavailable

16

Snapper 84011218

RING

$

$

Currently unavailable

17

Snapper 84012019

KEY

$

$

Currently unavailable

18

Snapper 84012456

PULLEY

$

$

Currently unavailable

19

Snapper 84012457

KEY

$

$

Currently unavailable

20

Snapper 84012458

SHAFT

$

$

Currently unavailable

21

Snapper 84012459

STRAINER

$

$

Currently unavailable

22

Snapper 84012460

BELT

Note: ( For Clutch )

$

$

Currently unavailable

23

Snapper 84012461

SPRING

$

$

Currently unavailable

24

NUT M12

Note: ( Refer to Note: *)

$

$

Not available

25

NUT M8

Note: ( Refer to Note: *)

$

$

Not available

26

SCREW M10X25

Note: ( Refer to Note: *)

$

$

Not available

27

Snapper 84012462

PLATE

$

$

Currently unavailable

28

Snapper 84012463

STOP

$

$

Currently unavailable

29

NUT M6

Note: ( Refer to Note: *)

$

$

Not available

30

Snapper 84012464

GUIDE

$

$

Currently unavailable

32

Snapper 84012465

HOLDER

$

$

Currently unavailable

33

SCREW M8X25

Note: ( Refer to Note: *)

$

$

Not available

34

NUT M8

Note: ( Refer to Note: *)

$

$

Not available

35

NUT M10

Note: ( Refer to Note: *)

$

$

Not available

36

SCREW M6X20

Note: ( Refer to Note: *)

$

$

Not available

37

NUT M6

Note: ( Refer to Note: *)

$

$

Not available

38

Snapper 84012073

ZERK, Grease Fitting

$

$

Currently unavailable

39

NUT M10

Note: ( Refer to Note: *)

$

$

Not available

40

Snapper 84012406

EYE BOLT

$

$

Currently unavailable

41

Snapper 84012466

PLATE

$

$

Currently unavailable

42

Snapper 84012467

HOLDER

$

$

Currently unavailable

43

Snapper 84012468

BELT

Note: ( Transfer for 120cm Cutting Unit )

$

$

Currently unavailable

44

Snapper 84012469

BELT

Note: ( Transfer for 122cm Cutting Unit )

$

$

Currently unavailable

45

Snapper 84012447

BELT

Note: ( TRACTOR MODELS )

$

$

Currently unavailable
