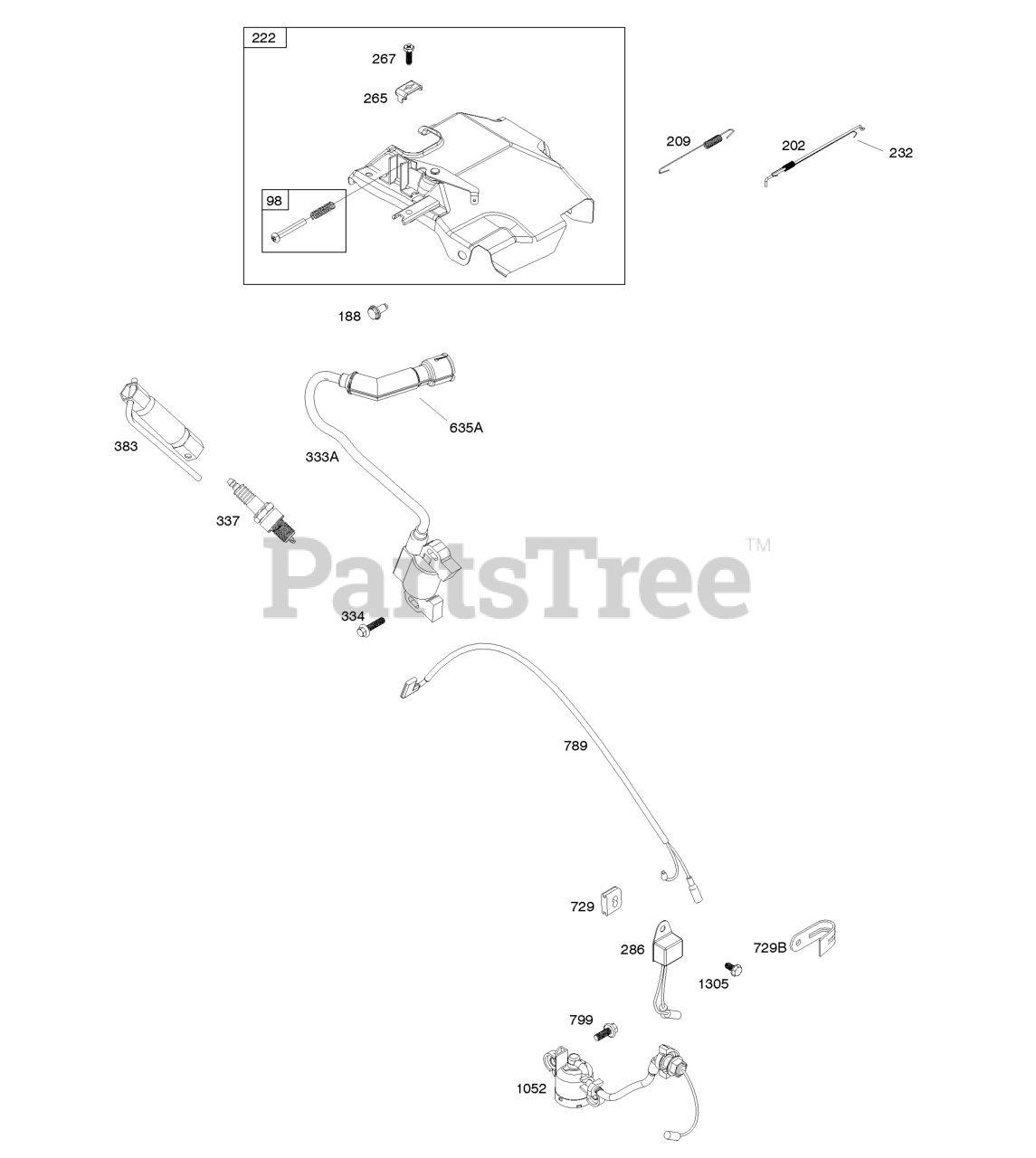

16N132-0002-H1 - Briggs & Stratton Horizontal Engine Controls, Electrical System, Governor Spring, Ignition, Spark Plug Parts Diagram

Horizontal Engine

Controls, Electrical System, Governor Spring, Ignition, Spark Plug Parts Diagram

  • Title

98

Briggs & Stratton 797752

Kit-Idle Speed
(Superseded to 592978)

$11.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 798618

SCREW

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 591834

LINK, Mechanical Governor

$9.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 797843

Spring-Governor

$7.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 591810

Bracket-Control

$45.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 797809

SPRING, Governor Link

$10.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 699492

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 2 left!

0

286

Briggs & Stratton 591729

Module-Oil Sensor

$57.99

$

Usually ships in 2-12 days

0

333A

Briggs & Stratton 798616

Armature-Magneto

$78.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 797655

SCREW

Note: (Magneto Armature)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 798615

PLUG, Spark

$7.49

$

In Stock, Qty 7

0

383

Briggs & Stratton 19605S

Wrench-Spark Plug

$

$

Not available

635A

Briggs & Stratton 797685

BOOT, Spark Plug

$29.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 797750

CLIP, Wire

$5.49

$

Usually ships in 2-12 days

0

729B

Briggs & Stratton 592311

Clip-Wire

$4.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 797856

Harness-Wiring

$16.99

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 797774

Screw

Note: (Oil Sensor)

$3.49

$

Usually ships in 2-12 days

0

1052

Briggs & Stratton 797771

SENSOR, Oil

$61.99

$

Usually ships in 2-12 days

0

1305

Briggs & Stratton 797686

Screw

Note: (Oil Sensor Module)

$4.99

$

Usually ships in 2-12 days

0
