170-C0A-11 - Cub Cadet Engine 170-C0A-11 Carburetor Parts Diagram

Engine

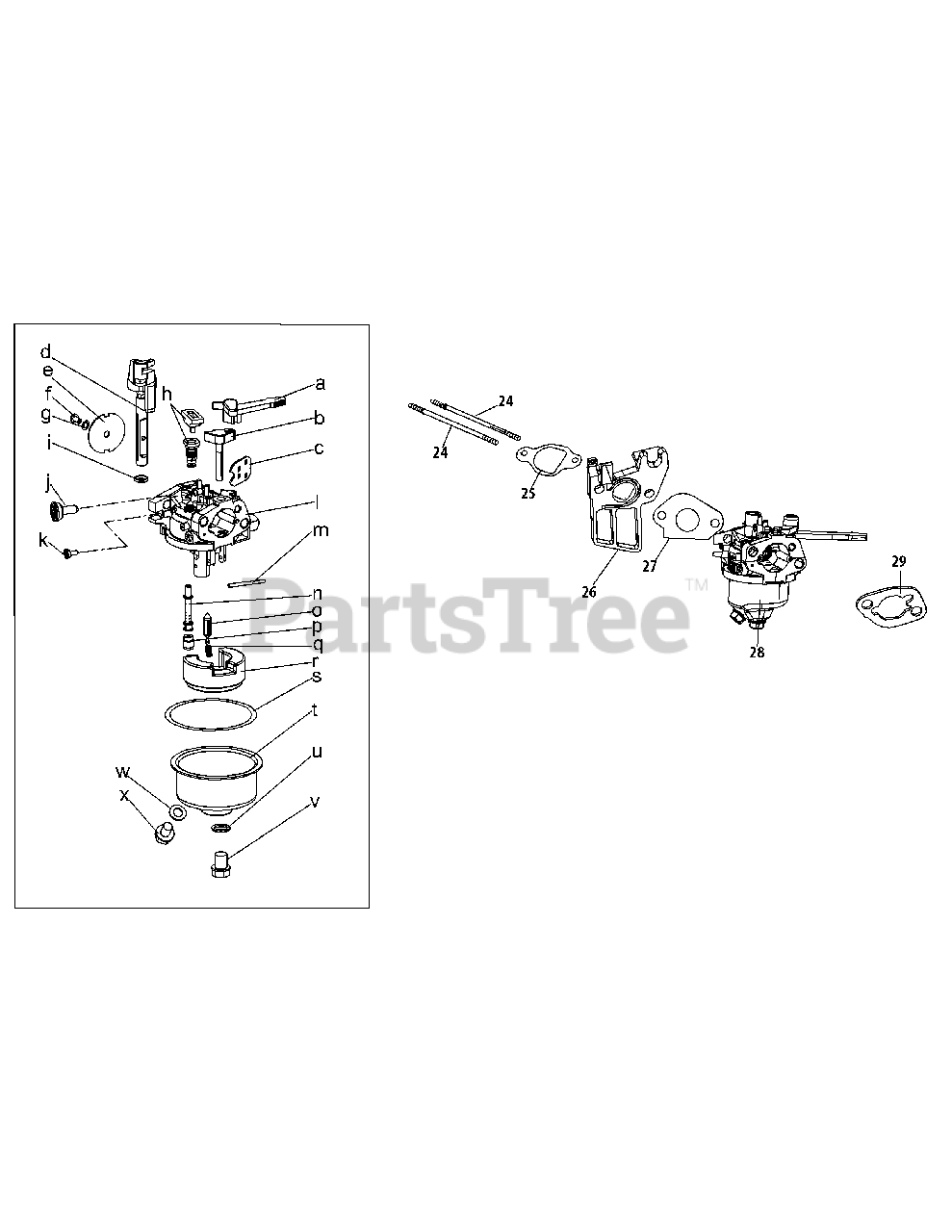

170-C0A-11 Carburetor Parts Diagram

  • Title

24

Cub Cadet 710-05101

Stud M6×110

$3.99

$

In Stock, Qty 8

0

25

Cub Cadet 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

26

Cub Cadet 951-11568

Carburetor Insulator
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 10

0

27

Cub Cadet 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.49

$

In Stock, Qty 20+

0

28

Cub Cadet 951-12124

Carburetor Assembly
(Superseded to 951-12785)

$116.99

$

In Stock, Qty 15

0

29

Cub Cadet 951-11571

Carburetor Gasket Plate

$5.49

$

In Stock, Qty 20+

0

a

Cub Cadet 951-11177

Control Lever,Choke
(Superseded to 951-12515)

$11.99

$

Usually ships in 3-6 days

0

b

Choke Shaft

$

$

Not available

c

Choke Plate

$

$

Not available

d

Throttle Shaft

$

$

Not available

e

Throttle Plate

$

$

Not available

f

Screw M3×5

$

$

Not available

g

Lock Washer

$

$

Not available

h

Idle Jet Assembly

$

$

Not available

i

Gasket, Throttle Plate

$

$

Not available

j

Idle Speed Adjusting Screw

$

$

Not available

k

Mixture Screw

$

$

Not available

l

Carburetor Body

$

$

Not available

m

Float Pin

$

$

Not available

n

Emulsion Tube

$

$

Not available

o

Needle Valve

$

$

Not available

p

Main Jet

$

$

Not available

q

Needle Valve Spring

$

$

Not available

r

Float

$

$

Not available

s

Cub Cadet 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.49

$

In Stock, Qty 20+

0

t

Fuel Bowl

$

$

Not available

u

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.49

$

Usually ships in 3-6 days

0

v

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$3.99

$

In Stock, Qty 8

0

w

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 17

0

x

Cub Cadet 710-04938

Fuel Drain Plug

$3.99

$

In Stock, only 4 left!

0

Cub Cadet 951-12119A

Carburetor Kit - Major

Note: Not shown (Incl.h,I,j,m,n,o,p,q,r,s,u,w)

$57.99

$

In Stock, only 4 left!

0
