170-DU - Cub Cadet Engine 170-DU Cylinder Head Parts Diagram

Engine

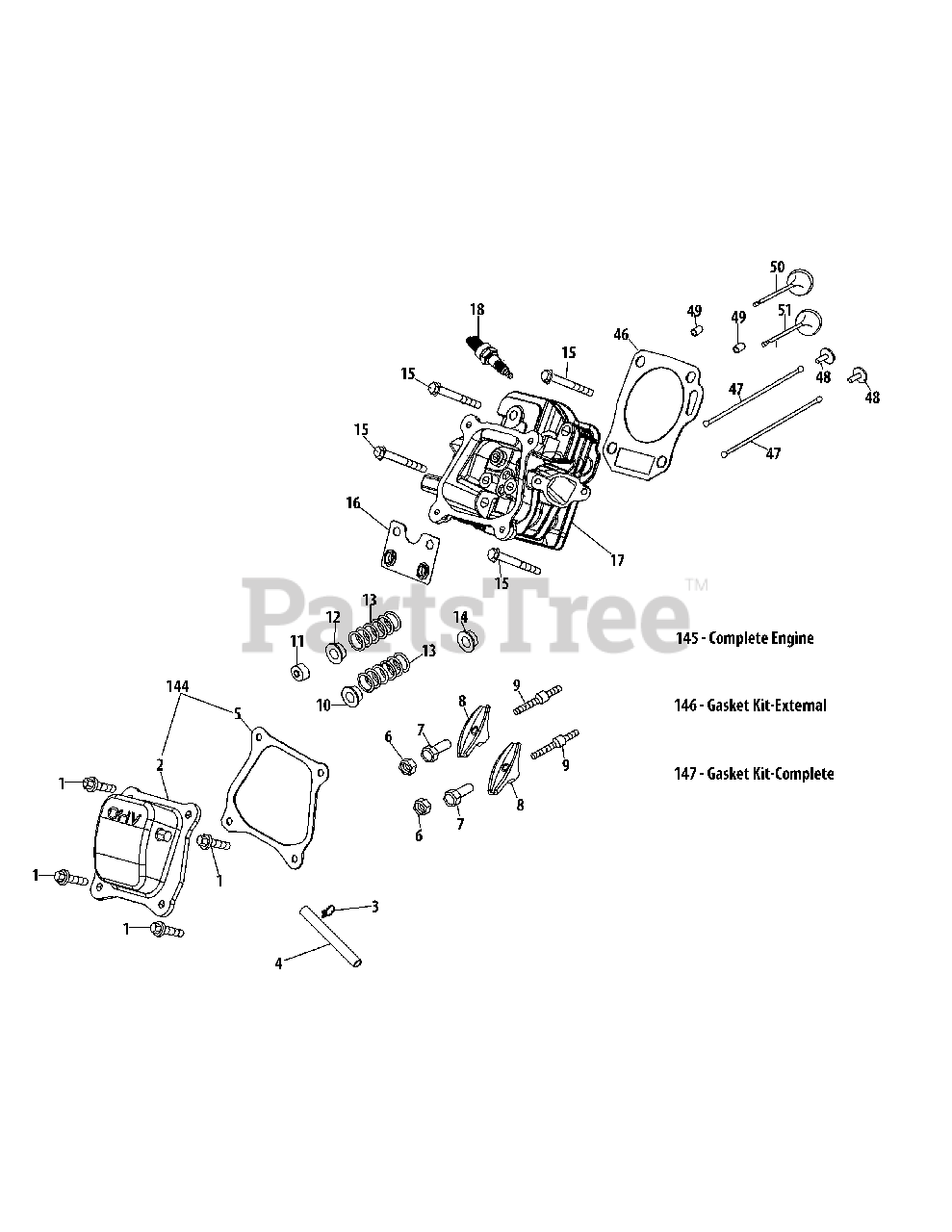

170-DU Cylinder Head Parts Diagram

  • Title

1

Cub Cadet 710-04968

Bolt M6×16

$6.99

$

In Stock, only 2 left!

0

2

Cub Cadet 951-11054B

Valve Cover

$16.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 726-04101

Clamp, Fuel Hose

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet 731-09541

Venting House
(Superseded to 931-09541)

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, only 2 left!

0

6

Cub Cadet 751-11124

Nut, Pivot Locking

$9.99

$

In Stock, only 2 left!

0

7

Cub Cadet 751-11123

Adjusting Nut ,Valve

$10.99

$

In Stock, only 2 left!

0

8

Cub Cadet 951-11893

Rocker Arm

$8.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-04902

Bolt, Pivot

$7.49

$

In Stock, Qty 5

0

10

Cub Cadet 951-12000

Valve Spring Retainer (Intake)

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 951-12002

Exhaust Lash Cap
(Superseded to 751P12002A)

$2.99

$

In Stock, only 2 left!

0

12

Cub Cadet 951-12003

Valve Spring Retainer (Exhaust)

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 951-12004

Valve Spring
(Superseded to 751P12004A)

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet 951-11894

Valve Seal (Intake)

$11.99

$

In Stock, only 2 left!

0

15

Cub Cadet 710-06080

Bolt M8×55

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 951-11895

Push Rod Guide

$9.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 951-05029

Cylinder Head Assembly

Note: (Incl.5-14,16,17,25,28-30,46,50,51)

$178.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 951-14316

Gasket, Cylinder Head

$12.99

$

In Stock, only 1 left!

0

47

Cub Cadet 951-10648

Kit-Push Rod

$18.99

$

In Stock, only 3 left!

0

48

Cub Cadet 951-11899

Tappet

$8.99

$

In Stock, only 4 left!

0

49

Cub Cadet 715-04108

Dowel Pin 10×16

$4.49

$

In Stock, only 2 left!

0

50

Cub Cadet 951-10647A

Valve Kit

$68.99

$

In Stock, only 2 left!

0

51

Cub Cadet 951-10647A

Valve Kit

$68.99

$

In Stock, only 2 left!

0

144

Cub Cadet 951-05033

Valve Cover Kit

$27.99

$

Usually ships in 3-6 days

0

145

Cub Cadet 952Z170-DU

Complete Engine

$715.99

$

Usually ships in 3-6 days

0

146

Cub Cadet 951-12026A

Gasket Kit-External

Note: (Incl.5,25,28-30,32)

$33.99

$

Usually ships in 3-6 days

0

147

Cub Cadet 951-05032

Gasket Kit-Complete

Note: (Incl.5,25,28-30,32,46,63,64,80,86,89)

$62.99

$

In Stock, only 4 left!

0
