170-LU - Cub Cadet Engine 170-LU Flywheel & Blower Housing Parts Diagram

Engine

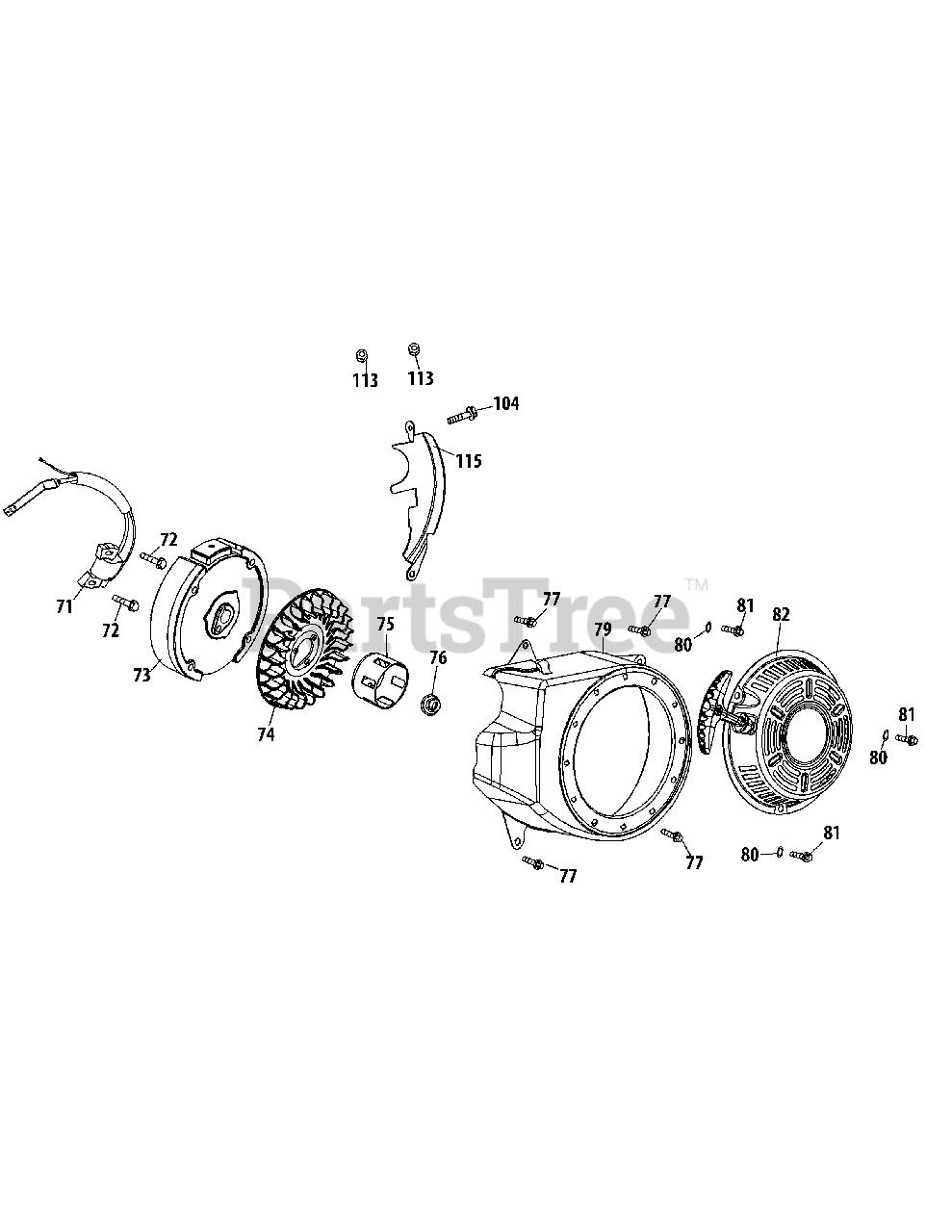

170-LU Flywheel & Blower Housing Parts Diagram

  • Title

71

Cub Cadet 951-10792

Ignition Coil

$89.99

$

In Stock, Qty 5

0

72

Cub Cadet 710-04919

Flange Bolt M6X25

$4.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-10805

Flywheel

$124.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-10934

Cooling Fan
(Superseded to 951-10909A)

$

$

Not available

75

Cub Cadet 951-10911

Starter Cup

$16.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 712-04209

Nut M14
(Superseded to 712-04287)

$6.49

$

In Stock, only 1 left!

0

77

Cub Cadet 710-04915

Bolt:M6X12 Zinc

$4.49

$

In Stock, Qty 8

0

79

Cub Cadet 951-11583

Blower Housing

$89.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 736-04455

Flat Washer
(Superseded to 736-04455B)

$6.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 710-04974

Flange Bolt

$6.49

$

In Stock, only 2 left!

0

82

Cub Cadet 951-12418

Recoil Starter Assembly

$83.99

$

In Stock, Qty 10

0

113

Cub Cadet 712-05015

Nut, M6

$6.49

$

In Stock, only 4 left!

0

114

Cub Cadet 710-04918

Bolt M6×20

$3.99

$

Usually ships in 3-6 days

0

115

Cub Cadet 951-14138

Blower Housing Shield
(Superseded to 951-14138A)

$4.99

$

Usually ships in 3-6 days

0
