170-NU - Cub Cadet 280cc Engine 170-NU Cylinder Head Parts Diagram

280cc Engine

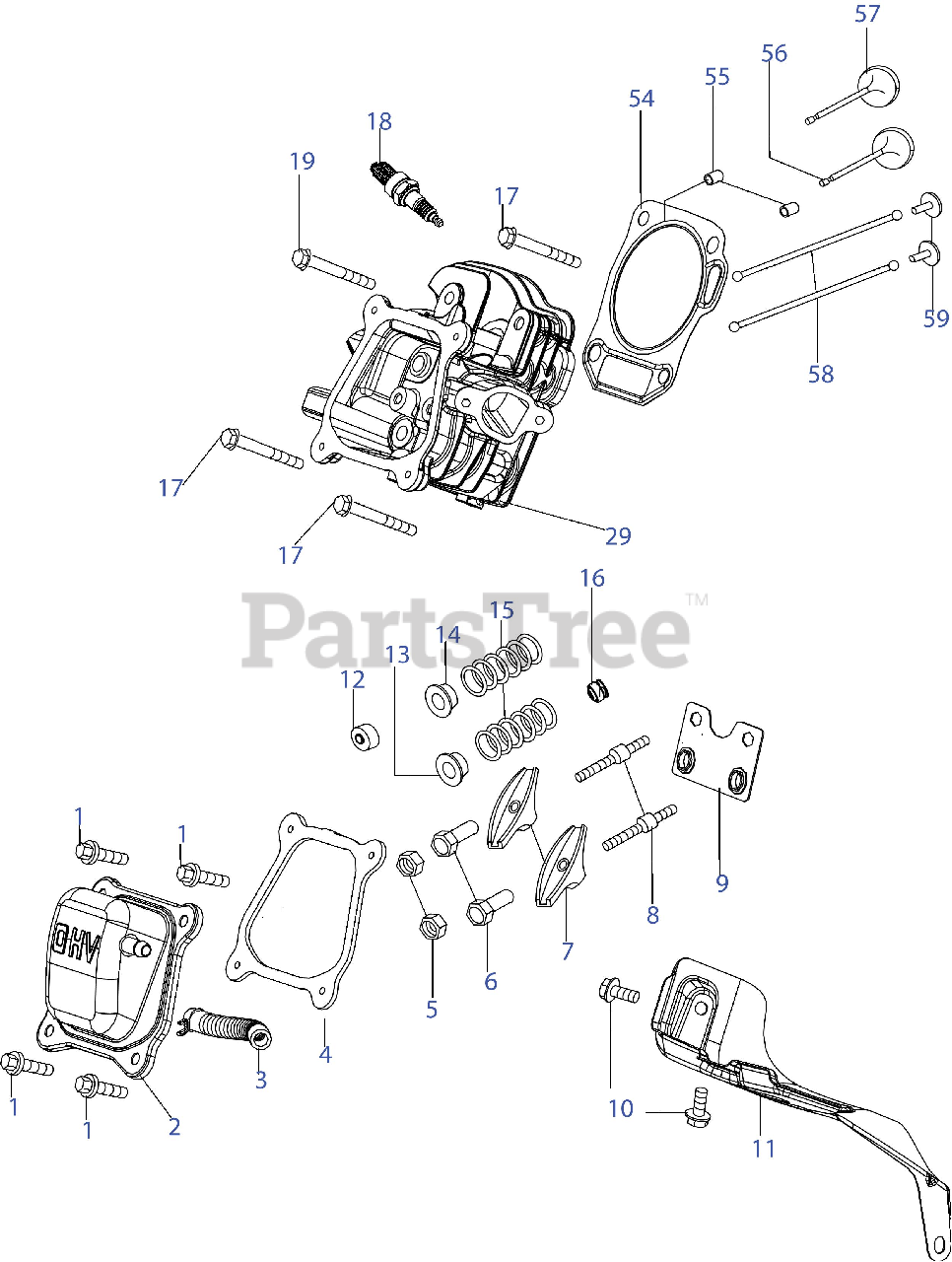

170-NU Cylinder Head Parts Diagram

  • Title

1

Cub Cadet 710-04968

Bolt M6x16

$6.49

$

In Stock, only 3 left!

0

2

Cub Cadet 951-11054B

Cylinder Head Cover

$14.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-15045

Venting House

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 951-11565

Gasket, Valve Cover
(Superseded to 751P11565B)

$9.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 751-11124

Lock Nut

$8.99

$

In Stock, Qty 6

0

6

Cub Cadet 751-11123

Nut

$9.99

$

In Stock, Qty 10

0

7

Cub Cadet 951-11893

Rocker Arm

$7.49

$

In Stock, only 1 left!

0

8

Cub Cadet 710-04902

Rocker Arm Stud

$6.49

$

In Stock, Qty 12

0

9

Cub Cadet 951-11895

Rocker Arm Base

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04915

Bolt M6x12

$4.49

$

In Stock, Qty 10

0

11

Cub Cadet 951-11113

Shroud

$8.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 951-12002

Rotator,Exhaust Valve
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

13

Cub Cadet 951-12000

Intake Valve Spring Seat

$3.99

$

In Stock, only 1 left!

0

14

Cub Cadet 951-12003

Exhaust Valve Spring Seat

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-12004

Spring Valve
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 7

0

16

Cub Cadet 921-04705

Oil Seal,Valve

$5.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-06080

Flange Bolt M8x60

$5.99

$

In Stock, only 1 left!

0

18

Cub Cadet 951-10292

Spark Plug(F6Rtc)
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-06384

Flange Bolt M8x70

$5.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 951-15047

Cylinder Head

$134.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 951-11572

Gasket,Cylinder Head

$11.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 951-04090

Dowel Pin 10x16

$3.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 951-14099

Valve Intake
(Superseded to 751P14099A)

$3.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 951-15048

Valve Exhaust

$13.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-15060

Push Rod

$10.99

$

In Stock, only 1 left!

0

59

Cub Cadet 951-11899

Tappet

$7.99

$

In Stock, Qty 6

0

Cub Cadet 952Z170-NU

Complete Engine

$658.99

$

Usually ships in 3-6 days

0
