170-NU - Troy-Bilt 280cc Engine 170-NU Carburetor Parts Diagram

280cc Engine

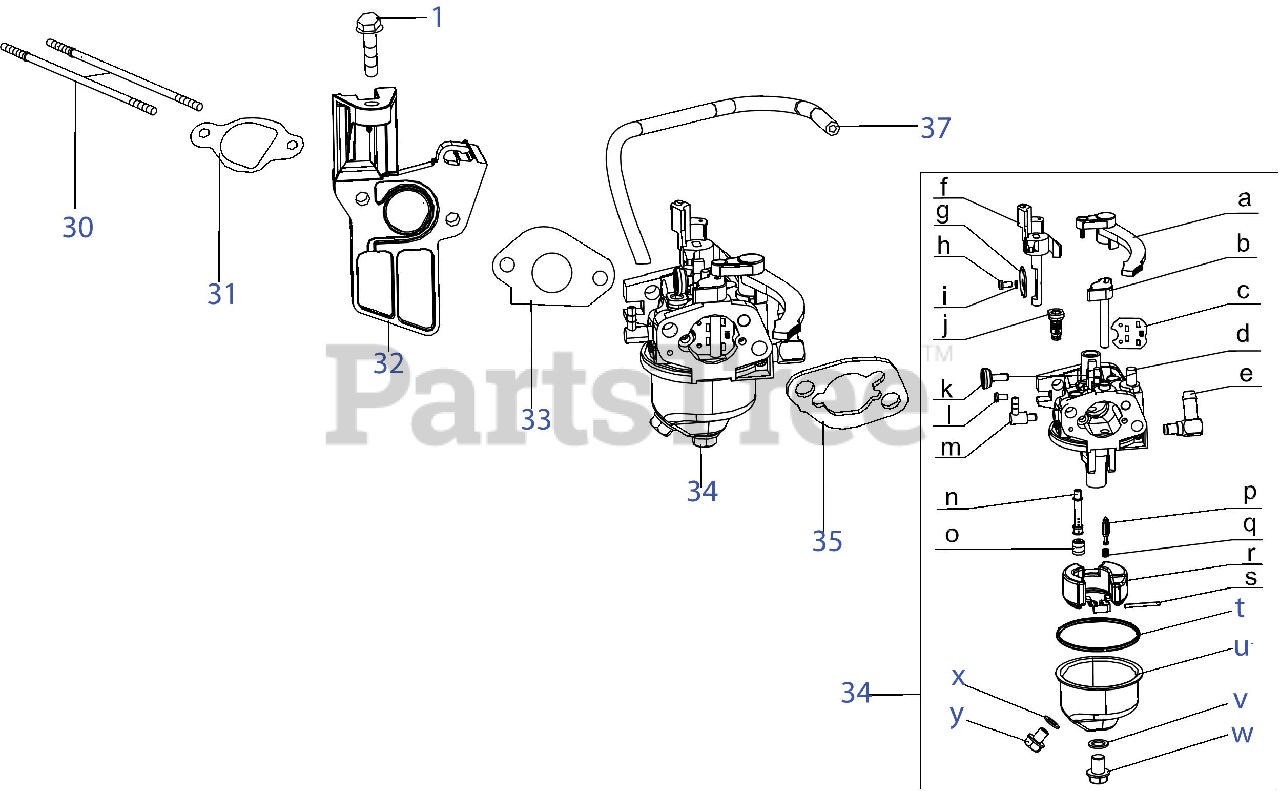

170-NU Carburetor Parts Diagram

  • Title

1

Troy-Bilt 710-04968

Bolt M6x16

$6.49

$

In Stock, only 3 left!

0

30

Troy-Bilt 710-05101

Stud M6x110

$3.99

$

In Stock, Qty 8

0

31

Troy-Bilt 951-11567

Gasket, Carburetor Insulator
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 951-15032

Carburetor Insulator

$6.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 951-05288

Carburetor

$105.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 951-11571

Gasket,Air Cleaner

$5.49

$

In Stock, Qty 16

0

37

Troy-Bilt 951-14983

Fuel Hose 3.2x6.5x240

$7.99

$

Usually ships in 3-6 days

0

a

Choke Lever

$

$

Not available

b

Gasket

$

$

Not available

c

Choke Plate

$

$

Not available

d

Carburetor Body

$

$

Not available

e

Inlet Tube Assembly

$

$

Not available

f

Throttle Plate

$

$

Not available

g

Throttle Plate

$

$

Not available

h

Bolt M3x6

$

$

Not available

i

Washer 3

$

$

Not available

j

Idle Jet

$

$

Not available

k

Idle Speed Adjusting Screw

$

$

Not available

l

Mixture Screw

$

$

Not available

m

Primer Pipe

$

$

Not available

n

Nozzle Tube

$

$

Not available

o

Main Jet

$

$

Not available

p

Needle Valve

$

$

Not available

q

Needle Valve Spring

$

$

Not available

r

Float

$

$

Not available

s

Float Pin

$

$

Not available

t

O-Ring, Float Bowl

$

$

Not available

u

Troy-Bilt 908-05000

Float Bowl

$

$

Not available

v

Troy-Bilt 951-11348

O-Ring, Float Bowl
(Superseded to 951-11348A)

$5.49

$

Usually ships in 3-6 days

0

w

Troy-Bilt 710-04945

Bolt, Float Bowl

$3.99

$

In Stock, Qty 8

0

x

Troy-Bilt 951-11349

Gasket, Drain Bolt
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 15

0

y

Troy-Bilt 710-04938

Drain Bolt

$3.99

$

In Stock, only 4 left!

0
