170-PU - MTD Engine 170-PU Cylinder Head Parts Diagram

Engine

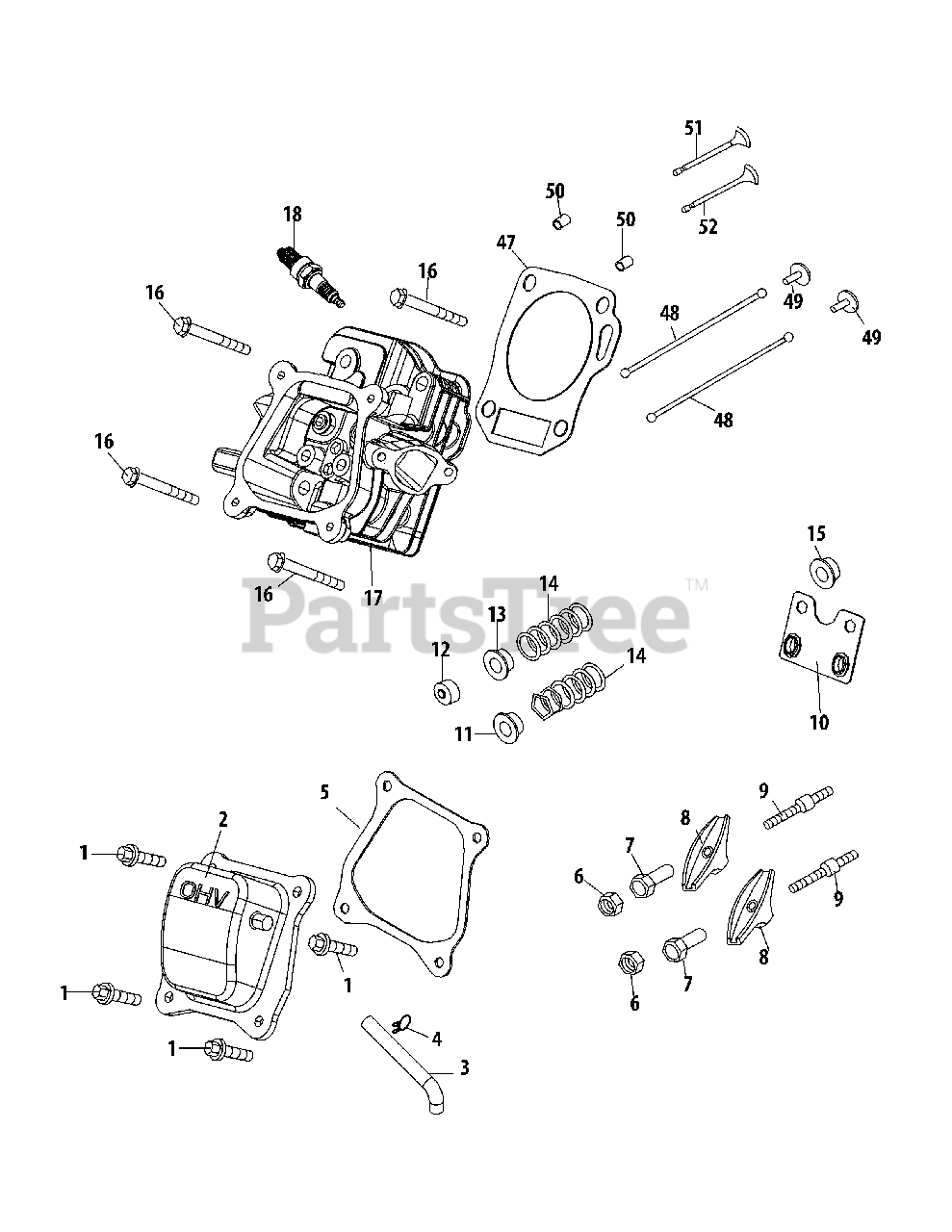

170-PU Cylinder Head Parts Diagram

  • Title

1

MTD 710-04968

Bolt M6×16

$6.49

$

In Stock, only 3 left!

0

2

MTD 951-11054B

Valve Cover

$14.99

$

Usually ships in 3-6 days

0

3

MTD 931-09541

Exhaust Piping

$5.99

$

Usually ships in 3-6 days

0

4

MTD 726-04101

Breather Hose Clamp

$4.49

$

In Stock, only 1 left!

0

5

MTD 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$9.99

$

Usually ships in 3-6 days

0

6

MTD 751-11124

Nut, Pivot Locking

$8.99

$

In Stock, Qty 6

0

7

MTD 751-11123

Adjusting Nut, Valve

$9.99

$

In Stock, Qty 10

0

8

MTD 951-11893

Rocker Arm

$7.49

$

In Stock, only 1 left!

0

9

MTD 710-04902

Bolt, Pivot

$6.49

$

In Stock, Qty 12

0

10

MTD 951-11895

Push Rod Guide

$8.49

$

Usually ships in 3-6 days

0

11

MTD 951-12000

Valve Spring Retainer (Intake)

$3.99

$

In Stock, only 1 left!

0

12

MTD 951-12002

Exhaust Lash Cap
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

13

MTD 951-12003

Valve Spring Retainer (Exhaust)

$3.99

$

Usually ships in 3-6 days

0

14

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 7

0

15

MTD 951-11894

Valve Seal (Intake)

$10.99

$

In Stock, only 1 left!

0

16

MTD 710-06080

Bolt M8×55

$5.99

$

In Stock, only 1 left!

0

17

MTD n/a

Cylinder Head

$

$

Currently unavailable

18

MTD 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

47

MTD 951-14316

Gasket, Cylinder Head

$11.99

$

Usually ships in 3-6 days

0

48

MTD 951-14105

Push Rod
(Superseded to 751P14105A)

$2.99

$

Usually ships in 3-6 days

0

49

MTD 951-11899

Tappet

$7.99

$

In Stock, Qty 6

0

50

MTD 951-04090

Dowel Pin 10×16

$3.99

$

Usually ships in 3-6 days

0

51

MTD 951-14100

Exhaust Valve
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0

52

MTD 951-14099

Intake Valve
(Superseded to 751P14099A)

$3.99

$

Usually ships in 3-6 days

0
