1700 A - Weed Eater String Trimmer ENGINE BLOCK, & SHROUD Parts Diagram

String Trimmer

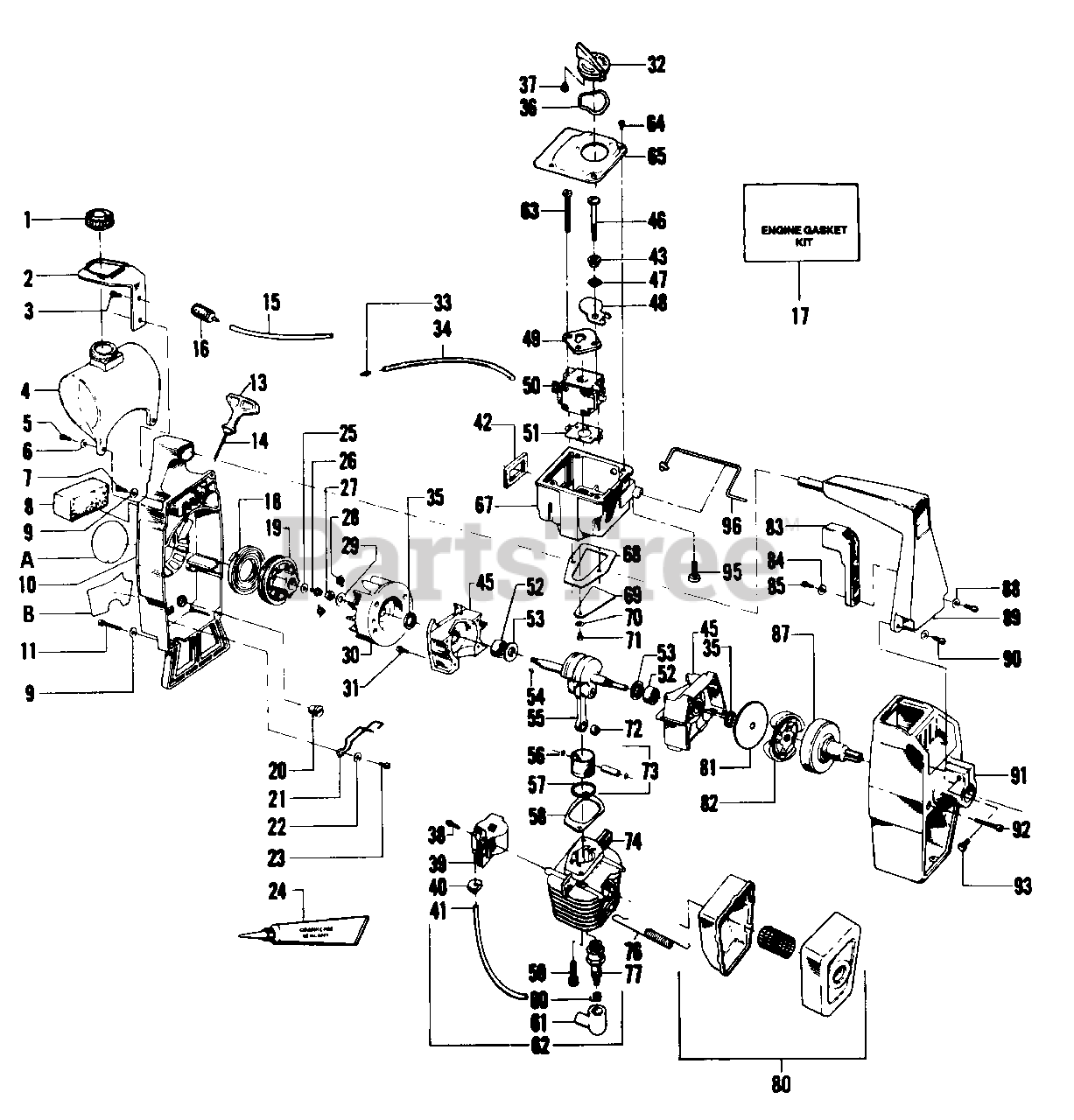

ENGINE BLOCK, & SHROUD Parts Diagram

  • Title

1

Poulan 530010729

Fuel Cap Assembly (Inc. O-Ring)
(Superseded to 530014347)

$8.99

$

In Stock, Qty 5

0

2

Poulan 530025377

Bracket-Fuel Line

$

$

Not available

3

Poulan 530092243

Screw-Bracket Handle (#1/4-10x1-1/8")
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

4

Poulan 530010887

Fuel Tank Ass'y. (Inc. #1, 15 & 16)

$

$

Not available

5

Poulan 530015509

Screw-Fuel Tank Fan Hsg. (#10x1")

$3.99

$

In Stock, only 2 left!

0

6

Poulan 530015158

Washer-Fuel Tank Fan Hsg. #10
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

7

Poulan 530015168

Screw-Fan Hsg. Top #10-24x5/8" Fil. hd.

$

$

Not available

8

Poulan 530024371

Air Filter

$7.49

$

In Stock, only 1 left!

0

9

Poulan 530015274

Washer-Flat-#10-Fan hsg.

$0.99

$

Usually ships in 3-10 days

0

10

Poulan 530010891

Fan Housing Ass'y.

$24.99

$

In Stock, only 1 left!

0

11

Poulan 530015305

Screw-Fan Housing-Bottom #10-24x1-3/16" Fil.

$1.99

$

Usually ships in 3-10 days

0

13

Poulan 530026735

Starter-Handle
(Superseded to 530027569)

$6.49

$

In Stock, only 2 left!

0

14

Poulan 530069231

Rope Kit

$

$

Not available

15

Poulan 530069247

Line Kit

$6.49

$

In Stock, Qty 20+

0

16

Poulan 530010897

Fuel Pick-Up Ass'y.
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 530069219

Engine Gasket Kit (Inc.35,42,51,58,68)

$

$

Not available

18

Poulan 530042067

Starter-Recoil Spring
(Superseded to 545008009)

$8.49

$

Usually ships in 3-10 days

0

19

Poulan 530026048

Starter-Pulley

$

$

Not available

20

Poulan 530026679

Button-Kill Switch

$

$

Not available

21

Poulan 530026559

Spring-Kill Switch

$

$

Not available

22

Poulan 530015382

Washer-Kill Switch

$

$

Not available

23

Poulan 530015407

Screw-Kill Switch (#8-16x3/8")

$

$

Not available

24

Poulan 530030054

Crankcase Sealant-3 oz. tube (Optional)

$

$

Not available

25

Poulan 530015123

Washer-Starter Pulley

$4.99

$

In Stock, only 4 left!

0

26

Poulan 530015479

Screw-Starter Pulley (#10-24x3/4" Hex Hd.)
(Superseded to 530071620)

$34.99

$

In Stock, Qty 13

0

27

Poulan 530626605

Nut-Flywheel

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530042059

Spring-Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

29

Poulan 530015127

Washer-Flywheel

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530039114

Flywheel-Ass'y. (Inc. #28)

$

$

Not available

31

Poulan 530015168

Screw-Crankcase (#10-24x5/8" Fil.)

$

$

Not available

32

Poulan 530027101

Choke Knob

$

$

Not available

33

Poulan 530026981

Fitting-Fuel Line

$6.49

$

In Stock, Qty 9

0

34

Poulan 530021073

Fuel Line-Carburetor

$

$

Not available

35

Poulan 530019059

Seal-Crankshaft

$

$

Not available

36

Poulan 530015741

Wave Washer

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 530015740

Screw

$2.49

$

Usually ships in 3-10 days

0

38

Poulan 530015128

Screw-Ignition Module (#8-32x3/4" Sems)
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530069181

Ignition Module Kit (Inc. 21)

$

$

Not available

40

Poulan 530024435

Grommet-Plug Wire

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530039082

Lead Wire-High Tension

$

$

Not available

42

Poulan 530019105

Seal-Carburetor Case

$

$

Not available

43

Poulan 530015673

Spacer

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 530010757

Crankcase Ass'y. (Inc. #35, 52 and Qty 4 of 31)

$

$

Not available

46

Poulan 530015630

Screw-Carburetor

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

48

Poulan 530026772

Shutter-Choke

$

$

Not available

49

Poulan 530026797

Plate-Guide, Choke Wire

$

$

Not available

50

Poulan 530035183

Carburetor-WA-149

$

$

Not available

51

Poulan 530019157

Gasket-Carburetor

$

$

Not available

52

Poulan 530032029

Bearing-Crankshaft

$10.99

$

In Stock, only 4 left!

0

53

Poulan 530015351

Thrust Washer-Crankshaft

$6.49

$

Usually ships in 3-10 days

0

54

Poulan 530015126

Key-Flywheel

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530010844

Crankshaft & Rod Assembly

$

$

Not available

56

Poulan 530015162

Retainer-Wrist Pin

$6.49

$

Usually ships in 3-10 days

0

57

Poulan 530026681

Piston Ring

$

$

Not available

58

Poulan 530019111

Gasket-Cylinder
(Superseded to 530069219)

$

$

Not available

59

Poulan 530015239

Screw-Cylinder (#1/4-20x3/4" Soc. Hd.)

$2.49

$

Usually ships in 3-10 days

0

60

Poulan 530003933

Connector-Spark Plug
(Superseded to 507475326)

$

$

Not available

61

Poulan 530003934

Boot-Spark plug

$

$

Not available

62

Poulan 502039103

BEVEL GEAR COMPLETE
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

Poulan 530039103

HIGH TENSION LEAD NLA

$

$

Not available

63

Poulan 530015674

Screw-Carburetor

$1.99

$

Usually ships in 3-10 days

0

64

Poulan 530015235

Screw-Carburetor Cover (#8-18x9/16")

$

$

Not available

65

Poulan 530027100

Cover-Carburetor Case

$

$

Not available

67

Poulan 530027189

Carburetor Case Ass'y.

$

$

Not available

68

Poulan 530019108

Gasket-Carburetor Case Crankcase

$4.99

$

Usually ships in 3-10 days

0

69

Poulan 530024438

Reed Valve

$

$

Not available

70

Poulan 530023367

Washer-Reed Valve

$

$

Not available

71

Poulan 530015241

Screw-Reed Valve (#6-19x5/16")

$3.99

$

Usually ships in 3-10 days

0

72

Poulan 530032057

Bearing-Wrist Pin

$

$

Not available

73

Poulan 530069241

Piston Kit (Inc. 56, 57, & Pin)

$

$

Not available

74

Poulan 530012191

Cylinder

$

$

Not available

76

Poulan 530024903

Spring-Muffler Attachment
(Superseded to 530036409)

$

$

Not available

77

Poulan 530030077

Spark Plug (CJ-14)

$

$

Not available

80

Poulan 530069243

Muffler Ass'y.

$

$

Not available

81

Poulan 530069196

Kit-Washer-Clutch

$

$

Not available

82

Poulan 530069194

Kit-Clutch-Assembly (Inc. Washer)

$21.99

$

Usually ships in 3-10 days

0

83

Poulan 530025342

Trigger-Throttle

$

$

Not available

84

Poulan 530015382

Washer-Throttle

$

$

Not available

85

Poulan 530015407

Screw-Throttle (#8-16x3/8")

$

$

Not available

87

Poulan 530010796

Drum and Coupling Assembly

$

$

Not available

88

Poulan 530015274

Washer-Flat-#10 Shroud

$0.99

$

Usually ships in 3-10 days

0

89

Poulan 530025704

Handle

$

$

Not available

90

Poulan 530015163

Screw-Shroud (Top)-#10-24x7/8"

$2.49

$

Usually ships in 3-10 days

0

91

Poulan 530012096

Shroud

$

$

Not available

92

Poulan 530015376

Screw-Shroud (Bottom)-#10-24x1-1/2" Fil.

$

$

Not available

93

Poulan 530093802

BOLT

$

$

Not available

Poulan 506093802

HAND GUARD

$

$

Not available

95

Poulan 530015723

Screw

$

$

Not available

96

Poulan 530027190

Throttle Wire

$

$

Not available

A

Poulan 530027312

Decal-Starting Instructions

$

$

Not available

B

Poulan 530027638

Decal-Choke/OFF

$

$

Not available

Poulan 530027693

Decal-Shroud (Right) 1700A w/ Blade

$

$

Not available

Poulan 530027656

Decal-Shroud (Right) 1700A w/o Blade

$

$

Not available

Poulan 530027694

Decal-Shroud (Left) 1700A w/ Blade

$

$

Not available

Poulan 530027657

Decal-Shroud (Left) 1700A w/o Blade

$

$

Not available
