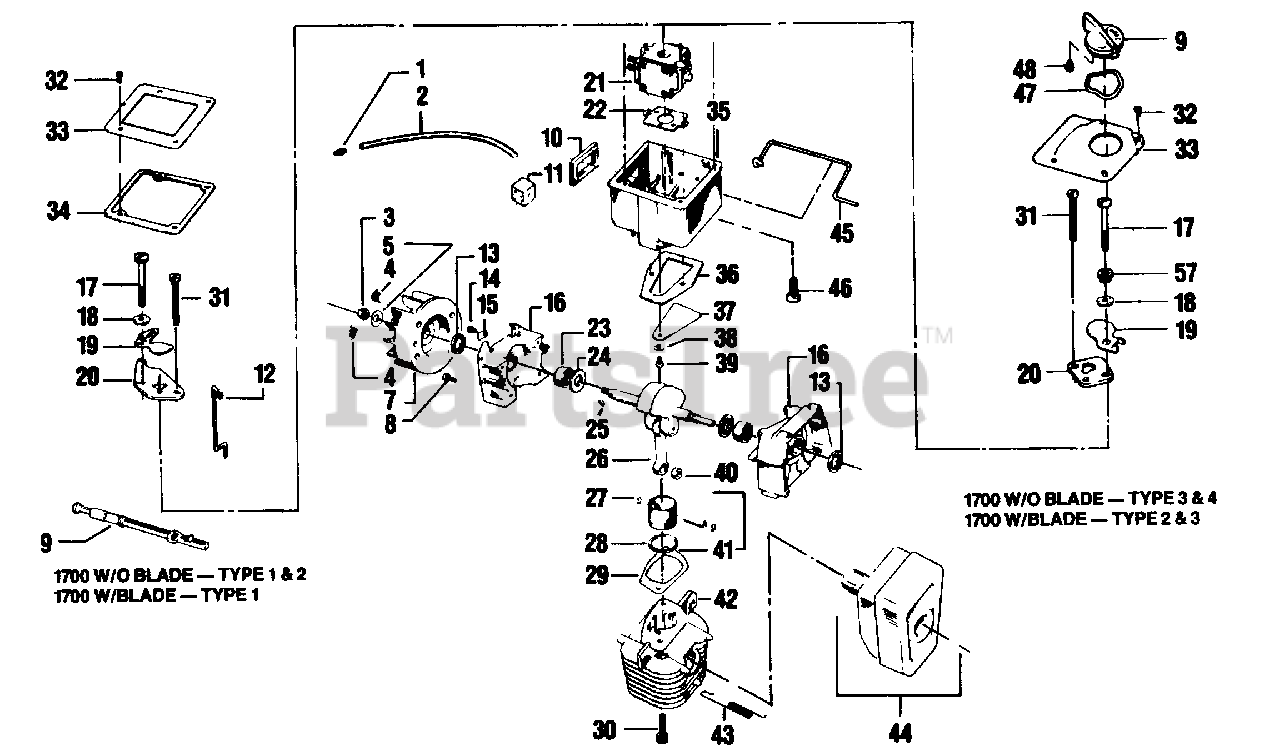

1700 - Weed Eater String Trimmer ENGINE BLOCK Parts Diagram

String Trimmer

ENGINE BLOCK Parts Diagram

  • Title

1

Fuel Line Fitting

$

$

Not available

1

Poulan 530025472

1700 w/o Blade - Type 1 & 2 1700 w/Blade - Type 1

$3.99

$

In Stock, only 2 left!

0

1

Poulan 530026981

1700 w/o Blade - Type 3 & 4 1700 w/Blade - Type 2 & 3

$6.49

$

In Stock, Qty 9

0

2

Fuel Line - Carburetor (Bulk 8150)

$

$

Not available

2

Poulan 530021044

1700 w/o Blade - Type 1 & 2 1700 w/Blade - Type 1

$

$

Not available

2

Poulan 530021073

1700 w/o Blade - Type 3 & 4 1700 w/Blade - Type 2 & 3

$

$

Not available

3

Poulan 530626605

Nut - Flywheel (5/16 x 24)

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

5

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 530039114

Flywheel Ass'y (Inc. #5)

$

$

Not available

8

Poulan 530015369

Screw - Crankcase

$

$

Not available

9

Knob - Choke

$

$

Not available

9

Poulan 530024303

1700 w/o Blade - Type 1 & 2 1700 w/Blade - Type 1

$

$

Not available

9

Poulan 530027101

1700 w/o Blade - Type 3 & 4 1700 w/Blade - Type 2 & 3

$

$

Not available

10

Poulan 530019105

Seal - Carburetor Case

$

$

Not available

11

Poulan 530023373

Boot - Choke Wire

$

$

Not available

12

Wire - Choke

$

$

Not available

12

1700 w/o Blade - Type 1 - See Service Ref. 4.

$

$

Not available

12

Poulan 530026236

1700 w/o Blade - Type 2; 1700 w/Blade - Type1

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530019059

Seal - Crankshaft

$

$

Not available

14

Poulan 530015004

Screw - Clamp

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530024651

Clamp - Choke Wire

$

$

Not available

16

Poulan 530010757

Crankcase Ass'y (Inc. #13,23 & Qty. 10 of #8)

$

$

Not available

17

Screw

$

$

Not available

17

Poulan 530015404

1700 w/o Blade - Type 1 & 2; 1700 w/Blade - Type 1

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530015630

1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

19

Shutter - Choke

$

$

Not available

19

Poulan 530024558

1700 w/o Blade - Type 1 & 2; 1700 w/Blade - Type 1

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530026772

1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3

$

$

Not available

20

Guide Plate

$

$

Not available

20

1700 w/o Blade - Type 1 - See Service Ref. 4.

$

$

Not available

20

Poulan 530026237

1700 w/o Blade - Type 2; 1700 w/Blade - Type1

$

$

Not available

20

Poulan 530026797

1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3

$

$

Not available

21

Poulan 530035183

Carburetor (for Type 1) - See Service Ref. 2.

$

$

Not available

22

Poulan 530019115

Gasket - Carburetor

$

$

Not available

23

Poulan 530032029

Bearing - Crankshaft

$10.99

$

In Stock, only 4 left!

0

24

Poulan 530015351

Thrust Washer - Crankshaft

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 530015126

Key - Flywheel

$3.99

$

Usually ships in 3-10 days

0

26

Crankshaft & Rod Ass'y.

$

$

Not available

26

Poulan 530026675

1700 w/o Blade - Type 1,2 & 3; 1700 w/Blade - Type 1 & 2

$121.99

$

Usually ships in 3-10 days

0

26

Poulan 530010844

1700 w/o Blade - Type 4; 1700 w/Blade - Type3

$

$

Not available

27

Poulan 530015162

Retainer - Wrist Pin

$6.49

$

Usually ships in 3-10 days

0

28

Piston Ring

$

$

Not available

28

Poulan 530024302

1700 w/o Blade - Type 1

$

$

Not available

28

Poulan 530024929

1700 w/o Blade - Type 2 & 3; 1700 w/Blade - Type 1 & 2

$

$

Not available

28

Poulan 530026681

1700 w/o Blade - Type 4; 1700 w/Blade - Type 3

$

$

Not available

29

Poulan 530019111

Gasket - Cylinder
(Superseded to 530069219)

$

$

Not available

30

Poulan 530015239

Screw - Cylinder (#1/4 - 20 x 3/4" Socket Hd)

$2.49

$

Usually ships in 3-10 days

0

31

Screw

$

$

Not available

31

Poulan 530015379

1700 w/o Blade - Type 1 & 2; 1700 w/Blade - Type 1

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530015674

1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3

$1.99

$

Usually ships in 3-10 days

0

32

Poulan 530015235

Screw - Carburetor Cover - #8 - 18x9/16"

$

$

Not available

33

Cover - Carburetor Case

$

$

Not available

33

1700 w/o Blade - Type 1 See Service reference

$

$

Not available

33

Poulan 530026029

1700 w/o Blade - Type 2; 1700 w/Blade - Type 1

$

$

Not available

33

Poulan 530027100

1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3

$

$

Not available

34

Poulan 530019112

Gasket - Carburetor Case Cover - See Service Ref. 4.

$

$

Not available

35

Poulan 530010453

Carburetor Case Assembly

$

$

Not available

36

Poulan 530019108

Gasket - Carburetor Case/Crankcase

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530024438

Reed Valve

$

$

Not available

38

Poulan 530023367

Washer - Reed Valve

$

$

Not available

39

Poulan 530015241

Screw - Reed Valve - (#6 - 19 x 5/16")

$3.99

$

Usually ships in 3-10 days

0

40

Bearing - Wrist Pin

$

$

Not available

40

Poulan 530032057

1700 w/o Blade - Type 1,2 & 3; 1700 w/Blade - Type 1 & 2

$

$

Not available

40

Poulan 530032092

1700 w/o Blade - Type 4; 1700 w/Blade - Type 3

$9.99

$

Usually ships in 3-10 days

0

41

Piston Kit

$

$

Not available

41

Poulan 530022198

1700 w/o Blade - Type 1

$

$

Not available

41

Poulan 530022238

1700 w/o Blade - Type 2 & 3; 1700 w/Blade - Type 1 & 2

$

$

Not available

41

Poulan 530069241

1700 w/o Blade - Type 4; 1700 w/Blade - Type 3

$

$

Not available

42

Cylinder

$

$

Not available

42

Poulan 530012070

1700 w/o Blade - Type 1

$

$

Not available

42

Poulan 530012071

1700 w/o Blade - Type 2,3 & 4; 1700 w/Blade - Type 1,2 & 3

$

$

Not available

42

Poulan 530012191

1700 w/Blade & 1700 w/o Blade

$

$

Not available

43

Poulan 530024903

Spring - Muffler Attachment
(Superseded to 530036409)

$

$

Not available

44

Muffler Ass'y - See Service Ref. 8.

$

$

Not available

45

Poulan 530027190

Throttle Wire - 1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3

$

$

Not available

46

Poulan 530015723

Screw - 1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3

$

$

Not available

47

Poulan 530015741

Wave Washer - 1700 w/o Blade - Type 3 & 4; 1700 w/Blade - Type 2 & 3

$2.49

$

Usually ships in 3-10 days

0

48

Poulan 530015740

Screw 1700 w/o Blade - Type 3 & 4 1700 w/Blade - Type 2 & 3

$2.49

$

Usually ships in 3-10 days

0

57

Poulan 530015673

Spacer - 1700 w/o Blade - Type 3 & 4;

$3.99

$

Usually ships in 3-10 days

0

57

, 1700 w/Blade - Type 2 & 3

$

$

Not available

58

Poulan 530069219

Engine Gasket Kit (Inc.10,13,22,29,34,36,)

$

$

Not available
