17005 - Toro Walk-Behind Mower, Electric (SN: 006000001 - 006999999) (1976) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower, Electric

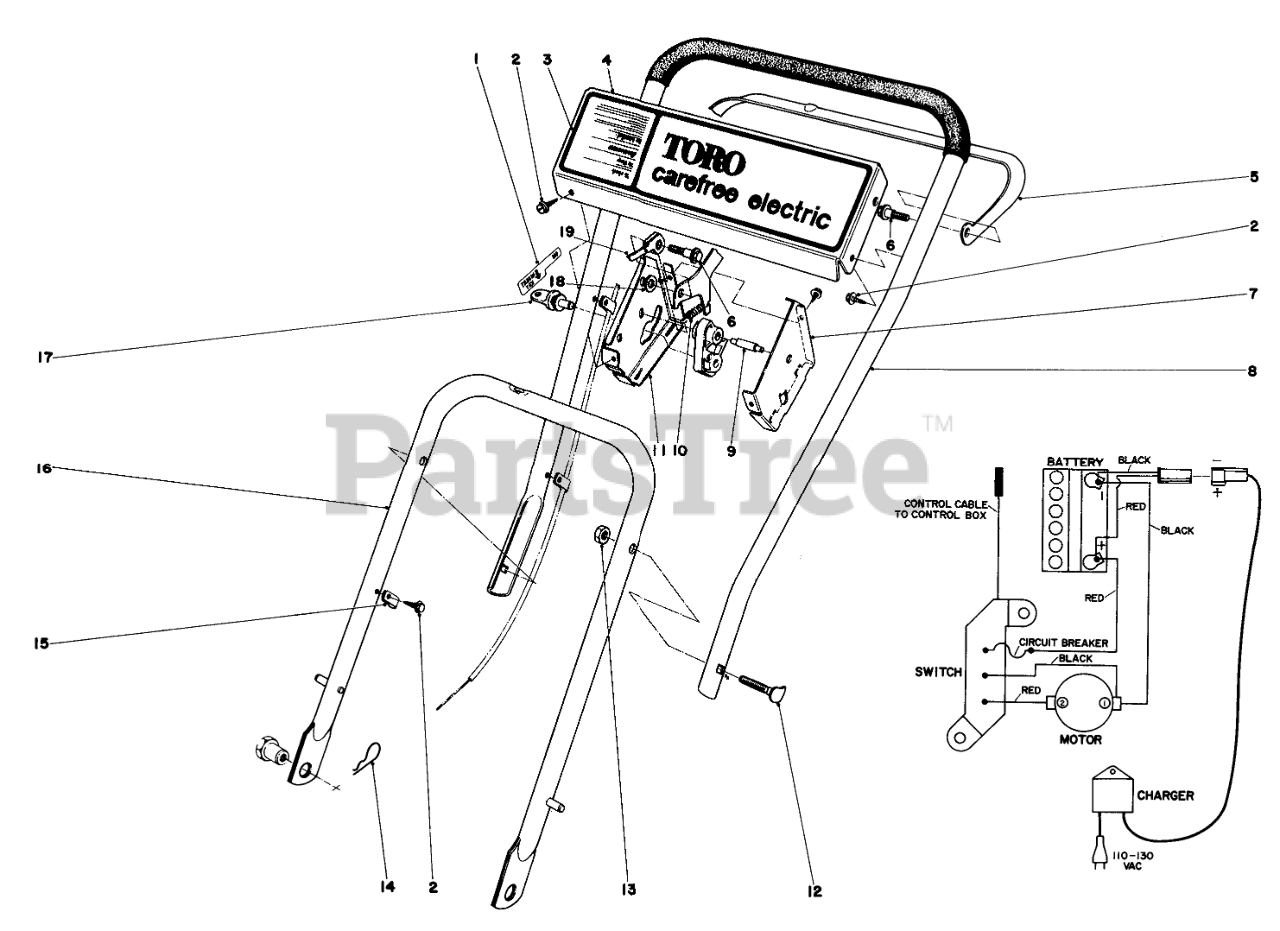

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 26-5120

Decal, Control Box

$

$

Not available

2

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Toro 26-0190

Decal, Control Plate

$

$

Not available

4

Toro 264180

Control Panel

$

$

Currently unavailable

5

Toro 26-0300

Squeeze Lever

$

$

Not available

6

Toro 26-5620

Shoulder Bolt
(Superseded to 43-7260)

$18.99

$

Usually ships in 3-6 days

0

7

Toro 26-0240

Cover Control Box

$

$

Not available

8

Toro 26-0260

Upper Handle

$

$

Not available

9

Toro 26-5020

Actuator Shaft

$

$

Not available

10

Toro 26-5610

Spring Extension

$

$

Not available

11

Toro 26-0230

Control Box

$

$

Not available

12

Toro 6-6330

HANDLE SCREW

$

$

Not available

13

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

14

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

15

Toro 2412-60

Clamp

$

$

Not available

16

Toro 26-3820

Lower Handle

$

$

Not available

17

Toro 26-3880

Key

$

$

Not available

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 26-5600

Latch

$

$

Not available

Toro 23-6110

Grass Bagging Kit

Note: Optional equipment

$

$

Not available
