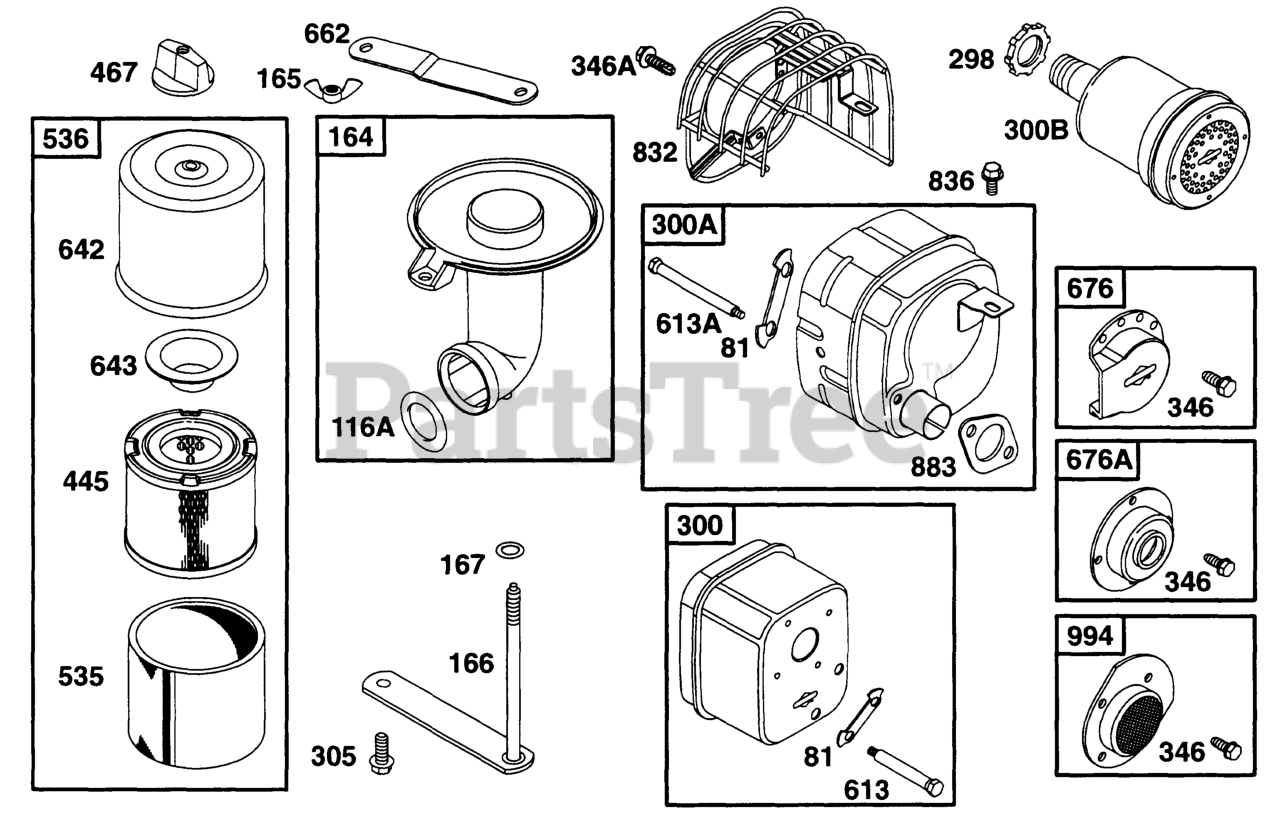

170452-6049-03 - Briggs & Stratton Horizontal Engine Air Cleaner Grp, Muffler Grp Parts Diagram

Horizontal Engine

Air Cleaner Grp, Muffler Grp Parts Diagram

  • Title

81

Briggs & Stratton 222263

Lock, Screw Head (3/8" Dia. Bolt Holes)
(Superseded to 691729)

$6.49

$

In Stock, only 3 left!

0

116A

Briggs & Stratton 271265

Seal-O

$5.99

$

In Stock, only 2 left!

0

164

Briggs & Stratton 398592

Pipe-Air Cleaner

$46.99

$

In Stock, Qty 6

0

165

Briggs & Stratton 94289

Nut-Wing
(Superseded to 691331)

$5.99

$

In Stock, only 2 left!

0

166

Briggs & Stratton 392105

Strap-Cl Mtg (9-9/16" Long)

$28.99

$

In Stock, only 2 left!

0

167

Briggs & Stratton 65978

Seal, O-Ring (Needle Valve)
(Superseded to 691606)

$5.99

$

In Stock, only 4 left!

0

298

Briggs & Stratton 261409

Locknut, Muffler/El
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

300B

Briggs & Stratton 393010

Muffler Assy (Round Lo-tone)
(Superseded to 393010S)

$23.99

$

In Stock, Qty 5

0

300A

Briggs & Stratton 391313

Muffler-Exhaust
(Superseded to 692304)

$35.99

$

In Stock, only 2 left!

0

300

Briggs & Stratton 494221

Muffler-Exhaust

$

$

Not available

305

Briggs & Stratton 94786

Screw, Machine Hex (1/2" Long)
(Superseded to 692198)

$6.49

$

In Stock, Qty 20+

0

346A

Briggs & Stratton 93606

Screw-Hex

$4.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 94786

Screw, Machine Hex (1/2" Long)
(Superseded to 692198)

$6.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 94896

Screw, Tapping Hex
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

445

Briggs & Stratton 393957

Filter-Air
(Superseded to 393957S)

$19.99

$

In Stock, Qty 10

0

467

Briggs & Stratton 493903

Knob-Air Cleaner
(Superseded to 691668)

$5.99

$

In Stock, Qty 20+

0

535

Briggs & Stratton 271794

Filter-Precleaner
(Superseded to 271794S)

$4.99

$

In Stock, Qty 20+

0

536

Briggs & Stratton 391063

Cleaner-Air
(Superseded to 593702)

$

$

Not available

613A

Briggs & Stratton 94042

Screw, Shoulder Muf
(Superseded to 691632)

$8.99

$

In Stock, only 2 left!

0

613

Briggs & Stratton 94054

Screw, Shoulder Muf
(Superseded to 691351)

$8.99

$

In Stock, only 2 left!

0

642

Briggs & Stratton 224885

Cover-Air Cleaner
(Superseded to 593373)

$

$

Not available

643

Briggs & Stratton 222272

Retainer-Filter
(Superseded to 691730)

$11.99

$

In Stock, only 2 left!

0

662

Briggs & Stratton 224484

Bracket-Support

$9.49

$

In Stock, only 1 left!

0

676A

Briggs & Stratton 395700

Deflector-Muff (Direct Outlet)

$16.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393757

Deflector-Muff (Side Outlet)
(Superseded to 796956)

$10.99

$

In Stock, only 2 left!

0

832

Briggs & Stratton 492337

Guard-Muffler
(Superseded to 691988)

$

$

Not available

836

Briggs & Stratton 94786

Screw, Machine Hex (1/2" Long)
(Superseded to 692198)

$6.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 272309

Gasket-Muffler
(Superseded to 692237)

Note: Included in Valve Overhaul Gasket Set-Part No. 498533. Included in Gasket Set-Part No. 299577

$5.99

$

In Stock, Qty 9

0

994

Briggs & Stratton 399541

Spark Arrester

$29.99

$

In Stock, only 1 left!

0
