1716 G (1692444) - AGCO Garden Tractor, 16hp Gear Transmission Service Parts Parts Diagram

Garden Tractor, 16hp

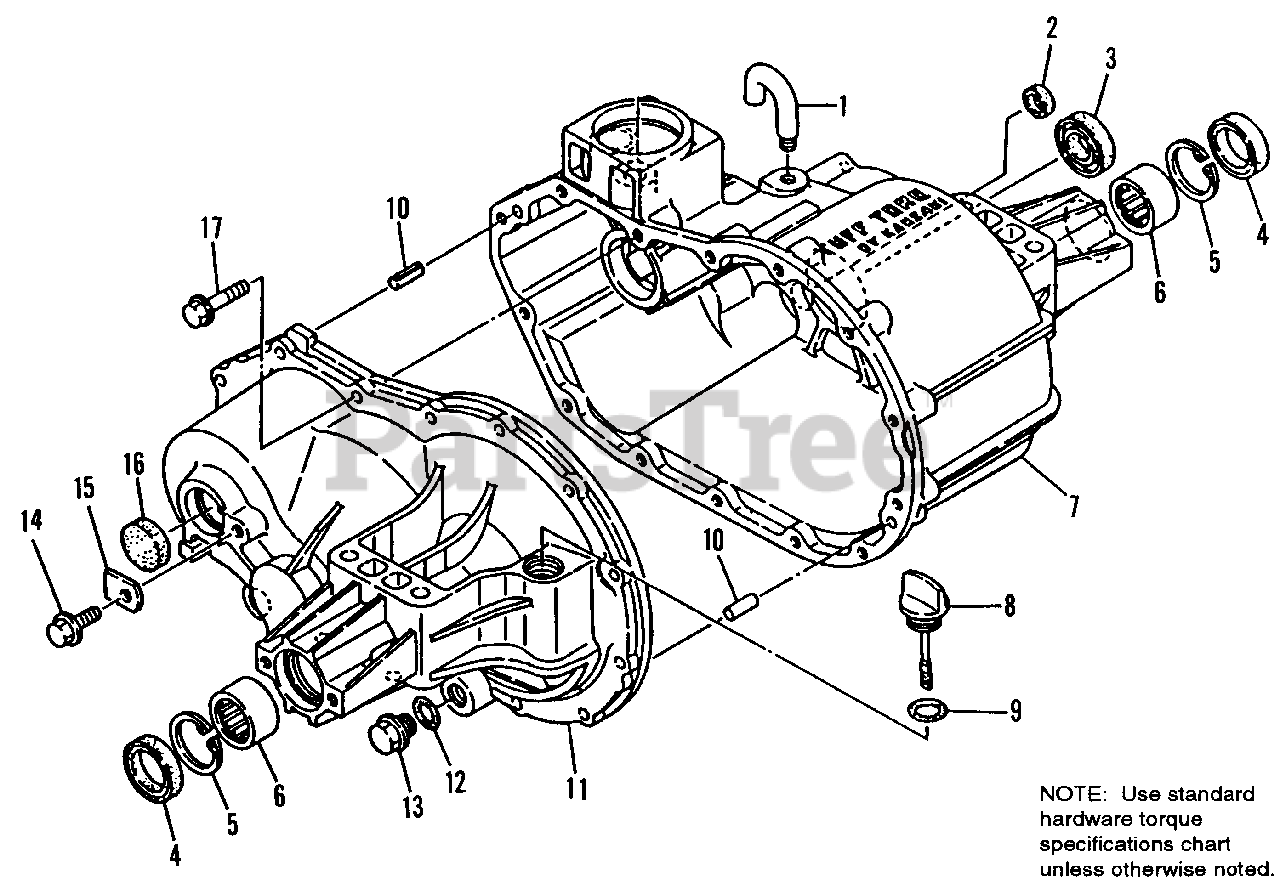

Gear Transmission Service Parts Parts Diagram

  • Title

1

Simplicity 1707777SM

FITTING

$21.99

$

Usually ships in 2-12 days

0

2

Simplicity 1707772SM

PLUG, Seal

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 1707775SM

SEAL TC

$19.99

$

Usually ships in 2-12 days

0

4

Simplicity 1707776SM

SEAL TC

$21.99

$

Usually ships in 2-12 days

0

5

Simplicity 1707782SM

RING, Internal Snap

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 1707784SM

BEARING, Needle

$74.99

$

Usually ships in 2-12 days

0

7

Simplicity 1707774SM

HOUSING, Transmission, R.H.

$

$

Not available

8

Simplicity 1707778SM

CAP, Oil

$23.99

$

Usually ships in 2-12 days

0

9

Simplicity 1707786SM

PACKING

$6.49

$

Usually ships in 2-12 days

0

10

Simplicity 1707783SM

ROLL PIN

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 1707773SM

HOUSING, Transmission, L.H.

$

$

Not available

12

Simplicity 1707785SM

PACKING

$1.99

$

Usually ships in 2-12 days

0

13

Simplicity 1707779SM

PLUG

$

$

Not available

14

Simplicity 1707788SM

SCREW, Self Threading

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 1707780SM

PLATE

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 1707790SM

CAP, Sealing

$10.99

$

Usually ships in 2-12 days

0

17

Simplicity 1707789SM

SCREW

$6.99

$

Usually ships in 2-12 days

0
