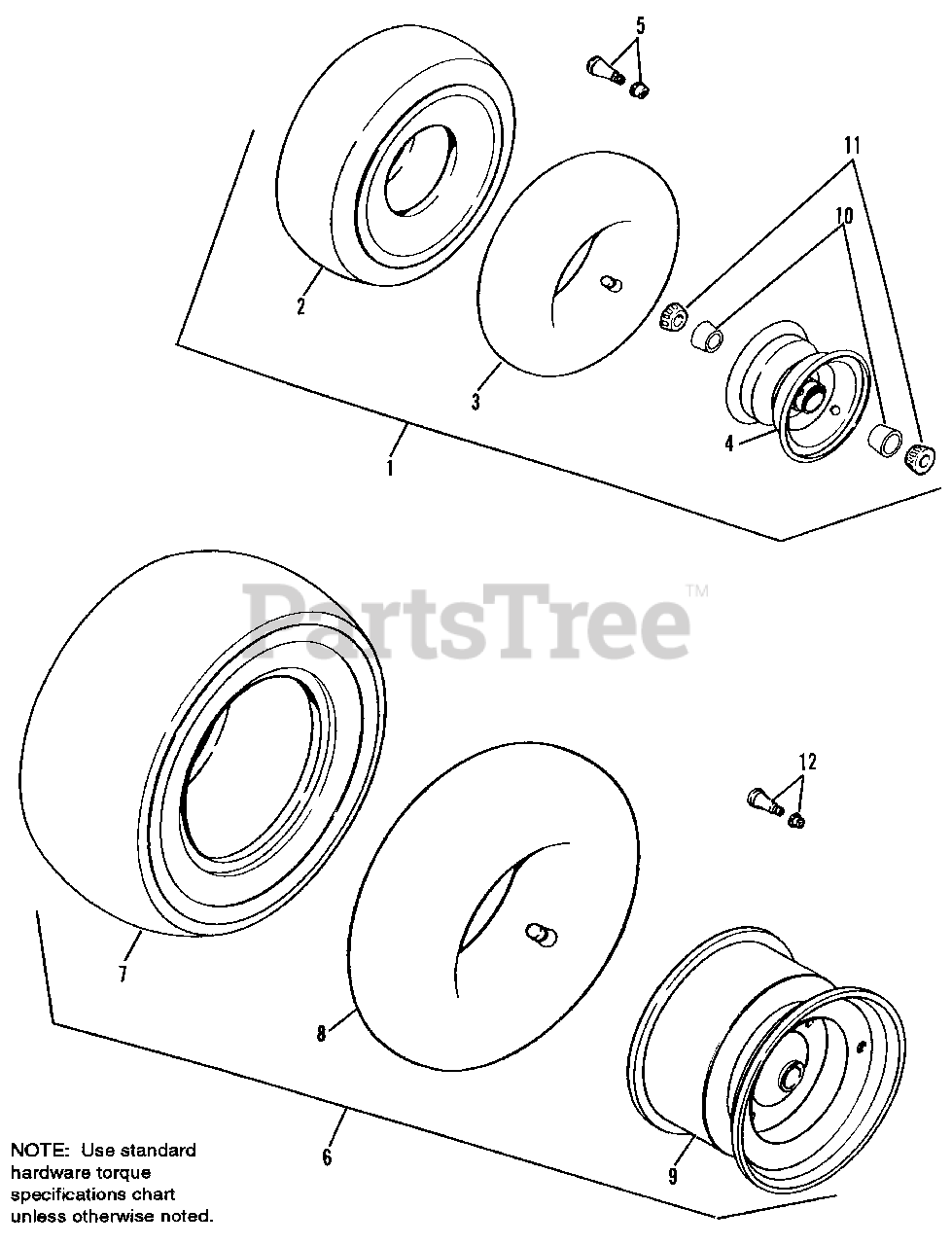

1716 G (1692444) - AGCO Garden Tractor, 16hp Wheels & Tires Group Parts Diagram

Garden Tractor, 16hp

Wheels & Tires Group Parts Diagram

  • Title

1

Simplicity 1713059

FRONT WHEEL & TIRE ASSY., 16 x 6.50-8, Beige (Incl. Ref. Nos. 2, 3, 4, 5, 10 & 11)

$

$

Not available

1

Simplicity 1713060

FRONT WHEEL & TIRE ASSY., 16 x 6.50-8, Metallic Gray (Incl. Ref. Nos. 2, 3, 4, 5, 10 & 11)

$

$

Not available

2

Simplicity 1713528SM

TIRE, Dico, 16 x 6.50-8

$

$

Not available

3

Simplicity 2164247SM

TUBE, 16 X 6.50-8, (Service only, see note below.)

$40.99

$

In Stock, only 1 left!

0

4

Simplicity 1713177SM

WHEEL ASSY. (Incl. Ref. No. 10), Beige

$114.99

$

In Stock, only 1 left!

0

4

Simplicity 1713177SM

WHEEL ASSY. (Incl. Ref. No. 10), Silver

$114.99

$

In Stock, only 1 left!

0

5

Simplicity 172352

VALVE STEM & CAP

$

$

Not available

6

Simplicity 1713062SM

REAR WHEEL & TIRE ASSY., 23 x 10.5-12, Beige (Incl. Ref. Nos. 7, 8, 9 & 12)

$

$

Not available

6

Simplicity 1713062SM

REAR WHEEL & TIRE ASSY., 23 x 10.5-12, Metallic Gray (Incl. Ref. Nos. 7, 8, 9 & 12)

$

$

Not available

7

Simplicity 1709969SM

TIRE, Dico, 23 x 10.5-12
(Superseded to 1722830SM)

$242.99

$

Usually ships in 2-12 days

0

8

Simplicity 2157638SM

TUBE, (23 x 10.5-12)

$86.99

$

In Stock, only 2 left!

0

9

Simplicity 1713174SM

WHEEL ASSY., Beige

$

$

Not available

9

Simplicity 1713174SM

WHEEL ASSY., Metallic Gray

$

$

Not available

10

Simplicity 2154393SM

BEARING CUP

$22.99

$

In Stock, Qty 5

0

11

Simplicity 2154486SM

BEARING CONE

$36.99

$

In Stock, Qty 15

0

12

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

12

Simplicity 2103049SM

TOUCH-UP PAINT, Beige, 13 oz. Spray Can

Note: Not shown

$

$

Not available

12

Simplicity 1685718SM

TOUCH-UP PAINT, Metallic Gray, 13 oz. Spray Can

Note: Not shown

$51.99

$

Usually ships in 2-12 days

0

1

Simplicity 1707203

FRONT WHEEL & TIRE ASSY., 16 x 6.50-8, Beige (Incl.Ref.Nos. 2, 3, 4, 5, 10 & 11)

$

$

Not available

1

Simplicity 1707535

FRONT WHEEL & TIRE ASSY. (16 x 6.50-8), Silver (Incl. Ref. Nos. 2, 3, 4, 5, 10 & 11)

$

$

Not available

2

Simplicity 1713528SM

TIRE, Carlisle, 16 x 6.50-8

$

$

Not available

3

Simplicity 2164247SM

TUBE, 16 X 6.50-8 (Service only, see note below.)

$40.99

$

In Stock, only 1 left!

0

4

Simplicity 1713177SM

WHEEL ASSY., Beige (Incl. Ref. No.10)

$114.99

$

In Stock, only 1 left!

0

4

Simplicity 1713177SM

WHEEL ASSY., Silver (Incl. Ref. No.10)

$114.99

$

In Stock, only 1 left!

0

5

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

6

Simplicity 1713062SM

REAR WHEEL & TIRE ASSY., 23 x 10.5-12, Beige (Incl.Ref.Nos. 7, 8, 9 & 12)

$

$

Not available

6

Simplicity 1713062SM

REAR WHEEL & TIRE ASSY., 23 x 10.5-12, Silver (Incl. Ref. Nos. 7, 8, 9 & 12)

$

$

Not available

7

Simplicity 1709969SM

TIRE, Carlisle, 23 x 10.5-12
(Superseded to 1722830SM)

$242.99

$

Usually ships in 2-12 days

0

8

Simplicity 2157638SM

TUBE, 23 x 10.5-12

$86.99

$

In Stock, only 2 left!

0

9

Simplicity 1707523

WHEEL ASSY., Beige

$

$

Not available

9

Simplicity 1713174SM

WHEE LASSY., Silver

$

$

Not available

10

Simplicity 2154393SM

BEARING CUP

$22.99

$

In Stock, Qty 5

0

11

Simplicity 2154486SM

BEARING CONE

$36.99

$

In Stock, Qty 15

0

12

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

12

Simplicity 2103049SM

TOUCH-UP PAINT, Beige, 13 oz. Spray Can

Note: Not Shown

$

$

Not available

12

Simplicity 1685644

TOUCH-UP PAINT, Silver, 13 oz. Spray Can

Note: Not Shown

$

$

Not available
