1718 H (1693896) - AGCO 50" Garden Tractor, 18hp Lift Mechanism Group - Manual 50" Parts Diagram

50" Garden Tractor, 18hp

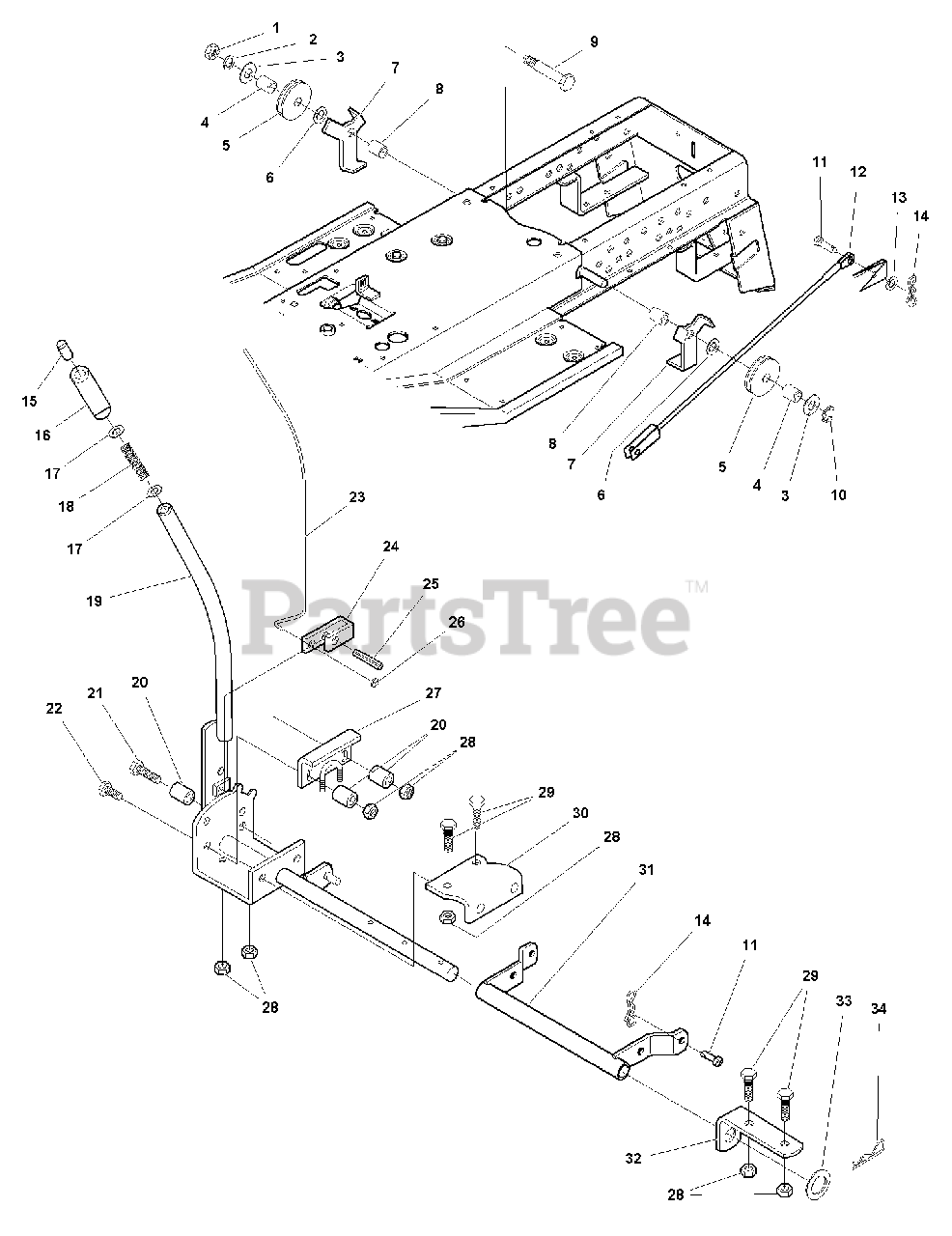

Lift Mechanism Group - Manual 50" Parts Diagram

  • Title

1

Simplicity 1916951SM

NUT, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

2

Simplicity 1916966SM

WASHER, Lock, 1/2-13
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, only 4 left!

0

4

Simplicity 1722412SM

SPACER

$

$

Not available

5

Simplicity 1708559SM

PULLEY

$9.99

$

Usually ships in 2-12 days

0

6

Simplicity 1924359SM

WASHER, 1/2

$2.49

$

Usually ships in 2-12 days

0

7

Simplicity 1722343SM

PULLEY, Guide

$37.99

$

Usually ships in 2-12 days

0

8

Simplicity 1722411SM

SPACER

$23.99

$

Usually ships in 2-12 days

0

9

Simplicity 1960245SM

CAPSCREW, Hex Head, 1/2-13 x 3

$5.49

$

Usually ships in 2-12 days

0

10

Simplicity 1703805SM

RING, Klipring

$3.49

$

In Stock, only 2 left!

0

11

Simplicity 1708298SM

PIN, Round Head, Drilled, 3/8 x 1

$

$

Not available

12

Simplicity 1722436SM

CABLE

$45.99

$

Usually ships in 2-12 days

0

13

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

14

Simplicity 1722320SM

PIN, Cotter Locking

$3.49

$

In Stock, Qty 18

0

15

Simplicity 1650157SM

BUTTON

$7.49

$

Usually ships in 2-12 days

0

16

Simplicity 1713995SM

GRIP, Black

$12.99

$

In Stock, only 1 left!

0

17

Simplicity 1918265SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1723321SM

SPRING, Compression

$6.99

$

In Stock, Qty 11

0

19

Simplicity 1722413SM

QUADRANT & LEVER ASSEMBLY

$256.99

$

Usually ships in 2-12 days

0

20

Simplicity 1705249SM

SPACER

$2.99

$

Usually ships in 2-12 days

0

21

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

In Stock, only 3 left!

0

22

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 16

0

23

Simplicity 1721959SM

ROD

$18.99

$

Usually ships in 2-12 days

0

24

Simplicity 1721999SM

LATCH
(Superseded to 1721999ASM)

$46.99

$

Usually ships in 2-12 days

0

25

Simplicity 1927609SM

ROLL PIN, 3/8 x 1

$3.49

$

In Stock, Qty 6

0

26

Simplicity 1934953SM

PUSH NUT, 5/16

$3.49

$

In Stock, only 1 left!

0

27

Simplicity 1704715SM

BRACKET & U BOLT ASSEMBLY (Early Models)
(Superseded to 1704715ASM)

$25.99

$

Usually ships in 2-12 days

0

27

Simplicity 1722679SM

BRACKET & U BOLT ASSEMBLY (Later Models)

$27.99

$

Usually ships in 2-12 days

0

28

Simplicity 1919438SM

LOCKNUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 10

0

29

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

30

Simplicity 1704713ASM

BRACKET & PINS ASEMBLY

$91.99

$

Usually ships in 2-12 days

0

31

Simplicity 1709926SM

TUBE & ARMS ASSEMBLY

$69.99

$

Usually ships in 2-12 days

0

32

Simplicity 1704712ASM

BRACKET

$12.99

$

Usually ships in 2-12 days

0

33

Simplicity 1911386SM

WASHER, 3/4
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1960033SM

PIN, Hair

$3.49

$

In Stock, only 3 left!

0
