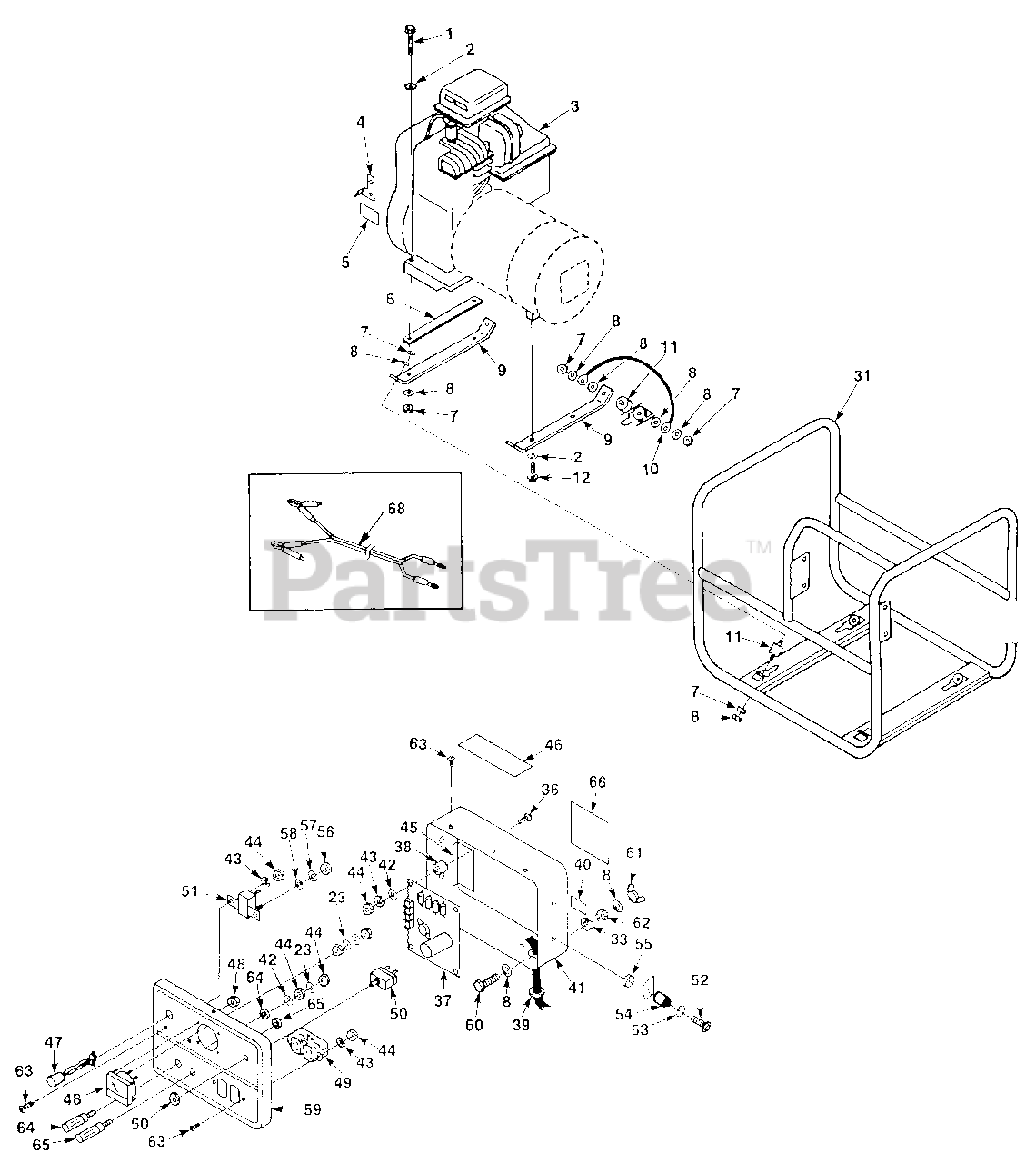

172 B26 (UT-03626) - Homelite Generator Control Box & Frame Parts Diagram

Generator

Control Box & Frame Parts Diagram

  • Title

1

Homelite 80087

SCREW- Hex Hd. 5/16-18 x 1 1/2"

$

$

Not available

2

Homelite 83033

WASHER- Lock Int. 5/16
(Superseded to 83081)

$

$

Not available

3

Homelite 49482S

ENGINE- 5 H.P. Briggs

$

$

Currently unavailable

6

Homelite 49466

SPACER

$

$

Not available

7

Homelite 81162

NUT- Hex 5/16-18

$

$

Not available

8

Homelite 83081

WASHER-Int.

$

$

Not available

9

Homelite 49465

SUPPORT- Eng. & Gen.

$9.99

$

Usually ships in 3-7 days

0

10

Homelite A49399

STRAP-Ground

$

$

Currently unavailable

11

Homelite 49367

ISOLATOR-Vibration
(Superseded to UP03483)

$

$

Not available

12

Homelite 82206

SCREW-Hex taptite 5/16-18 x 1"

$2.99

$

Usually ships in 3-7 days

0

23

Homelite 83022

WASHER-Lock Int. #8
(Superseded to UP03410)

$

$

Not available

31

Homelite A494601

ROLL CAGE

$

$

Currently unavailable

33

Homelite 83002

WASHER- Lock 5/16"
(Superseded to 653671)

$2.99

$

Usually ships in 3-7 days

0

36

Homelite 80582

SCREW- #8- 32 x 5/8"

$

$

Not available

37

Homelite A48999B

VOLTAGE REGULATOR

$

$

Currently unavailable

38

Homelite 49498

SPACER- 1/4"

$5.49

$

Usually ships in 3-7 days

0

39

Homelite 49122

GROMMET

$

$

Not available

40

Homelite 49490

DECAL-Ground

$

$

Not available

41

Homelite A494681

CONTROL BOX

$

$

Currently unavailable

42

Homelite 84111

WASHER-Flat #8

$

$

Not available

43

Homelite 83060

WASHER-Lock #8
(Superseded to UP07171)

$

$

Not available

44

Homelite 81009

NUT- Hex 8-32

$

$

Not available

45

Homelite 49491

DECAL-Schematic

$

$

Currently unavailable

46

Homelite 49495

DECAL- Warning

$2.99

$

Usually ships in 3-7 days

0

47

Homelite A49366

PILOT LITE

$

$

Currently unavailable

48

Homelite 49472

VOLTMETER

$

$

Not available

49

Homelite 50991

RECEPTACLE- Duplex
(Superseded to UP03497)

$

$

Not available

50

Homelite 48952

BREAKER- Circuit (AC)

$

$

Not available

51

Homelite 49298

BREAKER- Circuit (DC)

$

$

Not available

52

Homelite 82322

SCREW- Pan hd. 1/4-20 x 3/4"
(Superseded to 49748)

$

$

Not available

53

Homelite 84006

WASHER- Flat 1/4"

$

$

Not available

54

Homelite 49350

SLEEVE- Grommet
(Superseded to 49748)

$

$

Not available

55

Homelite 49351

GROMMET- Isolator

$

$

Not available

56

Homelite 81264

NUT- Hex 10-32

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 84003

WASHER- Flat #10

$1.49

$

Usually ships in 3-7 days

0

58

Homelite 83025

WASHER- Lock #10

$

$

Not available

59

Homelite 494701

CONTROL PANEL

$

$

Currently unavailable

60

Homelite 80085

SCREW- Cap hex hd. 5/16-18 x 1"

$1.49

$

Usually ships in 3-7 days

0

61

Homelite 81015

NUT- Wing 5/16-18

$

$

Not available

62

Homelite 81018

NUT- Hex 5/16-18

$

$

Not available

63

Homelite 80577

SCREW- Pan hd., 8-32 x 3/8"
(Superseded to UP03389)

$

$

Not available

64

Homelite 49292

POST- Binding (Black)
(Superseded to 00533)

$

$

Not available

65

Homelite 49293

POST- Binding (Red)
(Superseded to 00525)

$

$

Not available

66

Homelite 49598

DECAL- Caution

$

$

Not available

68

Homelite A49380

LEAD- D.C.

$

$

Currently unavailable
