172 B26 (UT-03626) - Homelite Generator Generator Parts Diagram

Generator

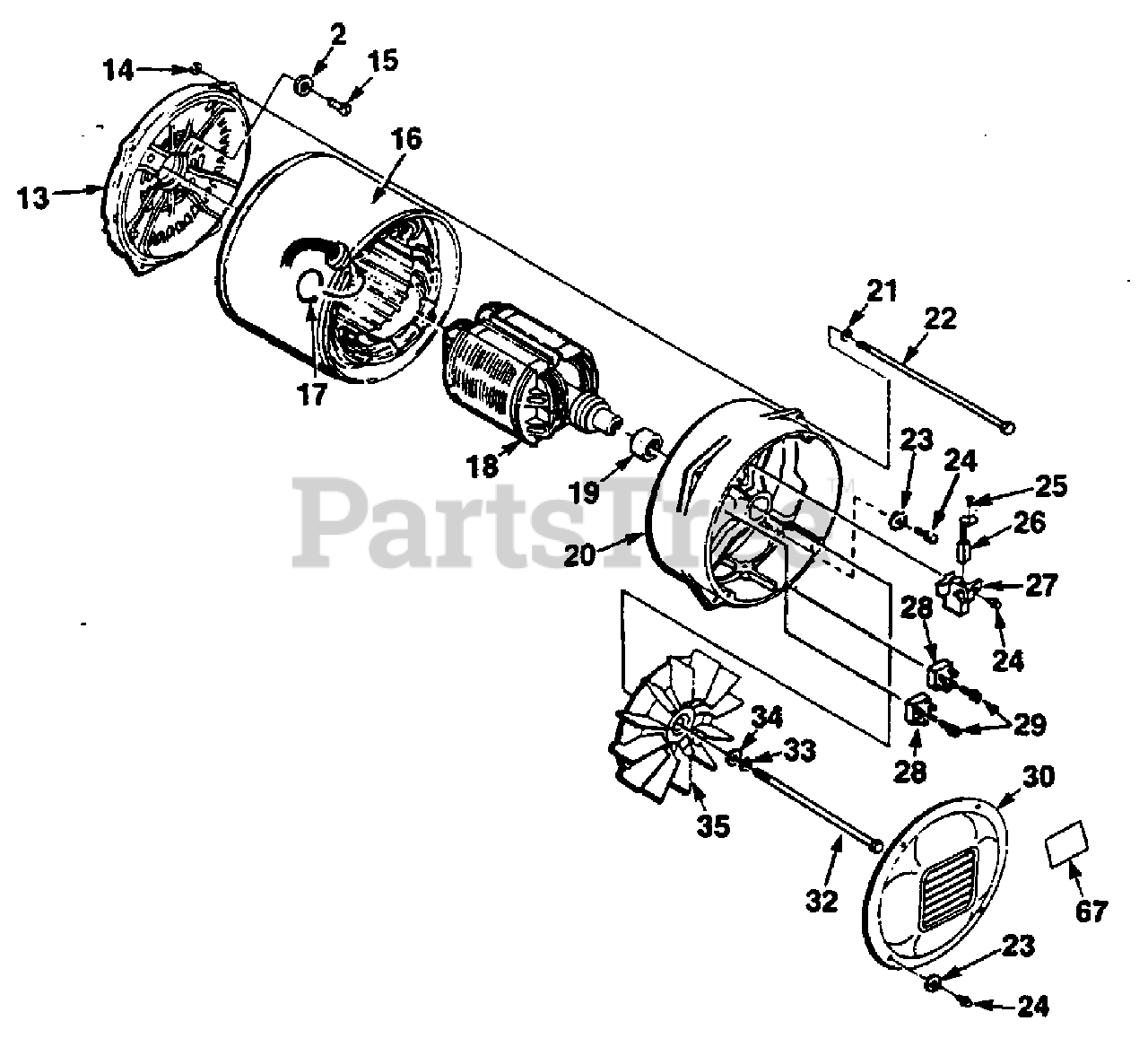

Generator Parts Diagram

  • Title

2

Homelite 83033

WASHER- Lock Int. 5/16
(Superseded to 83081)

$

$

Not available

13

Homelite 537526

ENDBELL- Gen.

$

$

Not available

14

Homelite 81053

NUT-Hex 1/4-20

$

$

Not available

15

Homelite 80604

SCREW-Hex hd., 5/16-24
(Superseded to UP03390)

$

$

Not available

16

Homelite A49476S

STATOR & SHELL

$

$

Currently unavailable

17

Homelite 46840

TIE-Cable

$

$

Not available

18

Homelite A49475S

ROTOR

$

$

Not available

19

Homelite 53819

BEARING

$

$

Not available

20

Homelite 537592

BRUSH HEAD
(Superseded to UP07292)

$

$

Not available

21

Homelite 83070

WASHER-Lock

$

$

Not available

22

Homelite 49480

BOLT- Stator

$

$

Currently unavailable

23

Homelite 83022

WASHER-Lock Int. #8
(Superseded to UP03410)

$

$

Not available

24

Homelite 82474

SCREW- Thread forming

$

$

Not available

25

Homelite 80260

SCREW- Mach round hd.

$

$

Not available

26

Homelite 53762

BRUSH

$

$

Not available

27

Homelite 53760

BRUSH HOLDER

$17.99

$

Usually ships in 3-7 days

0

28

Homelite 53818

RECTIFIER
(Superseded to 53818A)

$

$

Not available

29

Homelite 82205

SCREW- Hex taptite, 8-32 x 3/4"

$

$

Not available

30

Homelite 513941

COVER- Brush head

$

$

Currently unavailable

32

Homelite 4885204

BOLT- Rotor .312-24 x 6 1/2"

$

$

Currently unavailable

33

Homelite 83002

WASHER- Lock 5/16"
(Superseded to 653671)

$2.99

$

Usually ships in 3-7 days

0

34

Homelite 84058

WASHER-Flat 5/16"

$

$

Not available

35

Homelite A53769

FAN

$

$

Currently unavailable

67

Homelite 49613

DECAL-Warning

$

$

Not available
