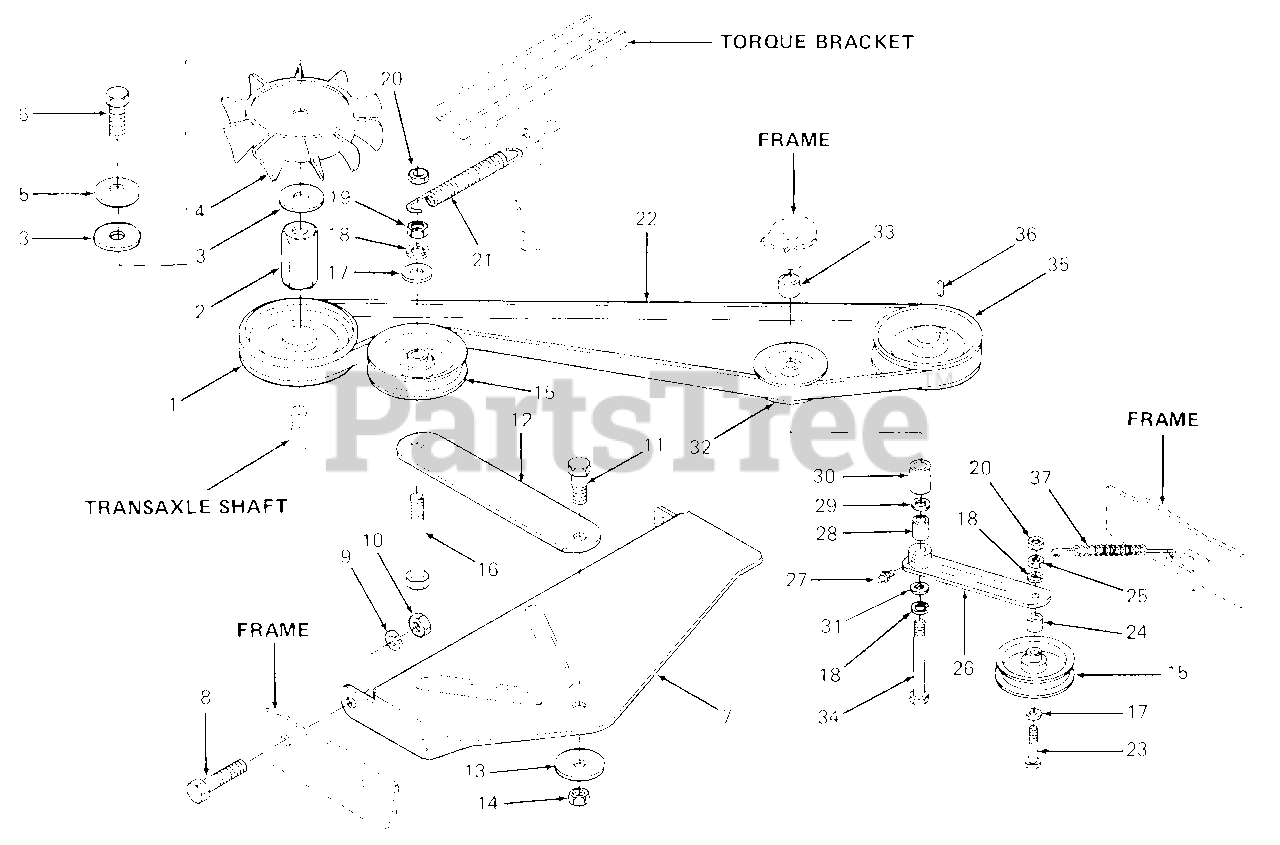

1720 (138-271-100) - Cub Cadet Garden Tractor (SN: 126001 - 147087) Drive Parts Diagram

Garden Tractor

Drive Parts Diagram

  • Title
1

Cub Cadet 756-3038

V-Pulley, 4.0 Dia

$68.99

$

In Stock, only 2 left!

0

2

Cub Cadet 711-3243

Adapter, Fan, 1.0 Lg

$

$

Not available

3

Cub Cadet 736-3021

Washer, Flat, .531 X 1.5 X .120 Thk

$5.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-3080

Fan, 10 Blade Hydro
(Superseded to 931-3080)

$30.99

$

In Stock, Qty 6

0

5

Cub Cadet 736-0253

Washer, Bell, .505 X 1.00 X .075

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3194

Bolt, Hex, 1/2-20 X .75 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-1534

Bracket, Clutch Mounting

$

$

Not available

8

Cub Cadet 710-0759

Screw, Hex Cap, 5/16-18 X .62 Lg

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 738-0140

Screw, Shoulder

$5.49

$

In Stock, Qty 17

0

12

Cub Cadet 703-1644

Bracket, Hydro Idler
(Superseded to 703-1644-0637)

Variations

Cub Cadet 703-1644-0637

BRACKET-HYDRO IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 736-0123

Washer, Flat, .344 X 1.12 X .063 Thk
(Superseded to 936-0123)

$5.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.49

$

In Stock, Qty 20+

0

15

Cub Cadet 756-3054

Idler, Flat, 2.75 Dia
(Superseded to 956-3054)

$48.99

$

In Stock, only 4 left!

0

16

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 X 2.25 Lg GR5

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.49

$

In Stock, Qty 17

0

18

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0266

Nut, Hex Center Lock Jam, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 732-0429A

Spring, Extension
(Superseded to 932-0429A)

$8.49

$

In Stock, Qty 20+

0

22

Cub Cadet 754-3037

V-Belt, A Sec X 80 in. Lg
(Superseded to 954-3037)

$44.99

$

In Stock, Qty 11

0

23

Cub Cadet 710-3022

Screw, Hex Cap, 3/8-16 X 2.75 Lg GR5

$4.49

$

In Stock, Qty 10

0

24

Cub Cadet 750-0497

Spacer, .375 X .625 X .445 Lg

$9.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 703-1396

Arm, Idler
(Superseded to 703-1396-0637)

Variations

Cub Cadet 703-1396-0637

ARM-IDLER - POWDER BLACK (0637)

$161.99

$

Usually ships in 3-6 days

0

$161.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 750-0252

Spacer, .3775 X .600 X .830 Lg
(Superseded to 950-0252)

$19.99

$

In Stock, Qty 6

0

29

Cub Cadet 736-0267

Washer, Flat, .385 X .87 X .06 Thk Hdn

$4.49

$

In Stock, only 1 left!

0

30

Cub Cadet 711-3263

Spacer, .38 X .75 X 1.26 Lg

$

$

Not available

31

Cub Cadet 736-0247

Washer, Flat, .406 X 1.25 X X .157 Thk

$8.99

$

In Stock, Qty 20+

0

32

Cub Cadet 756-0166

V-Idler, 2.62 OD
(Superseded to 756-1035A)

$32.99

$

In Stock, only 4 left!

0

33

Cub Cadet 711-3175

Bushing, .39 X 1.0 X .812 Lg

$

$

Not available

34

Cub Cadet 710-3153

Bolt, Hex, 3/8-16 X 4.75 Lg GR5

$

$

Not available

35

Cub Cadet 756-3033

Pulley, Engine, 3.5 Dia

$

$

Not available

36

Cub Cadet 714-0119

Key, Square, 1/4 X .75 Lg

$7.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 732-3044A

Spring, Extension
(Superseded to 932-3044A)

$

$

Not available
