1740 - Weed Eater String Trimmer CUTTING HEAD ASSEMBLY Parts Diagram

String Trimmer

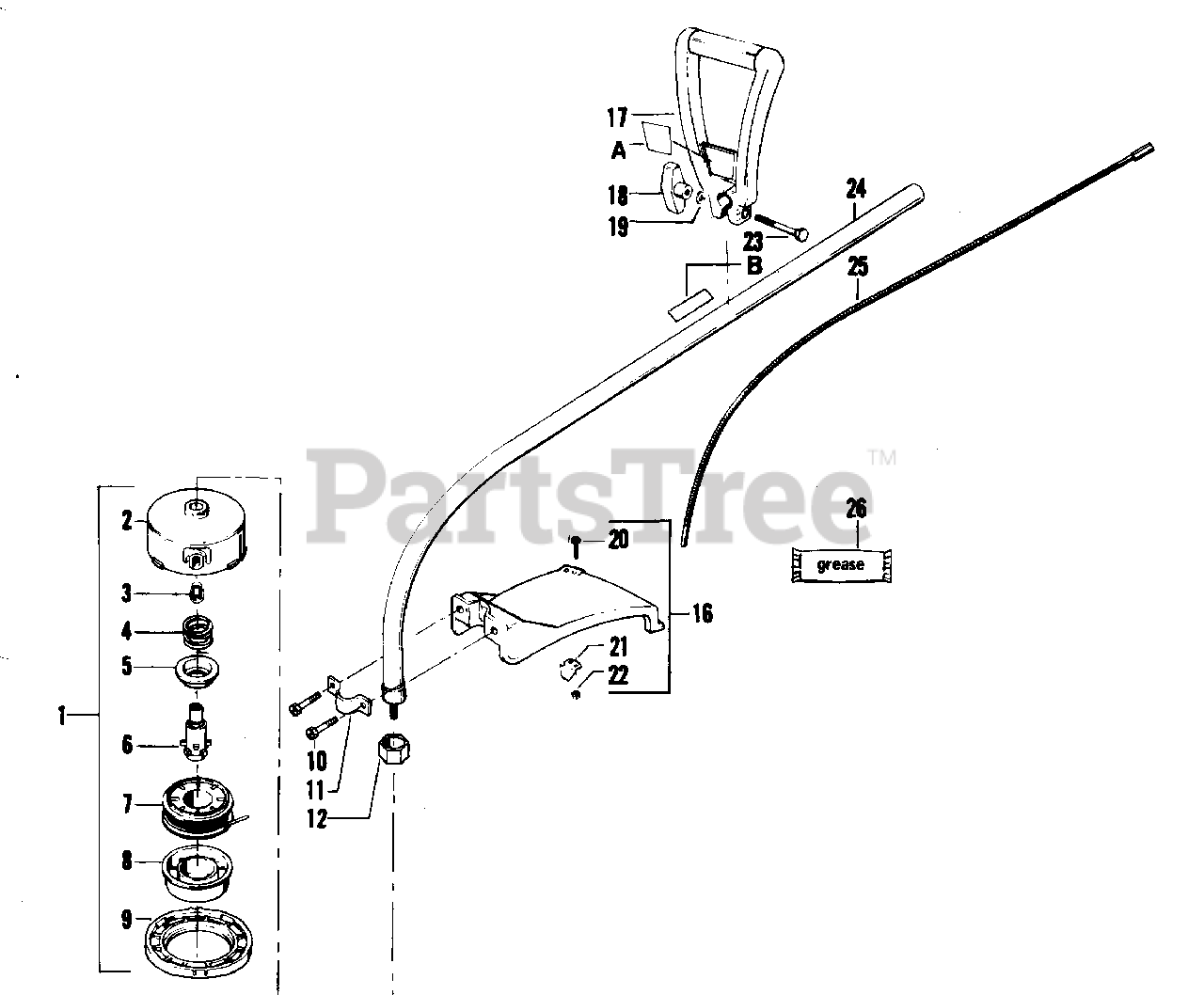

CUTTING HEAD ASSEMBLY Parts Diagram

  • Title

1

Poulan 530093894

Cutting Head Ass'y (Inc.2 - 9)

$19.99

$

Usually ships in 3-10 days

0

2

Poulan 530093896

Hub w/Line Saver
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

3

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 530092067

Spring
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530092068

Adaptor - Spring
(Superseded to 530328929)

$

$

Not available

6

Poulan 530093897

Drive Gear

$9.99

$

Usually ships in 3-10 days

0

7

Poulan 952701523

Spool w/Line

$

$

Not available

8

Poulan 530093387

Release Button
(Superseded to 530401183)

$

$

Not available

9

Poulan 530092133

Cover

$

$

Not available

10

Screw - Shield See Service Ref. 2.

$

$

Not available

11

Poulan 530093653

Bracket - Shield

$3.99

$

In Stock, only 1 left!

0

12

Poulan 530093716

Dust Cup

$

$

Not available

16

Kit Shield Ass'y. (Inc. 10,20, 21, 22) See Service Ref. 2.

$

$

Not available

17

Poulan 530010722

Assist Handle

$

$

Not available

18

Poulan 530092059

Knob - #1/4 - 20

$9.99

$

In Stock, only 1 left!

0

19

Poulan 530092062

Washer - #1/4 Flat

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530015337

Screw - Line Limiter

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530093853

Limiter - Line

$

$

Not available

22

Poulan 530015064

Nut - #10 - 24 Line Limiter

$

$

Not available

23

Poulan 530092061

Hex Bolt - #1/4 - 20 x 2-1/4"

$

$

Not available

24

Poulan 530093934

Drive Shaft Ass'y (Inc.12)

$

$

Not available

25

Poulan 530093928

Flexible Shaft Assembly

$20.99

$

Usually ships in 3-10 days

0

26

Poulan 530030102

Flex Shaft Lube (Optional)
(Superseded to 952708514)

$

$

Not available

A

Poulan 530026225

Decal - "D" Handle Warning

$

$

Not available

B

Poulan 530026228

Decal - Warning

$

$

Not available
