1748F (55AF3DAM195) - MTD Pro Walk-Behind Mower Kawasaki Cylinder & Crankcase Parts Diagram

Pro Walk-Behind Mower

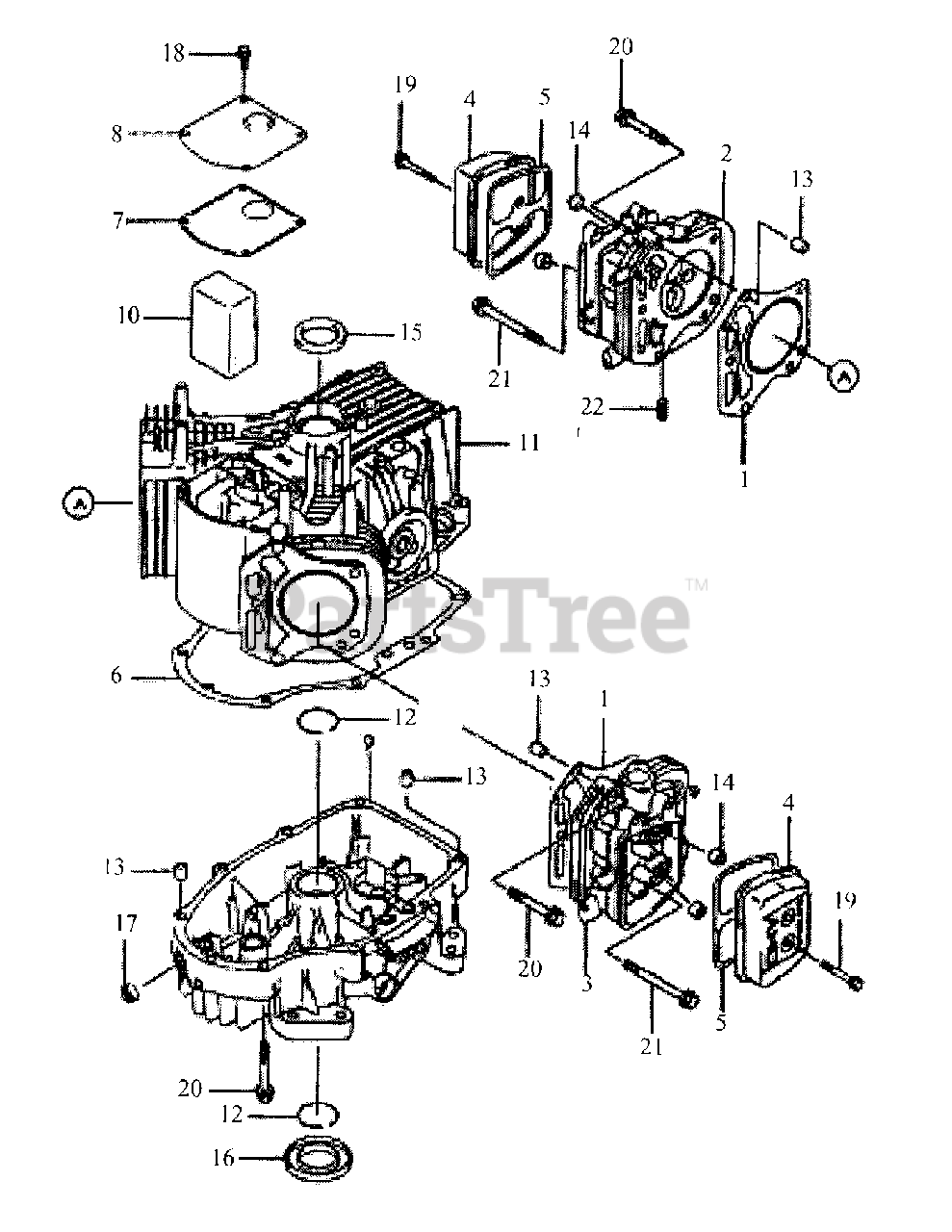

Kawasaki Cylinder & Crankcase Parts Diagram

  • Title

1

MTD KM-11004-7015

Head Gasket

$10.99

$

In Stock, Qty 20+

0

2

MTD KM-11008-6043

Head, Cylinder #1

$274.99

$

In Stock, Qty 8

0

3

MTD KM-11008-7020

Head, Cylinder #2

$274.99

$

In Stock, only 4 left!

0

4

MTD KM-11022-7001

Case, Rocker

$

$

Not available

5

MTD KM-11060-7001

Gasket, Rocker Case

$6.99

$

In Stock, Qty 20+

0

6

MTD KM-11060-7008

Gasket, Crankcase

$6.99

$

In Stock, Qty 20+

0

7

MTD KM-11061-7097

Gasket, Breather

$8.49

$

In Stock, Qty 7

0

8

MTD KM-14091-7006

Cover, Breather
(Superseded to KM-99996-6104)

$19.99

$

In Stock, Qty 20+

0

?9

MTD KM-49015-6227

Cover, Crankcase

$

$

Not available

10

MTD KM-49109-7002

Element, Breather
(Superseded to KM-99996-6104)

$19.99

$

In Stock, Qty 20+

0

11

MTD KM-49120-6132

Crankcase, Complete

$

$

Not available

12

MTD KM-92033-7003

Ring, Snap

$0.99

$

In Stock, Qty 20+

0

13

MTD KM-92043-7001

Pin

$0.99

$

In Stock, Qty 20+

0

14

MTD KM-92049-7001

Seal, Oil
(Superseded to KM-92049-0862)

$10.99

$

Usually ships in 3-6 days

0

15

MTD KM-92049-7010

Seal, Oil

$3.49

$

In Stock, Qty 20+

0

16

MTD KM-92049-7011

Seal, Oil

$5.99

$

In Stock, Qty 20+

0

17

MTD KM-92049-7005

Seal, Oil
(Superseded to KM-92049-7019)

$2.49

$

In Stock, Qty 20+

0

18

MTD KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

19

MTD KM-130BA0640

Bolt, Flange

$1.49

$

In Stock, only 4 left!

0

20

MTD KM-130CA0850

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

21

MTD KM-130CA0875

Bolt, Flange

$2.99

$

In Stock, Qty 20+

0

22

MTD KM-172BA0818

Bolt, Stuc

$1.99

$

In Stock, Qty 20+

0
