176 BI40C (UT-03629-C) - Homelite Generator Muffler, Tank & Frame Parts Diagram

Generator

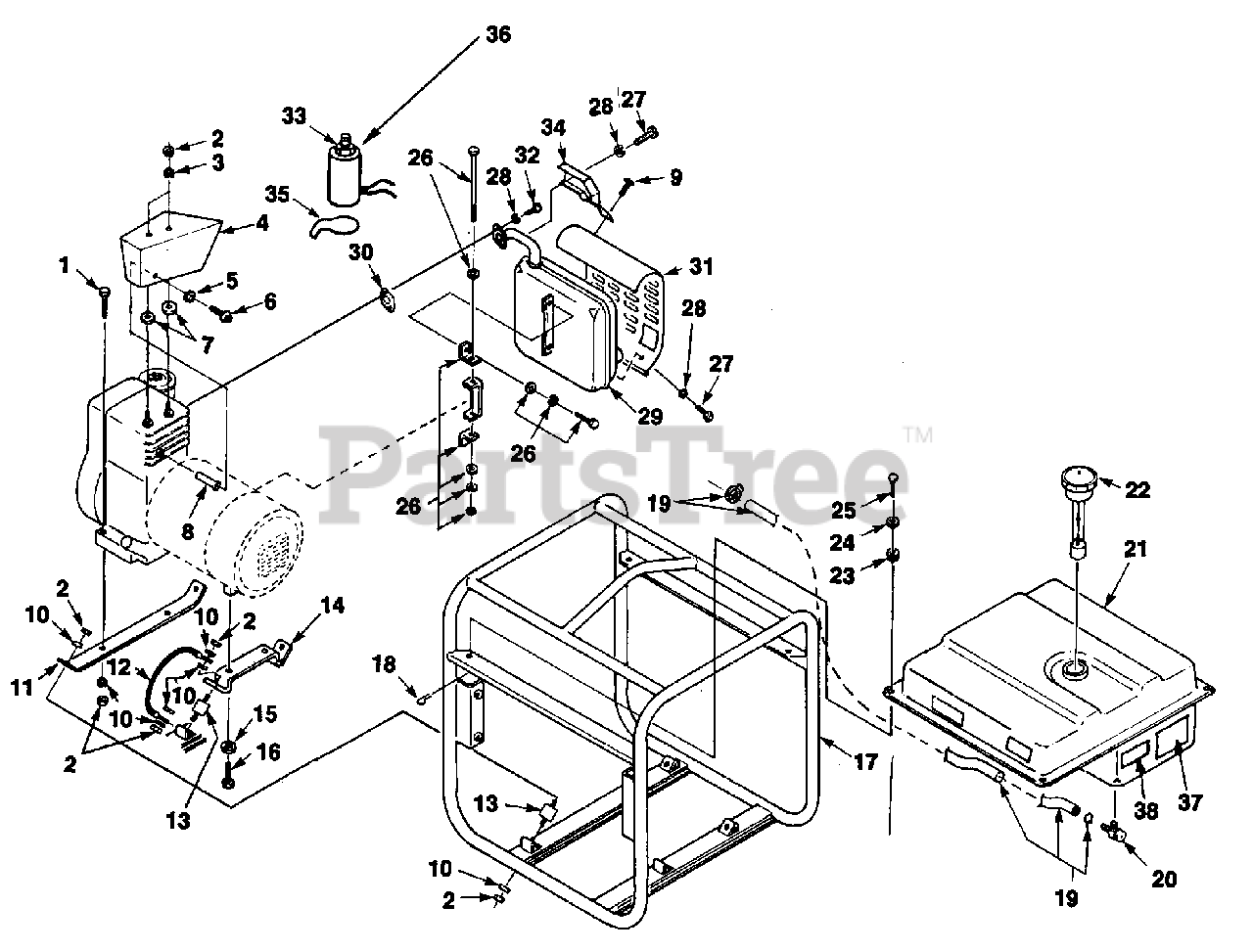

Muffler, Tank & Frame Parts Diagram

  • Title

1

Homelite 80288

SCREW- Cap hex hd. (5/16-18 x 1 3/4")
(Superseded to UP03388)

$

$

Not available

2

Homelite 81162

NUT- Hex (5/16-18)

$

$

Not available

3

Homelite 83030

WASHER- Lock

$

$

Not available

4

Homelite 493481

AIR DEFLECTOR

$

$

Currently unavailable

5

Homelite 84110

WASHER- Flat (#10)

$

$

Not available

6

Homelite 46044A

SCREW- Mach. Rd. Hd. (10-24 x 1 1/2")
(Superseded to UP03773)

$

$

Not available

7

Homelite 84032

WASHER- Flat

$

$

Not available

8

Homelite 49392

SPACER

$

$

Not available

9

Homelite 82279

SCREW

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 83081

WASHER- Int.Lock (5/16)

$

$

Not available

11

Homelite 49265

SUPPORT- Generator
(Superseded to UP03535)

$

$

Not available

12

Homelite A49399

GROUND STRAP

$

$

Currently unavailable

13

Homelite 49367

VIBRATION ISOLATOR
(Superseded to UP03483)

$

$

Not available

14

Homelite 48944

SUPPORT- Generator

$

$

Not available

15

Homelite 83081

WASHER- Lock/Int.

$

$

Not available

16

Homelite 82206

SCREW- Thd. forming (5/16-18 x 1")

$2.99

$

Usually ships in 3-7 days

0

17

Homelite A493211A

ROLL CAGE

$742.99

$

Usually ships in 3-7 days

0

18

Homelite 49412

PIN- Cotter

$

$

Not available

19

Homelite A49306

FUEL LINE ASSEMBLY
(Superseded to UP03517)

$

$

Not available

20

Homelite 49005

FUEL VALVE

$

$

Not available

21

Homelite 489311

FUEL TANK

$

$

Currently unavailable

22

Homelite 49179

FUEL CAP

$

$

Not available

23

Homelite 49351

GROMMET- Isolator

$

$

Not available

24

Homelite 84006

WASHER- Flat

$

$

Not available

25

Homelite 49329

PIN- Clevis

$

$

Not available

26

Homelite A49304

MUFFLER BRACKET KIT

$59.99

$

Usually ships in 3-7 days

0

27

Homelite 80044

SCREW (1/4-20 x 1/2")

$

$

Not available

28

Homelite 83009

WASHER- Lock (1/4")

$4.99

$

Usually ships in 3-7 days

0

29

Homelite 49372

MUFFLER

$

$

Not available

30

Homelite 49370

GASKET- Muffler

$

$

Not available

31

Homelite 49419

SHIELD- Muffler

$

$

Not available

32

Homelite 82302

SCREW- Cap hex hd. (1/4-20 x 5/8")

$

$

Not available

33

Homelite 810652

NUT- Hex (1/4-28)
(Superseded to UP03514)

$3.49

$

In Stock, only 1 left!

0

34

Homelite 49421

SHIELD- Exhaust

$

$

Not available

35

Homelite 49355

ARM- Throttle

$

$

Not available

36

Homelite A49449

ELECTROMAGNET

$

$

Currently unavailable

37

Homelite 49598

DECAL- Caution

$

$

Not available

38

Homelite 49340A

DECAL- Fuel valve
(Superseded to UP07235)

$

$

Not available
