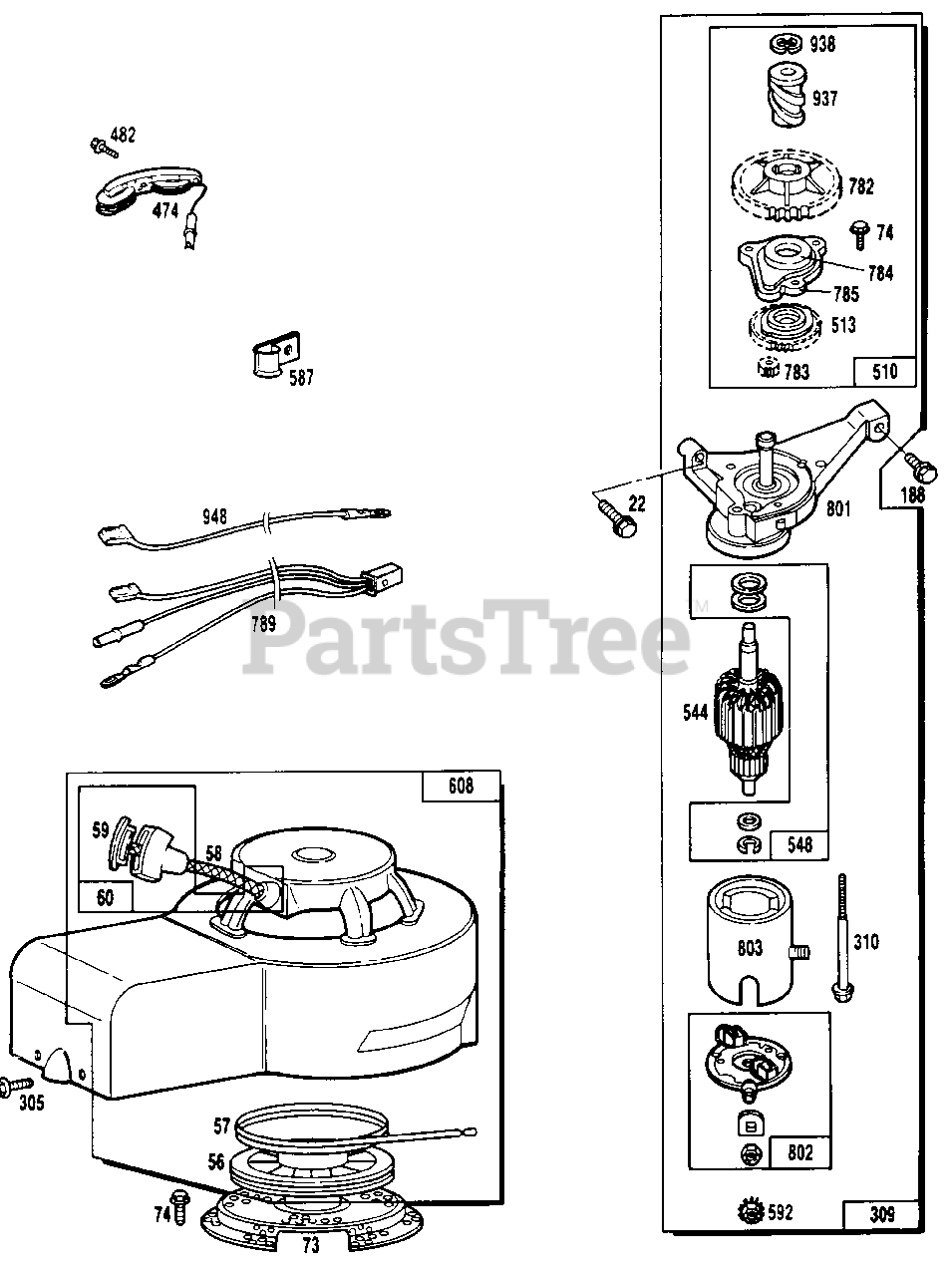

176 E (128-176E100) - Cub Cadet Walk-Behind Mower Engine (1988) Max 4.0 HP-110707-3122-01 Part 3 Parts Diagram

Walk-Behind Mower Engine

Max 4.0 HP-110707-3122-01 Part 3 Parts Diagram

  • Title

22

Cub Cadet BS-93032

Screw-Base Mounting Sem

$

$

Not available

56

Cub Cadet BS-280439

Pulley-Starter
(Superseded to BS-280439S)

$12.99

$

In Stock, only 1 left!

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$14.99

$

In Stock, Qty 13

0

58

Cub Cadet BS-280406

Rope-Rewind Starter-81" Long
(Superseded to BS-280406S)

$8.49

$

In Stock, only 1 left!

0

59

Cub Cadet BS-396892

Insert-Starier Grip

$5.49

$

In Stock, only 2 left!

0

60

Cub Cadet BS-393152

Grip-Starter Rope

$4.99

$

In Stock, only 3 left!

0

73

Cub Cadet BS-221661

Screen-Starter Pulley
(Superseded to BS-691725)

$

$

Not available

74

Cub Cadet BS-93490

Screw-Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

188

Cub Cadet 93847

Screw-Starter Mounting

$

$

Currently unavailable

305

Cub Cadet BS-94153

Screw-Blower Housing Mounting Sem

$

$

Not available

309

Cub Cadet BS-398635

Motor-Starter (12 Volt)

$178.99

$

Usually ships in 2-12 days

0

310

Cub Cadet BS-94051

Bolt-Starter Motor

$

$

Not available

474

Cub Cadet 397880

Stator Assembly-Alternator

$

$

Currently unavailable

482

Cub Cadet 94016

Screw-Hex Head

$

$

Currently unavailable

510

Cub Cadet BS-395727

Drive Kit-Starter

$

$

Not available

513

Cub Cadet BS-394815

Clutch Assembly-Electric Starter

$

$

Not available

544

Cub Cadet 398636

Arrnature -Starter

$

$

Currently unavailable

548

Cub Cadet 396067

Washer Set-Starter Motor

$

$

Currently unavailable

587

Cub Cadet 220162

Clip-Shield Grounding

$

$

Currently unavailable

592

Cub Cadet 93991

Nut-Hex 10-24

$

$

Currently unavailable

608

Cub Cadet 399316

Starter Assembly-Rewind

$

$

Currently unavailable

782

Cub Cadet 280038

Gear-Electric Starter Spur

$

$

Currently unavailable

783

Cub Cadet BS-261606

Gear-Electric Starter Piston

$

$

Not available

784

Cub Cadet 223123

Cover-Electric Starter Clutch Gear

$

$

Currently unavailable

785

Cub Cadet 271457

Gasket-Electric Starter Clutch Gear Cover

$

$

Currently unavailable

789

Cub Cadet 397637

Wiring Harness Assembly

$

$

Currently unavailable

801

Cub Cadet 398244

Motor Output End Cover and Mounting Bracket

$

$

Currently unavailable

802

Cub Cadet 396061

Cap Assembly-End

$

$

Currently unavailable

803

Cub Cadet 396059

Housing-Starter

$

$

Currently unavailable

937

Cub Cadet BS-280366

Spline-Starter

$

$

Not available

938

Cub Cadet BS-93941

Ring-Retainer
(Superseded to BS-795094)

$6.99

$

In Stock, only 1 left!

0

948

Cub Cadet 397803

Wire Assembly

$

$

Currently unavailable
