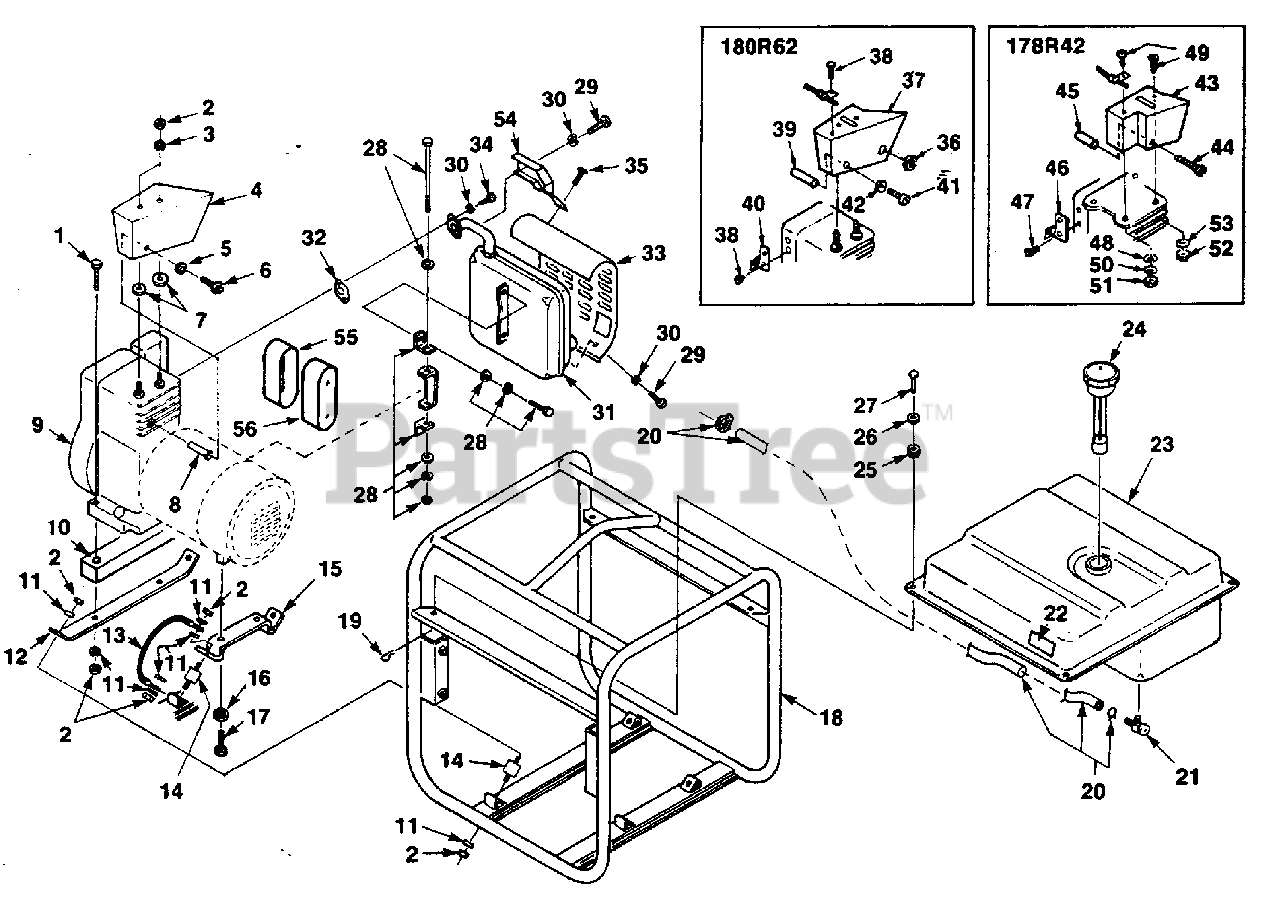

176 R42 (UT-03624) - Homelite Heavy-Duty Generator Tank, Muffler & Frame Parts Diagram

Heavy-Duty Generator

Tank, Muffler & Frame Parts Diagram

  • Title

1

Homelite 80998

SCREW Hex hd. 5/16-18 x 2 1/2 2

$

$

Not available

2

Homelite 81162

NUT-Hex 5/16-18

$

$

Not available

5

Homelite 84110

WASHER-Flat #10

$

$

Not available

6

Homelite 46044

SCREW Mach Rd. Hd. 10-24 x 1 1/2
(Superseded to UP03773)

$

$

Not available

7

Homelite 84032

WASHER-Flat

$

$

Not available

9

Homelite A49343S

ENGINE

$

$

Currently unavailable

10

Homelite 49349

SPACER

$75.99

$

Usually ships in 3-7 days

0

11

Homelite 83081

WASHER-Int. Lock 5/16

$

$

Not available

12

Homelite 49265

SUPPORT-Engine
(Superseded to UP03535)

$35.99

$

Usually ships in 3-7 days

0

13

Homelite A49399

GROUND STRAP

$

$

Currently unavailable

14

Homelite 49367

VIBRATION ISOLATOR
(Superseded to UP03483)

$

$

Not available

15

Homelite 48944

SUPPORT-Generator

$

$

Not available

16

Homelite 83033

WASHER-Lock Int.
(Superseded to 83081)

$

$

Not available

17

Homelite 82206

SCREW- Thread Forming

$5.49

$

Usually ships in 3-7 days

0

18

Homelite A493211

ROLL CAGE

$

$

Currently unavailable

19

Homelite 49412

PIN-Cotter

$

$

Not available

20

Homelite A49306

FUEL LINE ASSEMBLY
(Superseded to UP03517)

Note: Cut fuel line to the desired length

$

$

Not available

21

Homelite 49005

FUEL VALVE

$

$

Not available

22

Homelite 49385

DECAL-I.D.
(Superseded to 49646)

$

$

Not available

23

Homelite 489311

FUEL TANK

$

$

Currently unavailable

24

Homelite 49179

FUEL CAP

$

$

Not available

25

Homelite 49351

GROMMET-Isolator

$

$

Not available

26

Homelite 84006

WASHER-Flat

$

$

Not available

27

Homelite 49329

PIN-Clevis

$

$

Not available

43

Homelite 493151

DEFLECTOR-Air

$

$

Currently unavailable

44

Homelite 88159

SCREW-Hex hd

$5.49

$

Usually ships in 3-7 days

0

45

Homelite 49262

SPACER

$

$

Not available

46

Homelite 49369

BRACKET-Lite

$8.99

$

Usually ships in 3-7 days

0

47

Homelite 82279

SCREW #8-18 x 3/8

$2.99

$

Usually ships in 3-7 days

0

48

Homelite 84020

WASHER-Flat- 1/4

$

$

Not available

49

Homelite 82496

SCREW-Cap hex 1/4-20 x 1"

$

$

Not available

50

Homelite 83009

WASHER-Lock 1/4"

$9.99

$

Usually ships in 3-7 days

0

51

Homelite 81267

NUT-Hex 1/4-20

$

$

Not available

52

Homelite 81162

NUT-Hex 5/16-18

$

$

Not available

53

Homelite 83030

WASHER

$

$

Not available
