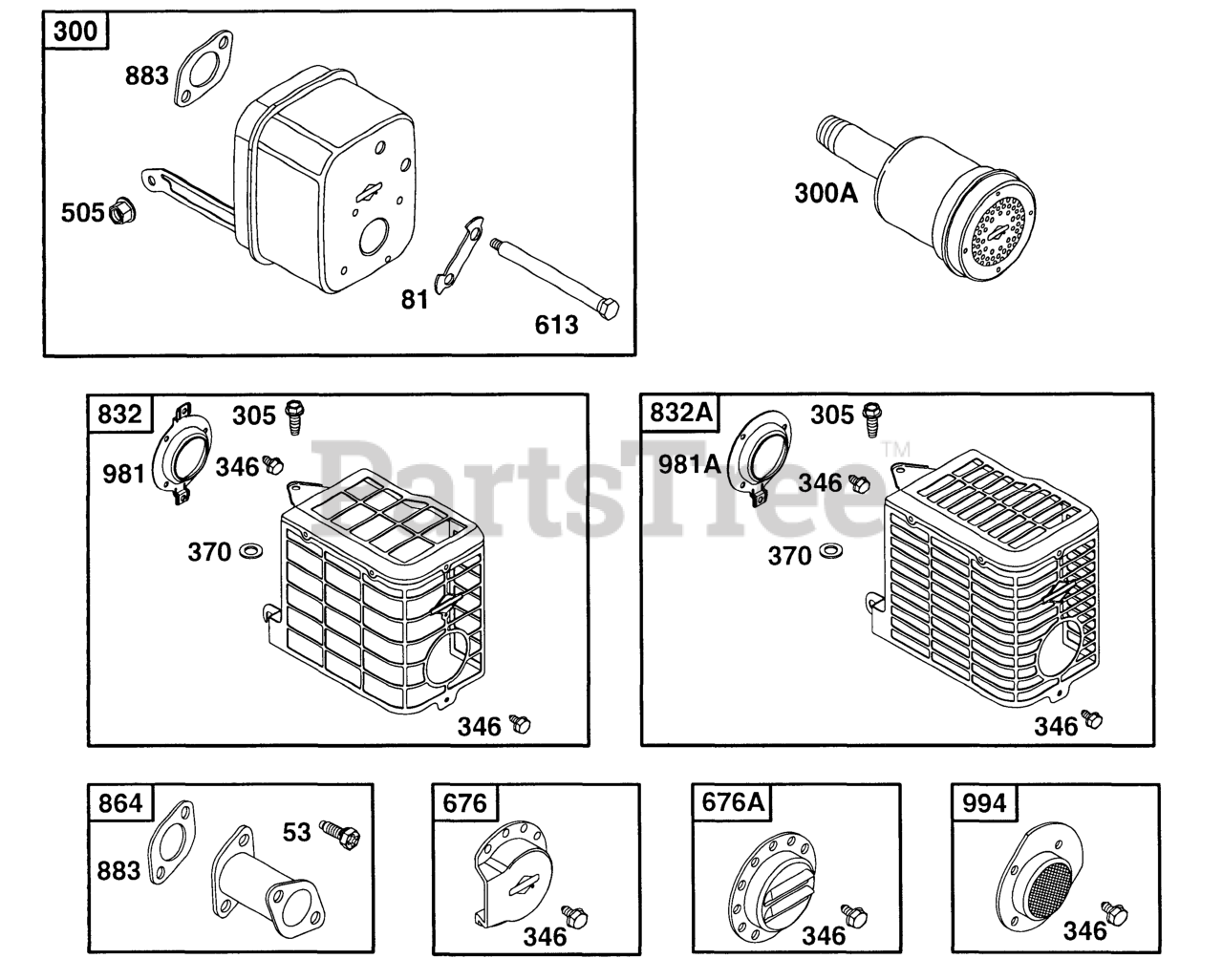

176432-0101-01 - Briggs & Stratton Horizontal Engine Muffler Grps Parts Diagram

Horizontal Engine

Muffler Grps Parts Diagram

  • Title

53

Briggs & Stratton 94706

Screw, Sem Hex Head
(Superseded to 691665)

$7.99

$

In Stock, Qty 6

0

53

Briggs & Stratton 94778

Stud, Collar
(Superseded to 691672)

$8.49

$

In Stock, Qty 6

0

81

Briggs & Stratton 222263

Lock, Screw Head (3/8" Dia. Bolt Holes)
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

300A

Briggs & Stratton 496127

Muffler-Exhaust
(Superseded to 692025)

$41.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 497141

Muffler-Exhaust

$102.99

$

In Stock, only 4 left!

0

305

Briggs & Stratton 94786

Screw, Machine Hex (1/2" Long)
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

370

Briggs & Stratton 94856

Washer-Flat
(Superseded to 691113)

$3.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 94726

Nut, Hex Flange
(Superseded to 691105)

$7.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 94054

Screw, Shoulder Muf
(Superseded to 691351)

$8.49

$

In Stock, only 4 left!

0

676A

Briggs & Stratton 393758

Deflector-Muff (Louvered Outlet)

$26.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393757

Deflector-Muff (Side Outlet)
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

832A

Briggs & Stratton 496739

Guard-Muffler
(Superseded to 691447)

$120.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 498236

Guard-Muffler
(Superseded to 691447)

$120.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 497140

Adapter-Muffler

$63.99

$

In Stock, only 3 left!

0

883

Briggs & Stratton 272309

Gasket-Muffler
(Superseded to 692237)

Note: Included in Valve Overhaul Gasket Set-Part No. 498534. Included in Gasket Set-Part No. 497070

$5.49

$

In Stock, Qty 20+

0

981A

Briggs & Stratton 225006

Bracket-Muffler Guard
(Superseded to 691447)

$120.99

$

Usually ships in 2-12 days

0

981

Briggs & Stratton 225214

Bracket-Muffler Guard
(Superseded to 691228)

$16.99

$

Usually ships in 2-12 days

0

994

Briggs & Stratton 399541

Spark Arrester

$28.99

$

Usually ships in 2-12 days

0
