176452-0049-01 - Briggs & Stratton Horizontal Engine Crankcase Cover Parts Diagram

Horizontal Engine

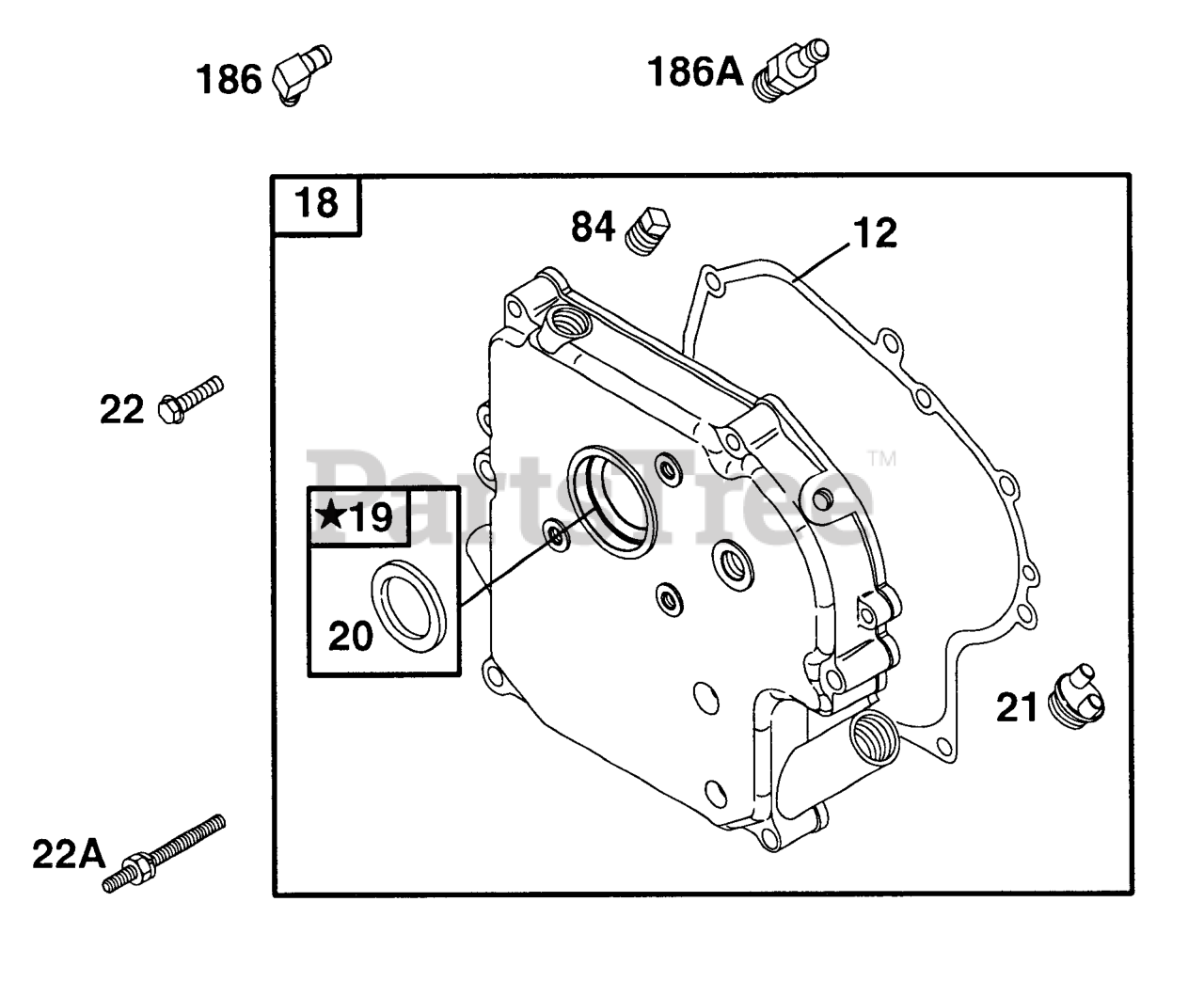

Crankcase Cover Parts Diagram

  • Title
12

Briggs & Stratton 271701

Gasket, Crankcase (.015")
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 497070

$8.99

$

In Stock, Qty 10

0

12

Briggs & Stratton 27876

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 497070

$8.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 27877

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 497070

$10.99

$

In Stock, only 3 left!

0

18

Briggs & Stratton 496983

Cover-Crankcase

$97.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295964

Bushing-Crankcase Cover

$35.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 497070

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, only 4 left!

0

22A

Briggs & Stratton 94931

Stud, Sems (2 1/2" Long)
(Superseded to 691695)

$6.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, Qty 7

0

84

Briggs & Stratton 91488

Plug, Pipe (1/8")
(Superseded to 794903)

$5.49

$

In Stock, only 1 left!

0

186A

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

$14.99

$

In Stock, Qty 5

0

186

Briggs & Stratton 67218

Connector, Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 8

0
