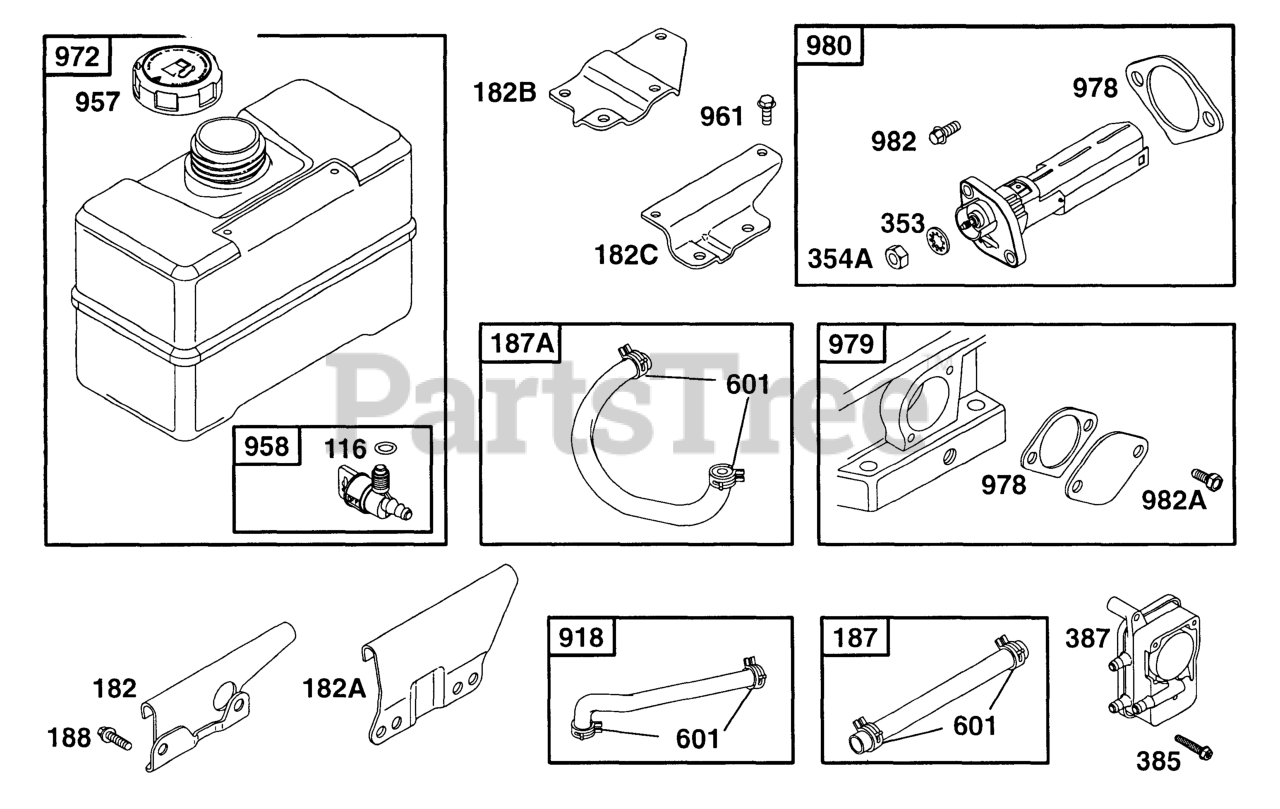

176452-0049-01 - Briggs & Stratton Horizontal Engine Fuel Tank Grp, Oil Gard Parts Diagram

Horizontal Engine

Fuel Tank Grp, Oil Gard Parts Diagram

  • Title

116

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 497070

$4.49

$

In Stock, only 2 left!

0

116

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 4 left!

0

182C

Briggs & Stratton 495664

Bracket-Fuel Tank (Upper)

Note: Include(s): 94733 Stud-Hex. Drive 94726 Nut-Hex.

$

$

Not available

182B

Briggs & Stratton 224854

Bracket-Fuel Tank
(Superseded to 691199)

$14.99

$

Usually ships in 2-12 days

0

182A

Briggs & Stratton 492990

Bracket-Fuel Tank (Lower)
(Superseded to 694592)

$17.99

$

In Stock, only 1 left!

0

182

Briggs & Stratton 224855

Bracket-Fuel Tank
(Superseded to 690486)

$15.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 497029

Line-Fuel (Molded)

$16.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296004

Line-Fuel (23" Cut To Length)
(Superseded to 791745)

$10.99

$

In Stock, Qty 7

0

188

Briggs & Stratton 94627

Screw, Sem Hex Head
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

354A

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

385

Briggs & Stratton 94789

Screw-Hex.
(Superseded to 691673)

$3.99

$

In Stock, only 1 left!

0

387

Briggs & Stratton 496257

Pump-Fuel
(Superseded to 799056)

$30.99

$

In Stock, only 3 left!

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

918

Briggs & Stratton 497457

Hose-Vacuum

$9.49

$

In Stock, only 2 left!

0

957

Briggs & Stratton 493988

Cap, Tank (Plastic)
(Superseded to 799719)

$40.99

$

In Stock, only 1 left!

0

958

Briggs & Stratton 399517

Vlv-Shut Off Plas (Plastic)
(Superseded to 698182)

$

$

Not available

961

Briggs & Stratton 94095

Screw, Tapping Hex
(Superseded to 690708)

$2.99

$

Usually ships in 2-12 days

0

972

Briggs & Stratton 493337

Tank/Cap Black Assy (4 Quart Plastic)
(Superseded to 691993)

$166.99

$

In Stock, Qty 13

0

978

Briggs & Stratton 271736

Gasket, Switch
(Superseded to 273326S)

Note: Included in Gasket Set-Part No. 497070

$7.49

$

Usually ships in 2-12 days

0

979

Briggs & Stratton 494807

Cover-Oil Guard
(Superseded to 691382)

$4.99

$

Usually ships in 2-12 days

0

980

Briggs & Stratton 398182

Switch-Oil Gard

$102.99

$

In Stock, only 1 left!

0

982A

Briggs & Stratton 94658

Screw, Hex Wash Hd
(Superseded to 690351)

$3.99

$

In Stock, only 2 left!

0

982

Briggs & Stratton 94657

Screw, Hex Wash Hd
(Superseded to 690350)

$3.99

$

Usually ships in 2-12 days

0
