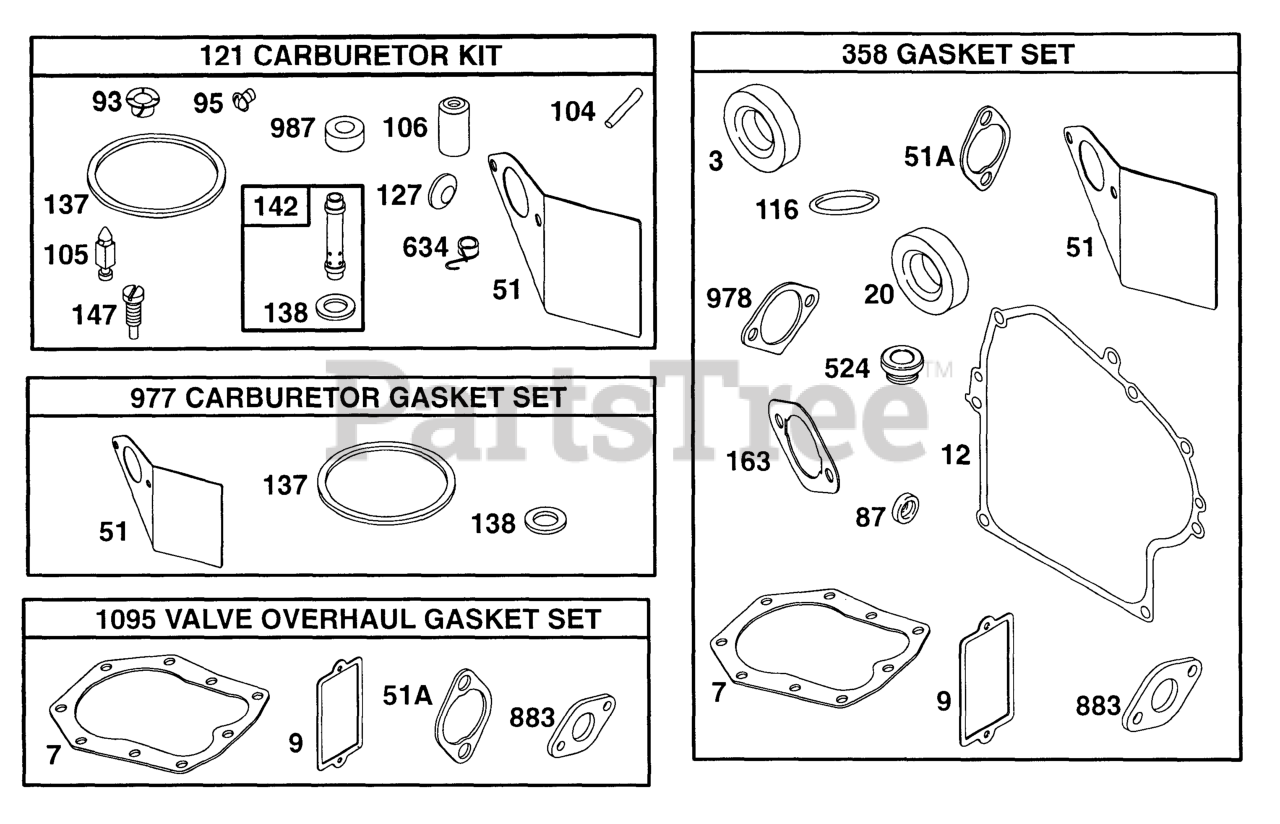

176452-0049-01 - Briggs & Stratton Horizontal Engine Gasket Sets Parts Diagram

Horizontal Engine

Gasket Sets Parts Diagram

  • Title
3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 497070

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272163

Gasket-Cylinder Head
(Superseded to 272163S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498534. Included in Gasket Set-Part No. 497070

$7.99

$

In Stock, Qty 18

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498534. Included in Gasket Set-Part No. 497070

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 271701

Gasket, Crankcase (.015")
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 497070

$8.99

$

In Stock, Qty 10

0

12

Briggs & Stratton 27876

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 497070

$8.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 27877

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 497070

$10.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 497070

$6.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 272707

Gasket-Intake
(Superseded to 691885)

Note: Included in Valve Overhaul Gasket Set-Part No. 498534. Included in Gasket Set-Part No. 497070

$4.99

$

In Stock, Qty 16

0

51

Briggs & Stratton 272708

Gasket-Intake
(Superseded to 691886)

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-Part No. 497069. Included in Gasket Set-Part No. 497070

$

$

Not available

87

Briggs & Stratton 491323

Seal, Governor Arm
(Superseded to 692407)

Note: Included in Gasket Set-Part No. 497070

$7.99

$

In Stock, Qty 11

0

93

Briggs & Stratton 281346

Bushing-Throttle Shaft
(Superseded to 690602)

Note: Included in Carburetor Kit-See Ref. No. 121

$9.49

$

In Stock, only 1 left!

0

95

Briggs & Stratton 94098

Screw, Round Washer
(Superseded to 691636)

Note: Included in Carburetor Kit-See Ref. No. 121

$3.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 231789

Pin-Float Hinge
(Superseded to 690525)

Note: Included in Carburetor Kit-See Ref. No. 121

$4.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 231935

Valve-Needle
(Superseded to 691782)

Note: Included in Carburetor Kit-See Ref. No. 121

$18.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 231856

Seat, Inlet (Pump Feed)
(Superseded to 691780)

Note: Included in Carburetor Kit-See Ref. No. 121

$10.99

$

In Stock, only 1 left!

0

116

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 497070

$4.49

$

In Stock, Qty 5

0

116

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 4 left!

0

121

Briggs & Stratton 497041

Carburetor Kit
(Superseded to 497578)

Note: Used Before Code Date 94090100

$

$

Not available

121

Briggs & Stratton 497578

Carburetor Kit

$

$

Not available

127

No Nomenclature

Note: Included in Carburetor Kit-See Ref. No. 121

$

$

Not available

137

Briggs & Stratton 281165

Gasket-Float Bowl
(Superseded to 281165S)

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-Part No. 497069

$4.99

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer-Seal
(Superseded to 692255)

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-Part No. 497069

$5.49

$

In Stock, Qty 19

0

142

Briggs & Stratton 497040

Nozzle-Carburetor (High Altitude, Lmt 69, 103, 115)

$27.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497196

Nozzle-Carburetor (Standard, Lmt 69, 103, 115)

Note: Included in Carburetor Kit-See Ref. No. 121

$30.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 499094

Nozzle-Carburetor (Std, Lmt 171)

$18.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 499111

Nozzle-Carburetor (High Altitude, Altitude, Lmt 170,171)

$27.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497472

Jet-Pilot

Note: Included in Carburetor Kit-See Ref. No. 121 (LMT 1,2,3,4,5,7,33,34,37,38,39,40,41,63, 65, 66,77,78,79,80,81,89,97,98,100,101,102,103,113,114,115,116,117,119)

$22.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 272706

Gasket, Air Cleaner (Included In Gasket Sets Packaged)
(Superseded to 692277)

Note: Used Before Code Date 95010200

$6.99

$

In Stock, only 4 left!

0

163

Briggs & Stratton 273101

Gasket, Air Cleaner
(Superseded to 692277)

Note: Included in Gasket Set-Part No. 497070 (LMT 69, 103) (Included in Gasket Sets Packaged)

$6.99

$

In Stock, only 4 left!

0

358

$55.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 281370

Seal-Tube
(Superseded to 281370S)

Note: Included in Gasket Set-Part No. 497070

$8.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 494455

Spring & Seal Assem (Choke-A-Matic)
(Superseded to 690802)

Note: Included in Carburetor Kit-See Ref. No. 121

$9.49

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272309

Gasket-Muffler
(Superseded to 692237)

Note: Included in Valve Overhaul Gasket Set-Part No. 498534. Included in Gasket Set-Part No. 497070

$5.49

$

In Stock, Qty 20+

0

977

Briggs & Stratton 497069

Gasket Set-Carburetor
(Superseded to 497849)

$69.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 271736

Gasket, Switch
(Superseded to 273326S)

Note: Included in Gasket Set-Part No. 497070

$7.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 281166

Seal-Throttle Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-See Ref. No. 121

$5.49

$

In Stock, only 1 left!

0

1095

Briggs & Stratton 498534

Gasket Set-Valve Overhaul

$28.99

$

Usually ships in 2-12 days

0
