1767251 - Troy-Bilt Blade Angling Kit Blade Angling Kit Parts Diagram

Blade Angling Kit

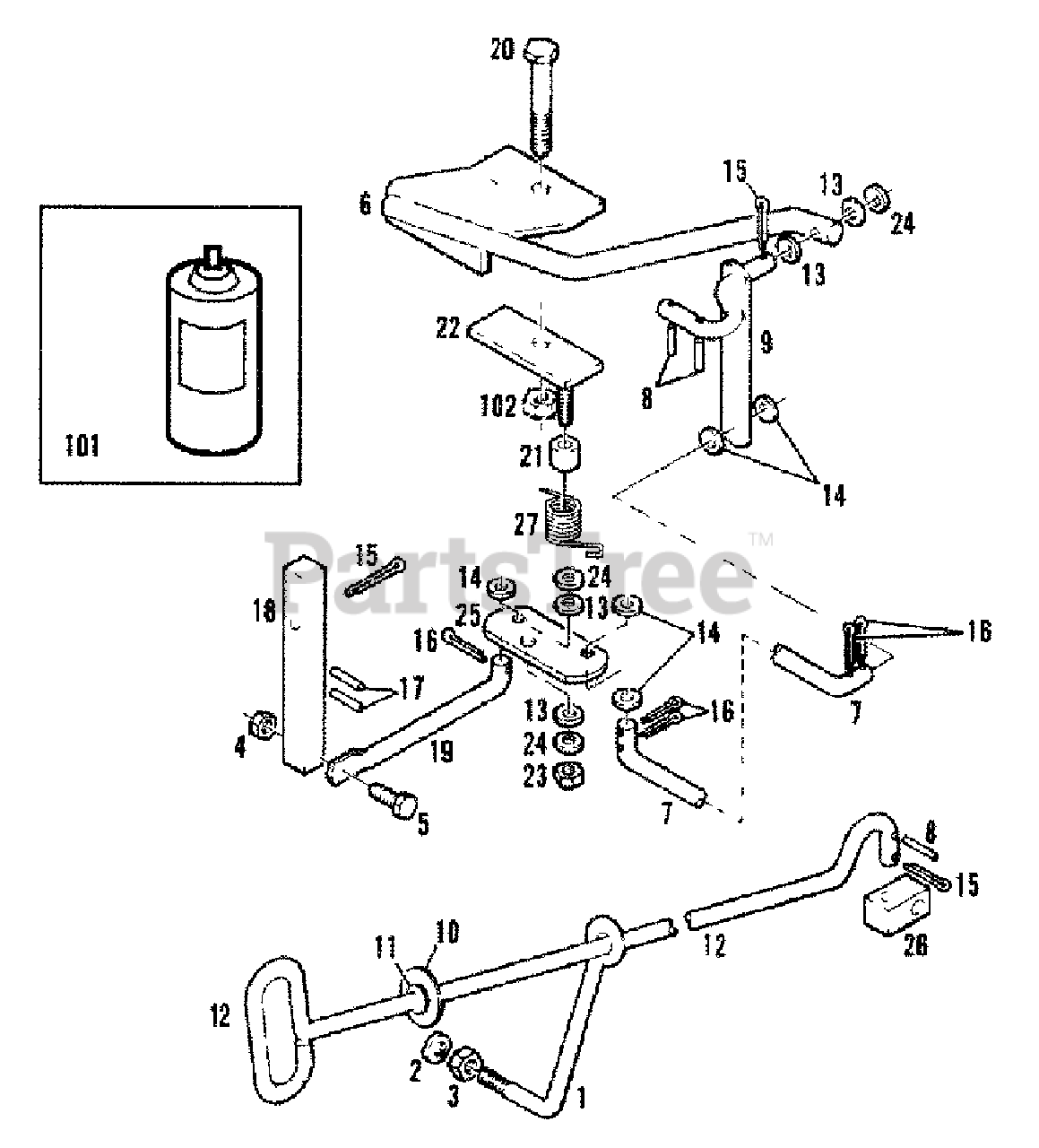

Blade Angling Kit Parts Diagram

  • Title

1

MTD 1726087

Special Eye Bolt

$

$

Not available

2

Troy-Bilt 1100243

Washer, 3/8
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

3

MTD 1186259

Hex Not, 3/8-16

$

$

Not available

4

Troy-Bilt 1734398

Top Locknut, 1/4-20
(Superseded to 912-0291)

$

$

Not available

5

Troy-Bilt 1100069

Bolt, 1/4-20 x 1
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 19

0

6

Troy-Bilt 1737350001

Mounting Plate

$

$

Currently unavailable

7

MTD 1737273

Link Rod

$

$

Not available

8

MTD 1177625

Roll Pin, 1/8 x 3/4

$

$

Not available

9

Troy-Bilt 1737050

Adjustment Lever

$

$

Currently unavailable

10

Troy-Bilt 1737358

Instruction Plate

$

$

Currently unavailable

11

MTD 1734934

Rubber Grommet

$

$

Not available

12

Troy-Bilt 1737061

Rod and Crank Handle

$

$

Currently unavailable

13

Troy-Bilt 1737059

Nylon Washer

$

$

Currently unavailable

14

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

15

Troy-Bilt 1100349

Cotter Pin, 1/8 x 3/4
(Superseded to 914-0474)

$

$

Not available

16

MTD 1100362

Cotter Pin, 3/32 x 1/2

$

$

Not available

17

Troy-Bilt 1704692

Roll Pin, 1/8 x 1

$

$

Not available

18

Troy-Bilt 1737057

Latch Pin

$

$

Currently unavailable

19

MTD 1737271

Lever Link

$

$

Not available

20

Troy-Bilt 1737867

Bolt, 5/8-1 x 3-1/2

$

$

Currently unavailable

21

Troy-Bilt 1725619

Spacer

$

$

Currently unavailable

22

Troy-Bilt 1737353

Mounting Pad

$

$

Currently unavailable

23

Troy-Bilt 1733398

Top Locknut, 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 1737052001

Pivot Latch Lever

$

$

Currently unavailable

26

Troy-Bilt 1731433

Swivel Block

$

$

Currently unavailable

27

MTD 1754332

Torsion Spring

$

$

Not available

101

Troy-Bilt 1735222

Buck Spray Paint 13 oz. can
(Superseded to 788-0637A)

Note: Not included with kit; order separately.

$

$

Not available

102

Troy-Bilt 1110112

Locknut, 5/8-11
(Superseded to 912-0261)

Note: Furnished with snowblade. Not included with kit; order separately.

$

$

Not available
