1770-0 - Generac 2,300 PSI Pressure Washer Main Unit Parts Diagram

2,300 PSI Pressure Washer

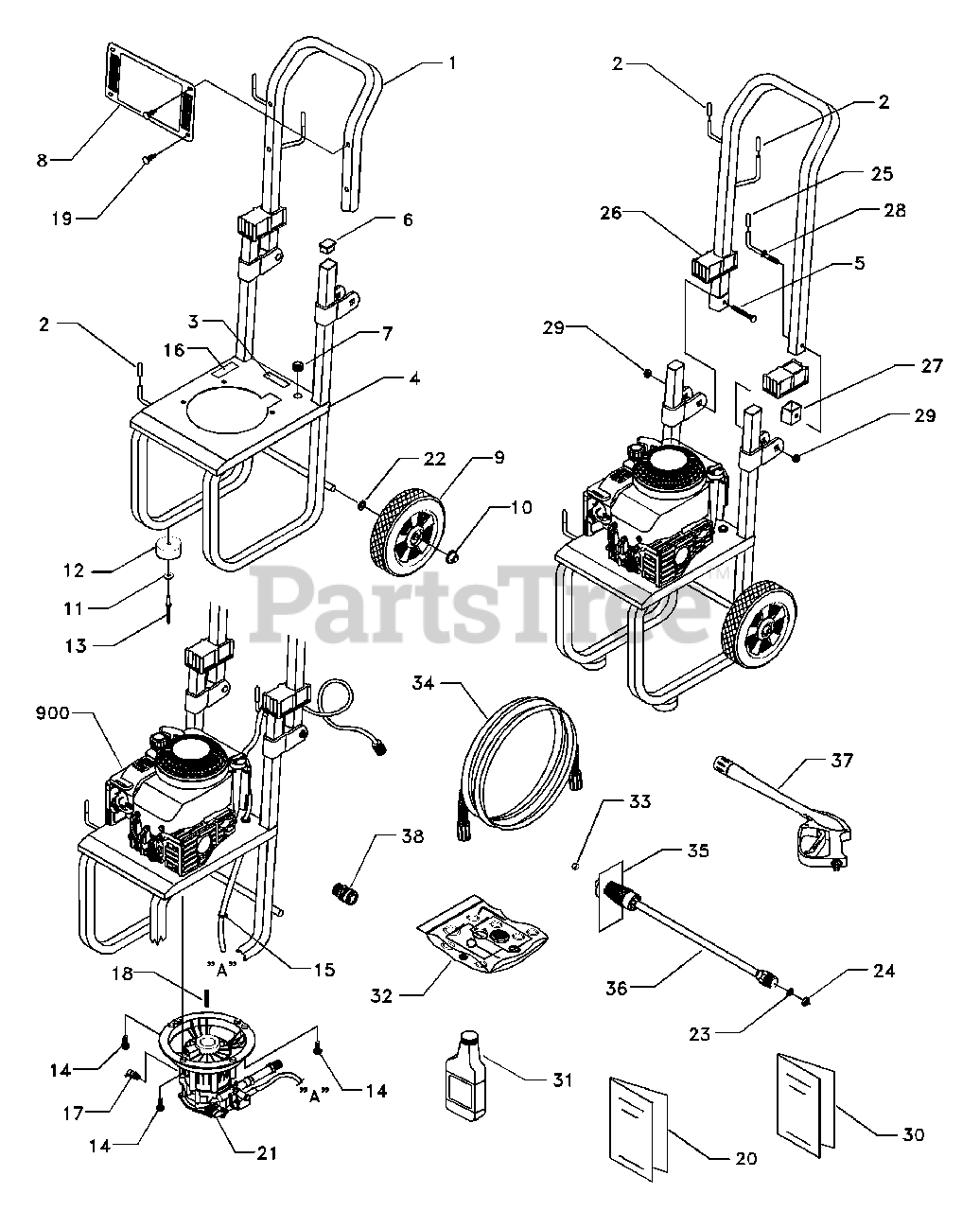

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton AB3330GS

HANDLE, Generac Red Powder Coat

$32.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B2516GS

CAP,Vinyl

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 20566GS

DECAL, 1-800 Number

$1.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton AB3307GS

BASE, Generac Red Powder Coated

$100.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B3085GS

CARRIAGE BOLT

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 81895GS

CAP, Plug

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 30809GS

GROMMET, Chemical Hose

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 191148GS

DECALS/BILLBOARD, 01770

$36.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 21206GS

TIRE, Black Mag

$21.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190146GS

PUSHNUT

$9.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 71693GS

WASHER, Special

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 27007GS

MOUNT,Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

13

Briggs & Stratton 188194GS

RIVET, Blind

$1.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 75246GS

TAPTITE

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 48031BGS

CLAMP, Hose Band

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 187952GS

DECAL, Cool Down

$8.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 21783GS

VALVE,Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 11

0

18

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B1797GS

FASTENER, Clip

$3.99

$

In Stock, Qty 6

0

20

Briggs & Stratton 191139GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 189970GS

ASSEMBLY, Pump
(Superseded to 193568GS)

Note: (See "Pump" illustration and parts list)

$234.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 49808GS

WASHER, Flat

$3.99

$

In Stock, only 4 left!

0

23

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 97837GS

O-RING, Hi Pressure Trns

$3.49

$

In Stock, Qty 9

0

25

Briggs & Stratton B1460GS

CAP,Vinyl

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B2791GS

COVER, Hinge

$7.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B2790GS

CAP, End

$2.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B2759AGS

HOOK, Chemical Bottle

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B2071GS

NUT, Locking Flange
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B3356GS

MANUAL, Engine
(Superseded to 380567TRI)

$

$

Not available

31

Briggs & Stratton BB3061BGS

OIL, Engine
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

32

Briggs & Stratton 190862GS

KIT, Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 21761GS

NOZZLE, Replacement

$20.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 190249GS

HOSE
(Superseded to 708962)

$

$

Not available

35

Briggs & Stratton 97566GS

TAG, Nozzle Instructions

$1.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B3335GS

WAND,Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 3 left!

0

37

Briggs & Stratton B3263AGS

GUN, High Pressure

$58.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 95518GS

ADAPTER, Quick Connect
(Superseded to 312981GS)

$39.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable
