1772 (149-711-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Fuel Injection Pump & Camshaft Parts Diagram

Super Garden Tractor

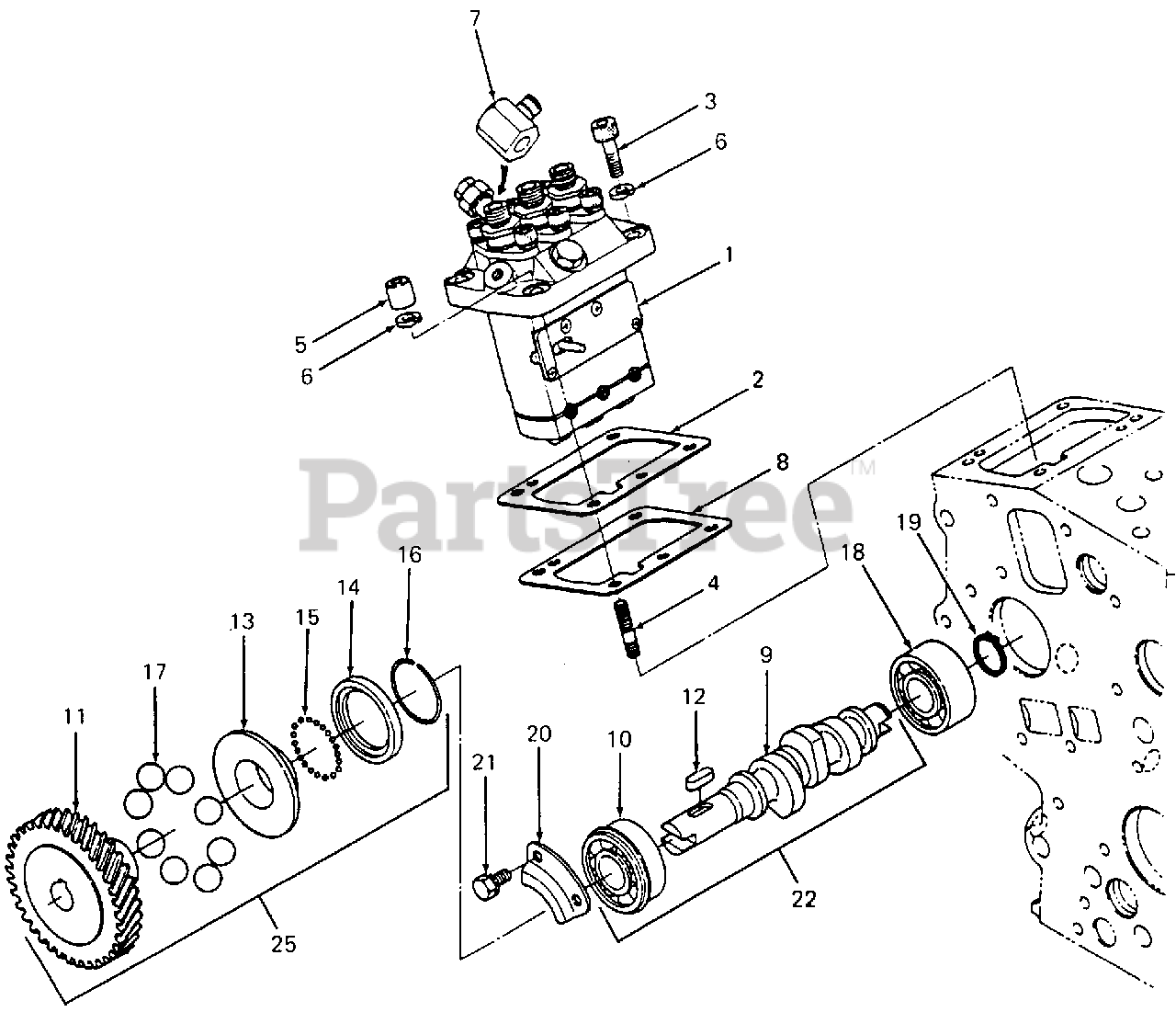

Fuel Injection Pump & Camshaft Parts Diagram

  • Title
1

Cub Cadet KB-15862-51010

Pump, Injection

$

$

Not available

2

Cub Cadet KB-15861-52110

Shim, Injection Pump
(Superseded to KB-16006-52092)

$

$

Not available

3

Cub Cadet KB-01311-10620

Screw, Socket Head

$

$

Not available

$

$

Currently unavailable

$

$

Not available

6

Cub Cadet KB-04512-50060

Washer, Lock
(Superseded to KB-04512-70060)

$

$

Not available

$

$

Not available

8

Cub Cadet KB-15861-52120

Shim, Injection Pump
(Superseded to KB-16006-52112)

$

$

Not available

9

Cub Cadet KB-15875-16170

Camshaft, Fuel Injection

$

$

Not available

10

Cub Cadet KB-08153-06203

Bearing, Ball

$

$

Not available

11

Cub Cadet KB-15841-51150

Gear, Injection Pump

$

$

Not available

$

$

Not available

13

Cub Cadet KB-15841-55450

Sleeve, Governor

$

$

Not available

14

Cub Cadet KB-15841-55690

Case, Governor Ball

$

$

Not available

15

Cub Cadet KB-07715-00801

Ball, Metal, 1/8 Dia

$

$

Not available

16

Cub Cadet KB-15261-55470

Ring, Governor Sleeve Retaining

$

$

Not available

17

Cub Cadet KB-07715-03217

Ball, Metal, 17/32 Dia

$

$

Not available

18

Cub Cadet KB-08103-06203

Bearing, Ball

$

$

Not available

19

Cub Cadet KB-04612-00170

Ring, External Retaining

$

$

Currently unavailable

20

Cub Cadet KB-15841-16320

Stop, Fuel Camshaft

$

$

Not available

21

Cub Cadet KB-01023-50612

Screw, Hex Cap w/Washer

$

$

Not available

22

Cub Cadet KB-15875-16020

Camshaft Assy, Fuel Injection

Note: [Includes Ref No. 9, 10, 11, 12, 13, 14, 15 (Qty 32), 16 & 17 (Qty 8)]

$

$

Not available

25

Cub Cadet KB-15875-16020

Camshaft Assy, Fuel Injection

Note: [Includes Ref No. 9, 10, 11, 12, 13, 14, 15 (Qty 32), 16 & 17 (Qty 8)]

$

$

Not available
