1772 (149-711-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Hood & Grille Parts Diagram

Super Garden Tractor

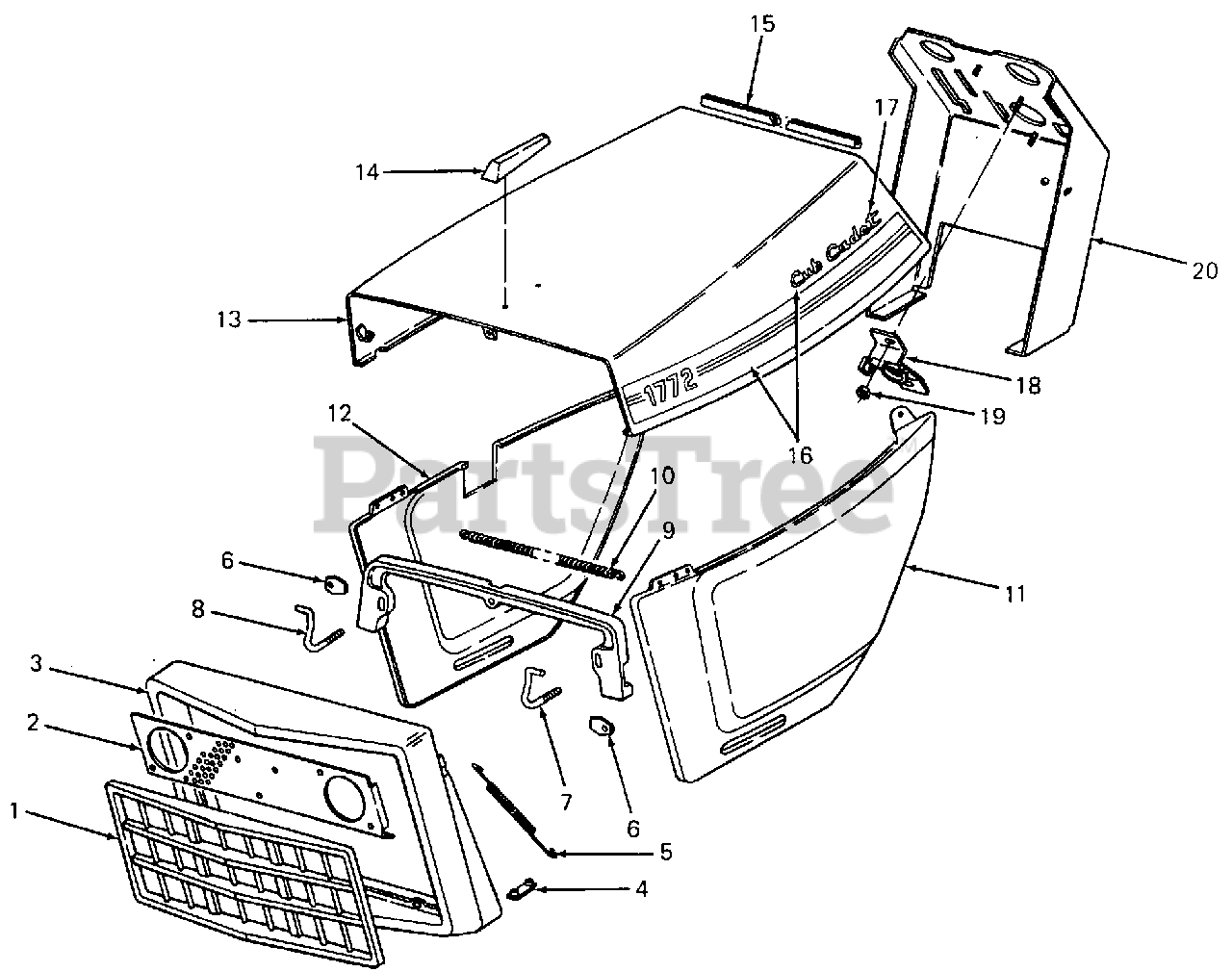

Hood & Grille Parts Diagram

  • Title

1

Cub Cadet 719-3003

Grille, Insert

$

$

Currently unavailable

2

Cub Cadet 703-0165

Screen, Grille

Variations

Cub Cadet 703-0165-0637

SCREEN, GRILLE - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 719-3002

Housing, Grille

$

$

Currently unavailable

Cub Cadet 726-3015

Clip, Cable
(Superseded to 726-3008)

$5.49

$

Usually ships in 3-6 days

0

Cub Cadet 710-3021

Screw, Hex Washer Tapp, 5/16-18 X .62 Lg

$

$

Not available

4

Cub Cadet 703-0008

Retainer, Grille Housing

$

$

Not available

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 710-3002

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5
(Superseded to 710-0376)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 732-3001

Spring
(Superseded to 932-3001)

$17.99

$

In Stock, Qty 6

0

6

Cub Cadet 703-0063

Plate, Hood Hinge

$

$

Not available

Cub Cadet 710-3004

Screw, Hex Cutting, 5/16-18 X .75 Lg
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 747-3009

Hinge, LH - Hood

$

$

Not available

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$4.49

$

In Stock, Qty 7

0

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 14

0

8

Cub Cadet 747-3010

Hinge, RH - Hood
(Superseded to 947-3010)

$

$

Not available

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$4.49

$

In Stock, Qty 7

0

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 14

0

9

Cub Cadet 703-1753

Support, Hood

$

$

Currently unavailable

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 13

0

Cub Cadet 710-0578

Screw, Phillips Drive Mach, 1/4-20 X 1.5 Lg

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-0463

Washer, Flat, .25 X .62 X .052 Thk

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-3006

Washer, Int/Ext Lock, 1/4 Dia

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 732-3006

Spring, Side Panel
(Superseded to 932-3006)

$

$

Not available

11

Cub Cadet 703-1076

Panel, LH - Side

Variations

Cub Cadet 703-1076-0499

PANEL (LH) SIDE (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

$

$

Cub Cadet 736-0463

Washer, Flat, .251 X .62 X .052 Thk

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3044

Nut, Wing, 1/4-20

$

$

Not available

12

Cub Cadet 703-1077

Panel, RH - Side

$

$

Not available

Cub Cadet 736-0463

Washer, Flat, .251 X .62 X .052 Thk

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3044

Nut, Wing, 1/4-20

$

$

Not available

13

Cub Cadet 703-0947

Hood

Variations

Cub Cadet 703-0947-0499

HOOD ASSEMBLY - CUB BEIGE (0499)

$

$

Not available

$

$

Cub Cadet 779-3496

Label, General Information & Adjustment

$

$

Currently unavailable

Cub Cadet 779-3296

Label, Booster Battery

$8.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-3059

Ornament, Hood

$

$

Currently unavailable

Cub Cadet 710-3016

Screw, Pan Hd Tapp #8-18 X .25 Lg

$

$

Not available

Cub Cadet 710-0227

Screw, Hex Wash Hd Tapp, #8 X .50 Lg

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0142

Washer, Flat, .281 X .50 X .063 Thk

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 731-3003

Seal, Edge
(Superseded to 731-0511-29)

$51.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 759-3442

Kit - Hood Label

Note: [Includes Ref No. 17 (Qty 2)]

$

$

Not available

17

Cub Cadet 731-3053A

Graphic, Cub Cadet Script w/Adhesive
(Superseded to 931-3053A)

$26.99

$

In Stock, only 2 left!

0

18

Cub Cadet 703-0260

Support, Steering Column

$

$

Currently unavailable

Cub Cadet 710-0111

Bolt, Carriage, 1/4-20 X 1.25 Lg

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0463

Washer, Flat, .251 X .62 X .052 Thk

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, only 4 left!

0

20

Cub Cadet 703-1008

Pedestal

$

$

Currently unavailable

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 726-3009

Clip, Cable

$

$

Not available
