1772 (149-711-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Injection Pump Nozzles, Pipes & Glow Plugs Parts Diagram

Super Garden Tractor

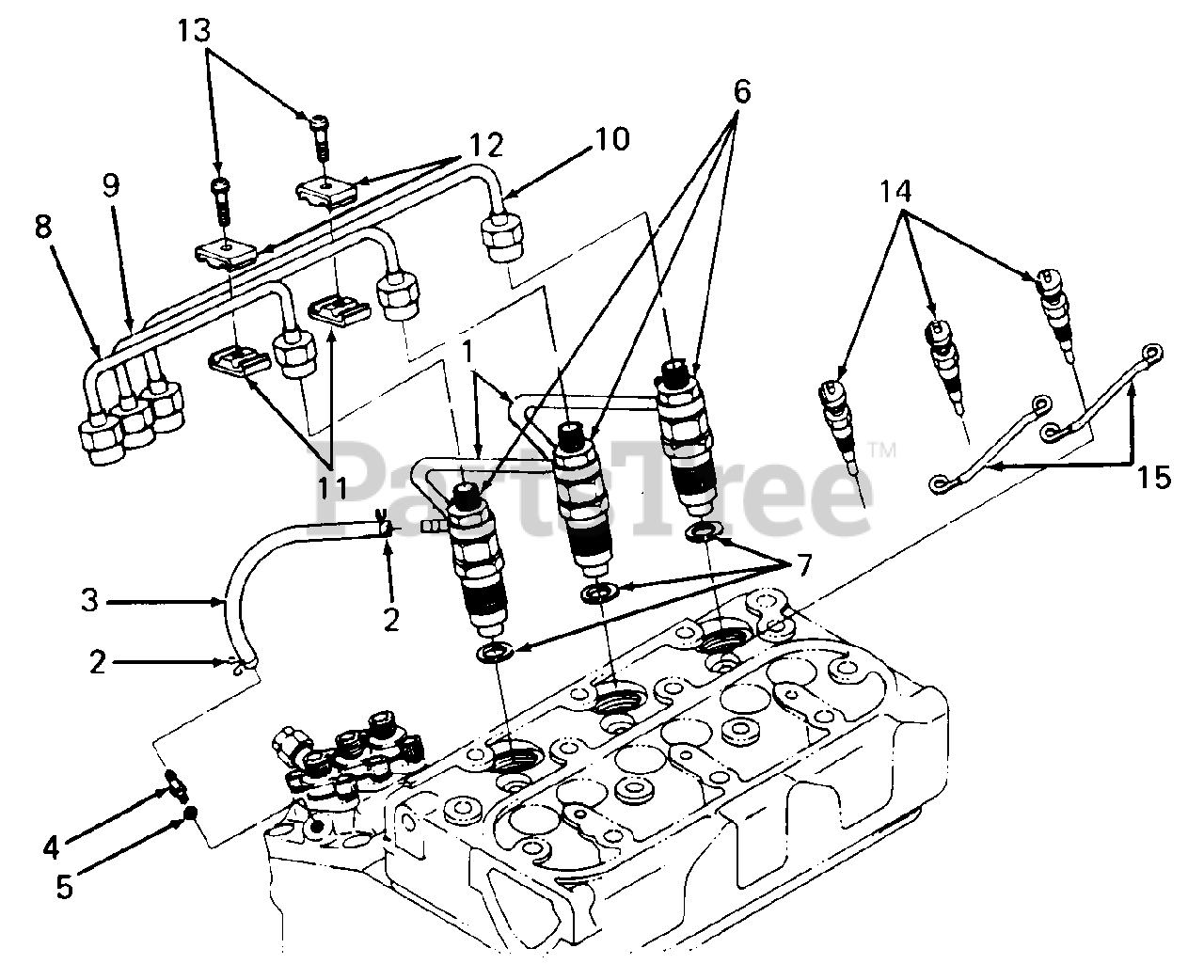

Injection Pump Nozzles, Pipes & Glow Plugs Parts Diagram

  • Title

1

Cub Cadet KB-15862-42500

Pipe, Overflow
(Superseded to KB-15862-42502)

$

$

Not available

2

Cub Cadet KB-14971-42750

Clamp, Pipe

$

$

Not available

3

Cub Cadet KB-15841-42500

Pipe, Overflow

Note: [Includes Ref No. 2 (Qty 2)]

$

$

Not available

4

Cub Cadet KB-15841-51360

Fitting

$

$

Not available

5

Cub Cadet KB-15601-96650

Gasket

$

$

Not available

6

Cub Cadet KB-19667-53000

Nozzle, Injection
(Superseded to KB-1G111-53000)

$

$

Not available

7

Cub Cadet KB-15841-53620

Gasket
(Superseded to KB-15841-53622)

$

$

Not available

8

Cub Cadet KB-15841-53710

Pipe, Injection - 1

$

$

Not available

9

Cub Cadet KB-15841-53720

Pipe, Injection - 2

$

$

Not available

10

Cub Cadet KB-15861-53730

Pipe, Injection - 3

$

$

Not available

11

Cub Cadet KB-15841-53850

Clamp, Pipe

$

$

Not available

12

Cub Cadet KB-15841-53860

Clamp, Pipe

$

$

Not available

13

Cub Cadet KB-03024-50520

Screw w/Washer

$

$

Not available

14

Cub Cadet KB-15694-65510

Plug, Glow
(Superseded to KB-15694-65512)

$147.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KB-15841-65560

Wire, Glow Plug

$

$

Not available
