17740 - Lawn-Boy Snow Thrower (SN: 400000000 - 999999999) Chute Assembly Parts Diagram

Snow Thrower

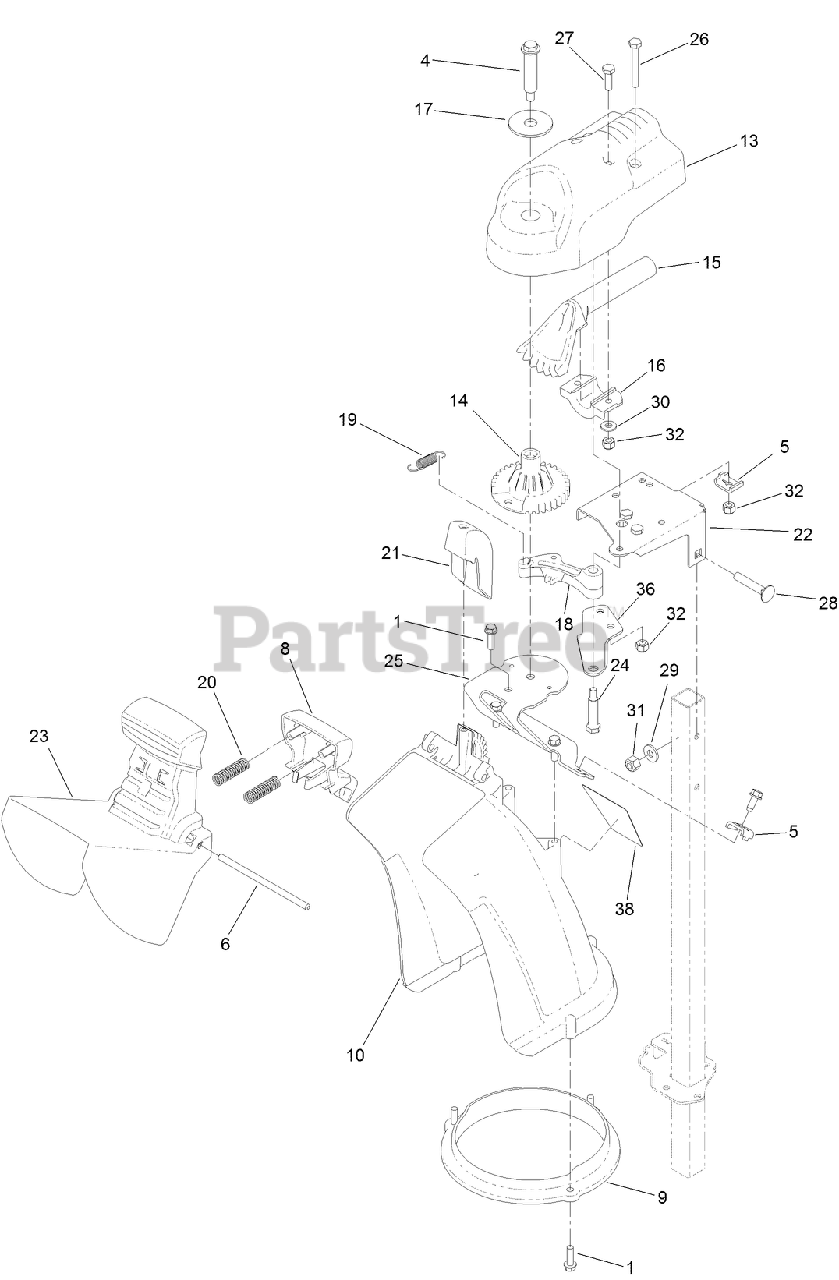

Chute Assembly Parts Diagram

  • Title

1

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 136-7199

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 136-7191

CLAMP-CABLE

$4.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 136-8672

HINGE PIN-DEFLECTOR

$3.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 139-1557

TRIGGER-DEFLECTOR

$8.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 119-7627

RING-CHUTE

$8.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 133-5590

CHUTE-DISCHARGE

$42.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 120-3852

MOUNT-CHUTE, DISCHARGE

$30.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 120-3853

GEAR-CHUTE

$8.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 120-3854

GEAR-BEVEL

$9.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 120-3855

MOUNT-GEAR, BEVEL

$2.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 120-3856

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 120-3869

LATCH-CHUTE

$3.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 136-7154

SPRING, CHUTE LATCH

$3.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 136-7136

SPRING-COMPRESSION

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 120-9299

CHUTE-COVER

$2.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 121-1207-03

BRACKET-SUPPORT, CHUTE

$8.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 119-7629

DEFLECTOR-CHUTE

$26.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 136-7195

BOLT, SHOULDER

$1.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 121-1237-03

BRACKET-MOUNT, CHUTE

$13.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 7

0

29

Lawn-Boy 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 121-6843

BRACKET-SUPPORT, LATCH

$2.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 125-1121

DECAL-GUARANTEE

$6.99

$

Usually ships in 3-6 days
