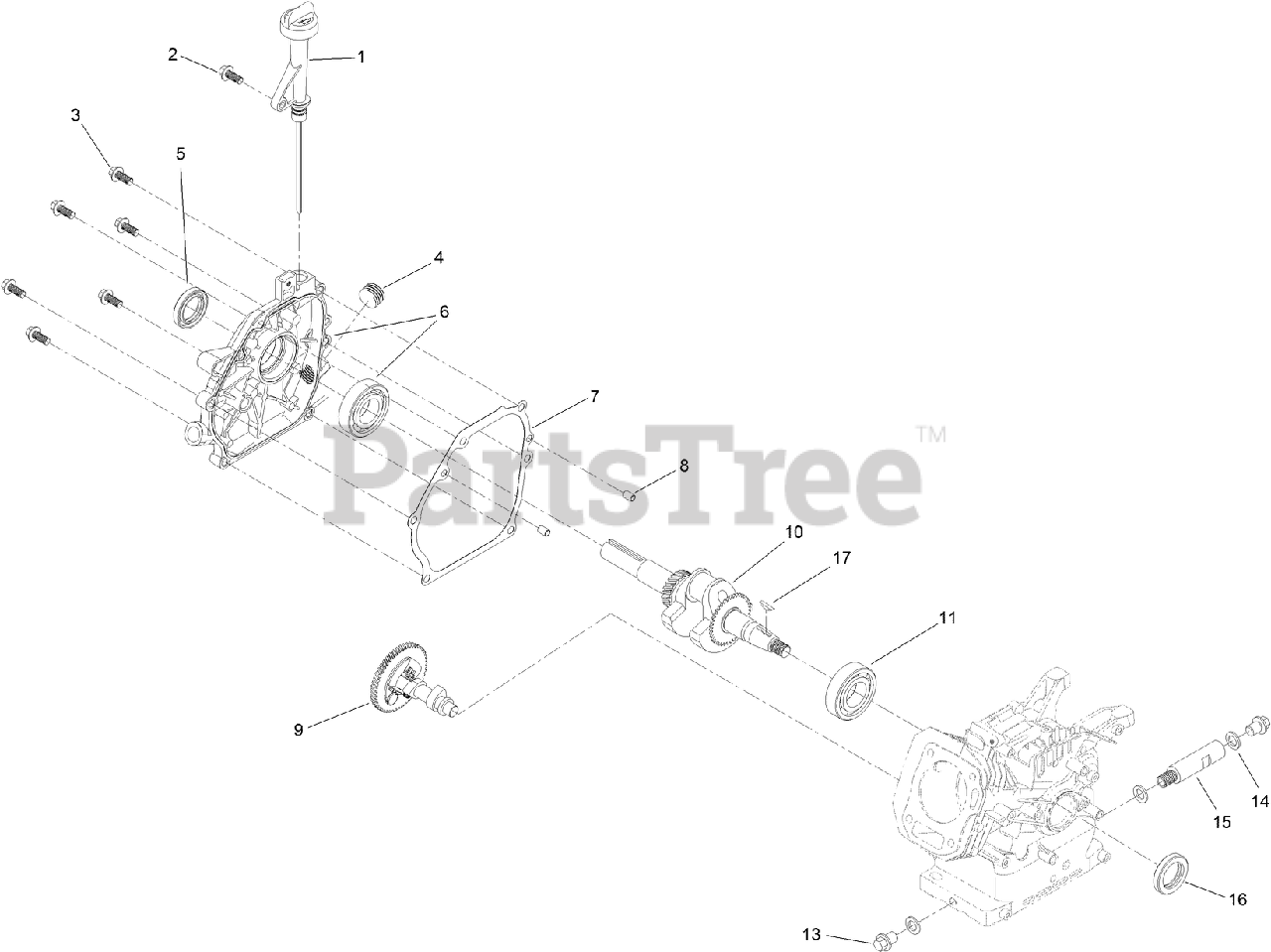

17740 - Lawn-Boy Snow Thrower (SN: 400000000 - 999999999) > Parts Diagrams (20) > CRANKCASE ASSEMBLY

  • Title
133-9837

1

OIL FILL ASM

Part# 133-9837

Not available

127-9123

2

SCREW-HHF

Part# 127-9123

Not available

121-4114

3

SCREW-HHF

Part# 121-4114

Not available

133-9805

4

Plug-Drain

Part# 133-9805

Not available

121-0209

5

SEAL-OIL

Part# 121-0209

Not available

133-9835

6

CRANKCASE COVER ASM

Part# 133-9835

Not available

121-0105

7

GASKET-COVER, CRANKCASE

Part# 121-0105

Not available

121-0054

8

PIN-DOWEL

Part# 121-0054

Not available

133-9836

9

CAMSHAFT

Part# 133-9836

Not available

127-9496

10

CRANKSHAFT

Part# 127-9496

Not available

121-0056

11

BEARING-BALL

Part# 121-0056

Not available

121-0030

13

SCREW-HHF

Part# 121-0030

Not available

121-0048

14

WASHER-PLAIN

Part# 121-0048

Not available

127-9104

15

TUBE-DRAIN, OIL

Part# 127-9104

Not available

121-0208

16

SEAL-OIL

Part# 121-0208

Not available

120-4320

17

KEY-WOODRUFF

Part# 120-4320

Not available
