17740 - Lawn-Boy Snow Thrower (SN: 400000000 - 999999999) Engine Assembly Parts Diagram

Snow Thrower

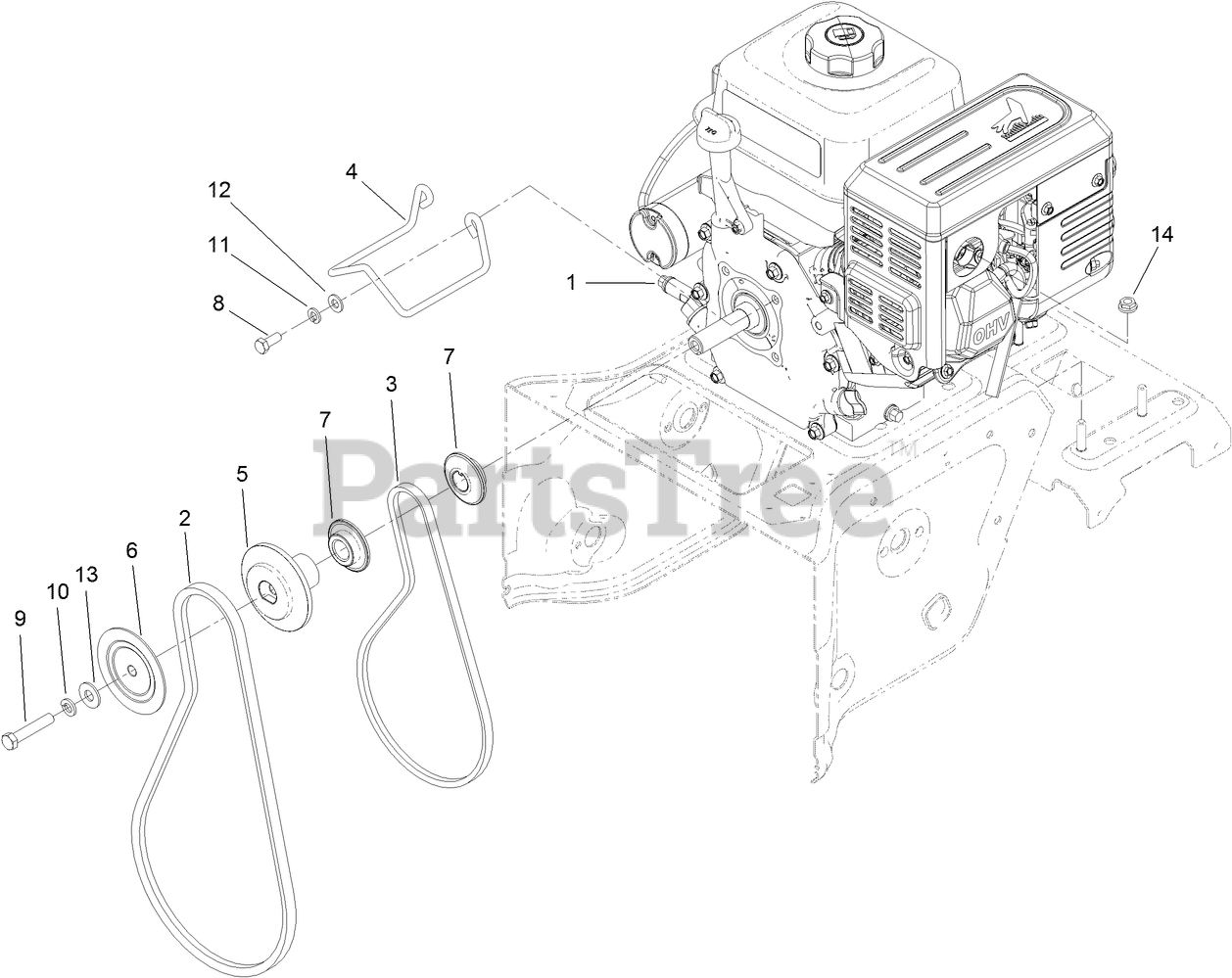

Engine Assembly Parts Diagram

  • Title

1

Lawn-Boy 127-9034

ENGINE-G210FDS-1

$775.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 120-3892

BELT-V

$26.99

$

In Stock, Qty 9

0

3

Lawn-Boy 120-3893

BELT-V

$17.99

$

In Stock, only 2 left!

0

4

Lawn-Boy 136-7156

GUIDE-BELT

$13.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 120-9283

PULLEY-AUGER, REAR

$38.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 120-9284

PULLEY-AUGER, FRONT

$22.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 121-6804

PULLEY-TRACTION

$18.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Lawn-Boy 120-2302

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

11

Lawn-Boy 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
