17740 - Lawn-Boy Snow Thrower (SN: 400000000 - 999999999) Pulley and Bellcrank Assembly Parts Diagram

Snow Thrower

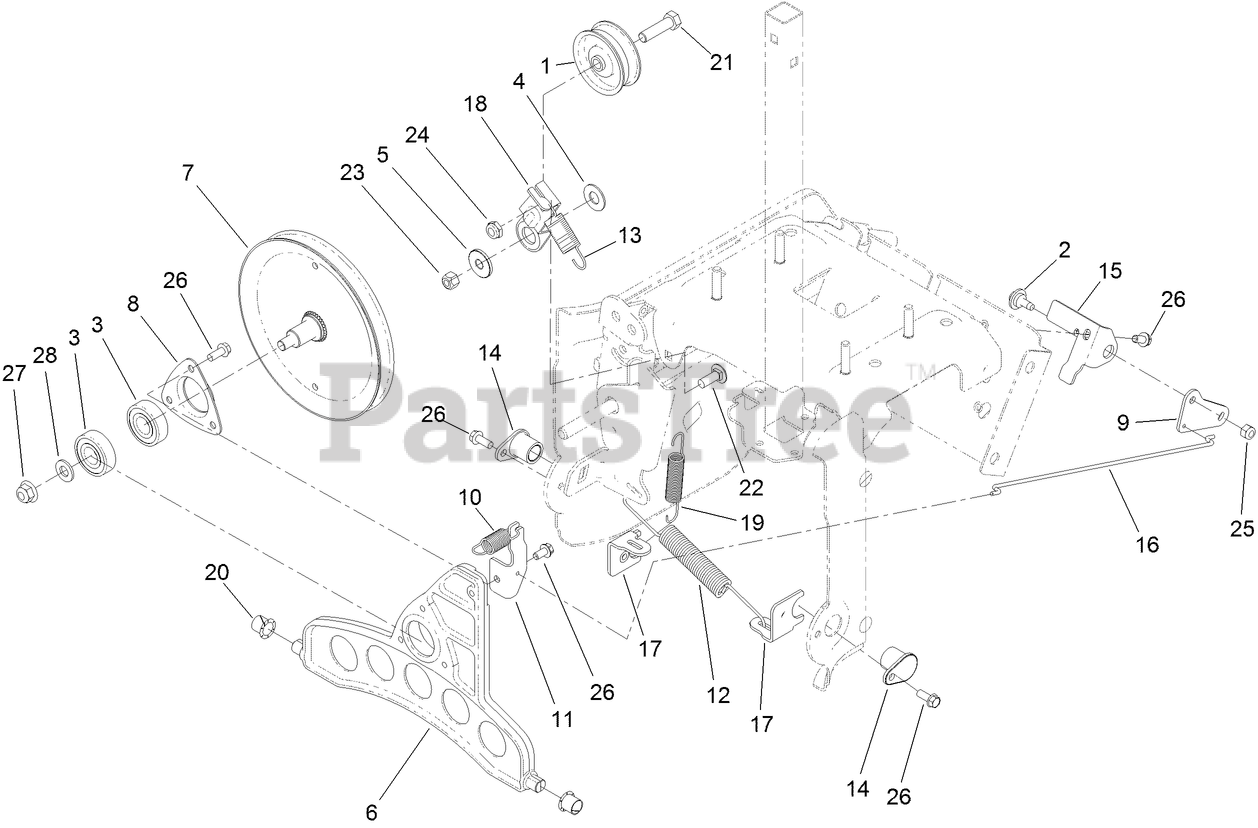

Pulley and Bellcrank Assembly Parts Diagram

  • Title

1

Lawn-Boy 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 92-9698

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

3

Lawn-Boy 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 117-7711

BUSHING-IDLER

$2.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 119-7645

PLATE-WHEEL, FRICTION

$38.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 136-7152

TRACTION PULLEY ASM

$66.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 136-7124

RETAINER-BEARING

$1.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 119-7670-03

BELLCRANK-DRIVE

$3.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 136-7153

SPRING-EXTENSION

$5.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 119-7679

BRACKET-PLATE, TRACTION

$3.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 120-3883

SPRING-EXTENSION

$6.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 137-3435

SPRING-EXTENSION

$3.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 120-7156

BUSHING-PLATE, TRACTION

$8.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 120-7165-03

BRACKET-BELLCRANK

$4.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 136-7155

LINK-DRIVE

$3.49

$

In Stock, only 4 left!

0

17

Lawn-Boy 120-9271

BRACKET-ANCHOR, SPRING

$3.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 136-7159

ARM-IDLER, TRACTION

$4.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 120-9275

SPRING-EXTENSION

$4.49

$

In Stock, only 1 left!

0

20

Lawn-Boy 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

22

Lawn-Boy 3230-10

BOLT-CARR

$3.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
