178-LU - Cub Cadet Engine 178-LU Crankshaft & Crankcase Parts Diagram

Engine

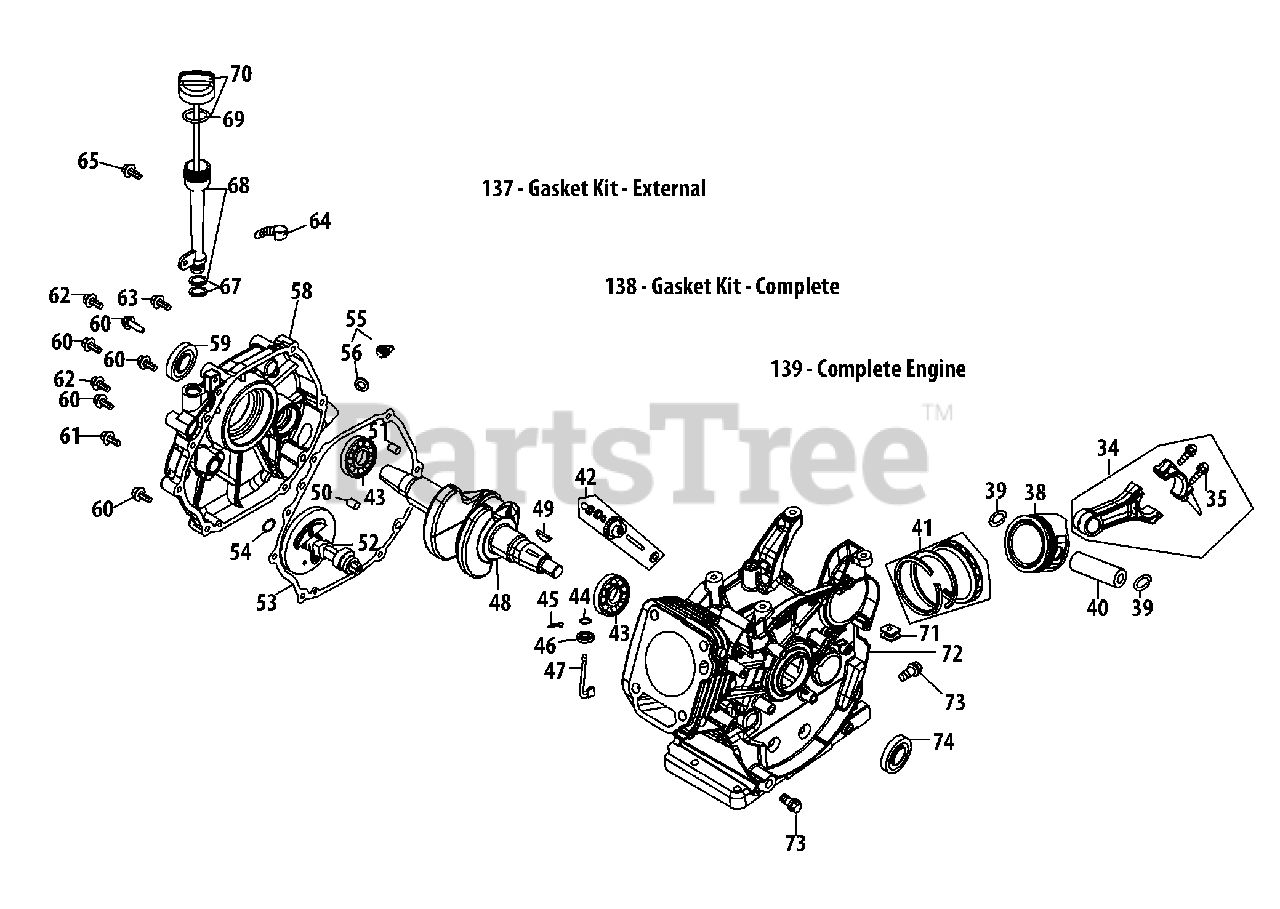

178-LU Crankshaft & Crankcase Parts Diagram

  • Title

34

Cub Cadet 951-12066

Connecting Rod Assembly

$78.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-05319

Connecting Rod Bolt

$5.49

$

In Stock, Qty 9

0

38

Cub Cadet 951-12043

Piston

$36.99

$

In Stock, only 1 left!

0

39

Cub Cadet 951-11632

Piston Pin Snap Ring

$4.49

$

In Stock, only 2 left!

0

40

Cub Cadet 951-12044

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-12387

Piston Ring Set

$26.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 751-12068

Governor Gear/Shaft Assembly
(Superseded to 951-12068)

$21.99

$

In Stock, only 1 left!

0

43

Cub Cadet 951-12069

Radial Ball Bearing

$40.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 736-04453

Washer 8×20×0.8

$6.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 714-04077

Cotter Pin

$6.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 951-11958

Governor Seal

$4.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 951-12071

Governor Arm Shaft

$6.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-05050

Crankshaft Kit

Note: (Incl.43,48,59,74)

$308.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 715-04102

Dowel Pin 9×12

$5.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

In Stock, only 2 left!

0

52

Cub Cadet 951-12072

Camshaft Assy.
(Superseded to 951-12072A)

$102.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 951-11374

Crankcase Cover Gasket

$16.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 736-04545

Washer 16×24×0.5

$4.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 951-11283

Oil Fill Plug Assembly

$7.49

$

In Stock, only 2 left!

0

56

Cub Cadet 951-11577

O-Ring 15.8×2.5

$4.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-12395

Crankcase Cover

$128.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-05049

Crankcase Cover Kit

Note: (Incl.43,53,54,58-62)

$242.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 951-12396

Oil Seal, 30×46×8

$16.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 710-04971

Bolt M8×38
(Superseded to 710-06061)

$6.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 710-04972

Bolt M8×45
(Superseded to 710-06062)

$6.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 710-05052

Bolt M8×35
(Superseded to 710-06063)

$6.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

64

Cub Cadet 951-11320

Dipstick Clamp

$8.49

$

Usually ships in 3-6 days

0

65

Cub Cadet 710-05349

Bolt M6×8

$4.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-11381

O-Ring

$5.99

$

In Stock, Qty 8

0

68

Cub Cadet 951-12073

Oil Fill Tube Assembly

$12.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 951-11904

O-Ring, Dipstick

$4.49

$

In Stock, Qty 5

0

70

Cub Cadet 951-11971A

Disptick Assembly

$33.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-12398

Wire Clamp Rubber

$4.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-05051

Crankcase Service Kit

Note: (Incl.43,46,72,74)

$438.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-05045

Shortblock Assembly

Note: (Incl.34,38-48,50-62,71,74,90,93,94,97,102,115,121-123)

$909.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-12514

Oil Drain Plug
(Superseded to 951-12514A)

$6.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-12400

Oil Seal 30×46×8

$14.99

$

Usually ships in 3-6 days

0

137

Cub Cadet 951-05048

Gasket Kit - External

Note: (Incl.97,115,121-123)

$36.99

$

Usually ships in 3-6 days

0

138

Cub Cadet 951-05047

Gasket Kit - Complete

Note: (Incl.46,53,59,74,94,97,115,121-123)

$74.99

$

Usually ships in 3-6 days

0

139

Cub Cadet 952Z178-LU

Complete Engine

$1236.99

$

Usually ships in 3-6 days

0
