1782 (144-714-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 889000) Engine Controls II Parts Diagram

Super Garden Tractor

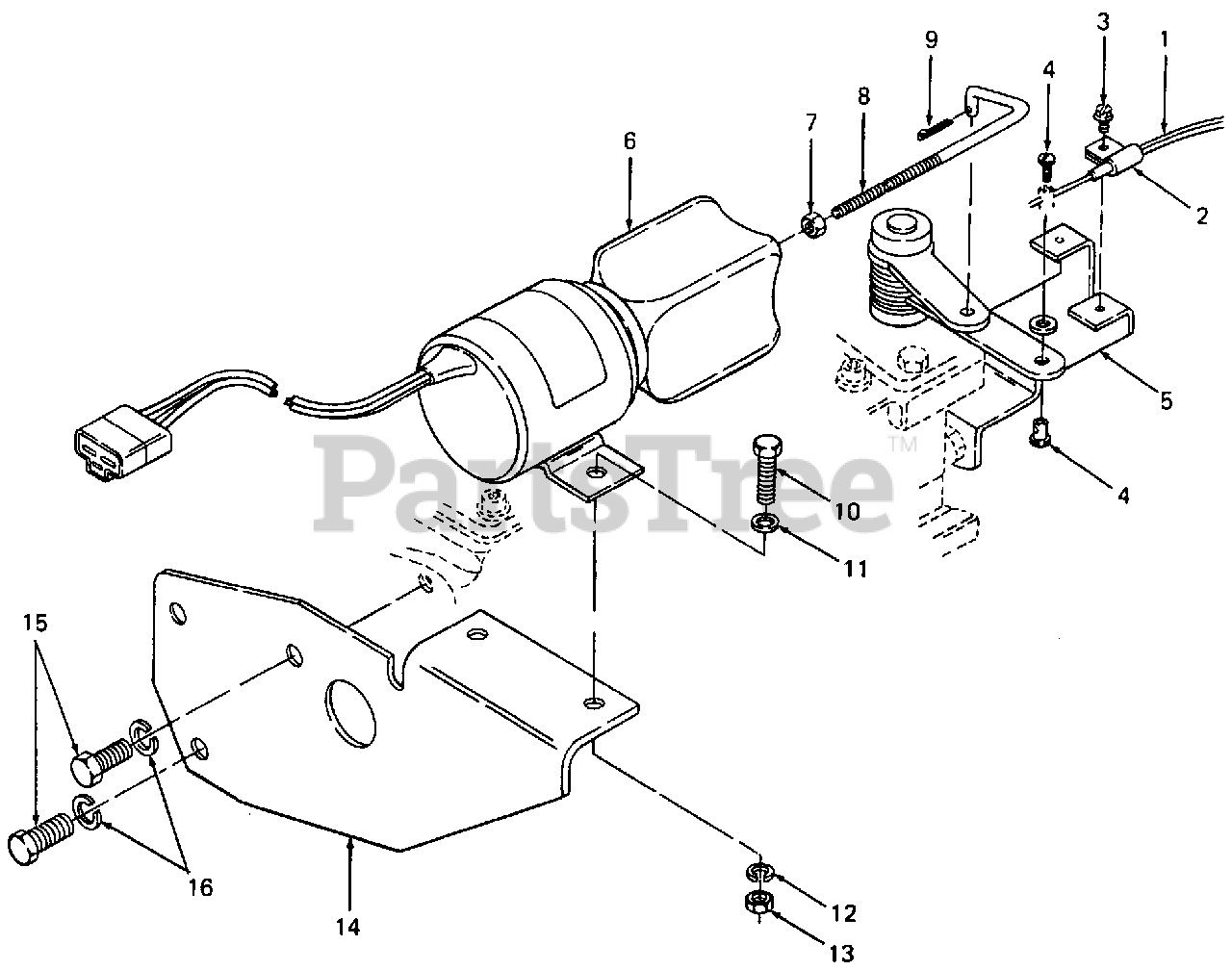

Engine Controls II Parts Diagram

  • Title

1

Cub Cadet 746-3032

Control, Throttle
(Superseded to 946-3032)

$

$

Not available

2

Cub Cadet 726-3036

Clamp, Conduit

$

$

Not available

3

Cub Cadet 710-0436

Screw, Hex "B" Tapp, #10 X .62 Lg
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 746-3034

Clamp, Swivel Wire

$

$

Not available

5

Cub Cadet 703-1002

Bracket, Control

$

$

Not available

6

Cub Cadet 759-3544

Kit, Solenoid Shutdown

Note: [Includes Ref No. 7, 8, 9, 10 (Qty 2),11 (Qty 2), 12 (Qty 2), 13 (Qty 2), 1

$

$

Currently unavailable

7

Nut, Hex Jam, 1/4-28

$

$

Not available

8

Rod, Threaded

$

$

Not available

9

Pin, Cotter

$

$

Not available

10

Bolt, Hex, M6 X 20 mm Lg

$

$

Not available

11

Washer, Flat, .26 X .47 X .065 Thk

$

$

Not available

12

Washer, Lock, M6

$

$

Not available

13

Nut, Hex, 6 mm

$

$

Not available

14

Bracket, Solenoid Mtg

$

$

Not available

15

Bolt, Hex, M8 X 20 mm Lg

$

$

Not available

16

Washer, Lock, M8

$

$

Not available
