1782 (144-714-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 889000) Gear Case I Parts Diagram

Super Garden Tractor

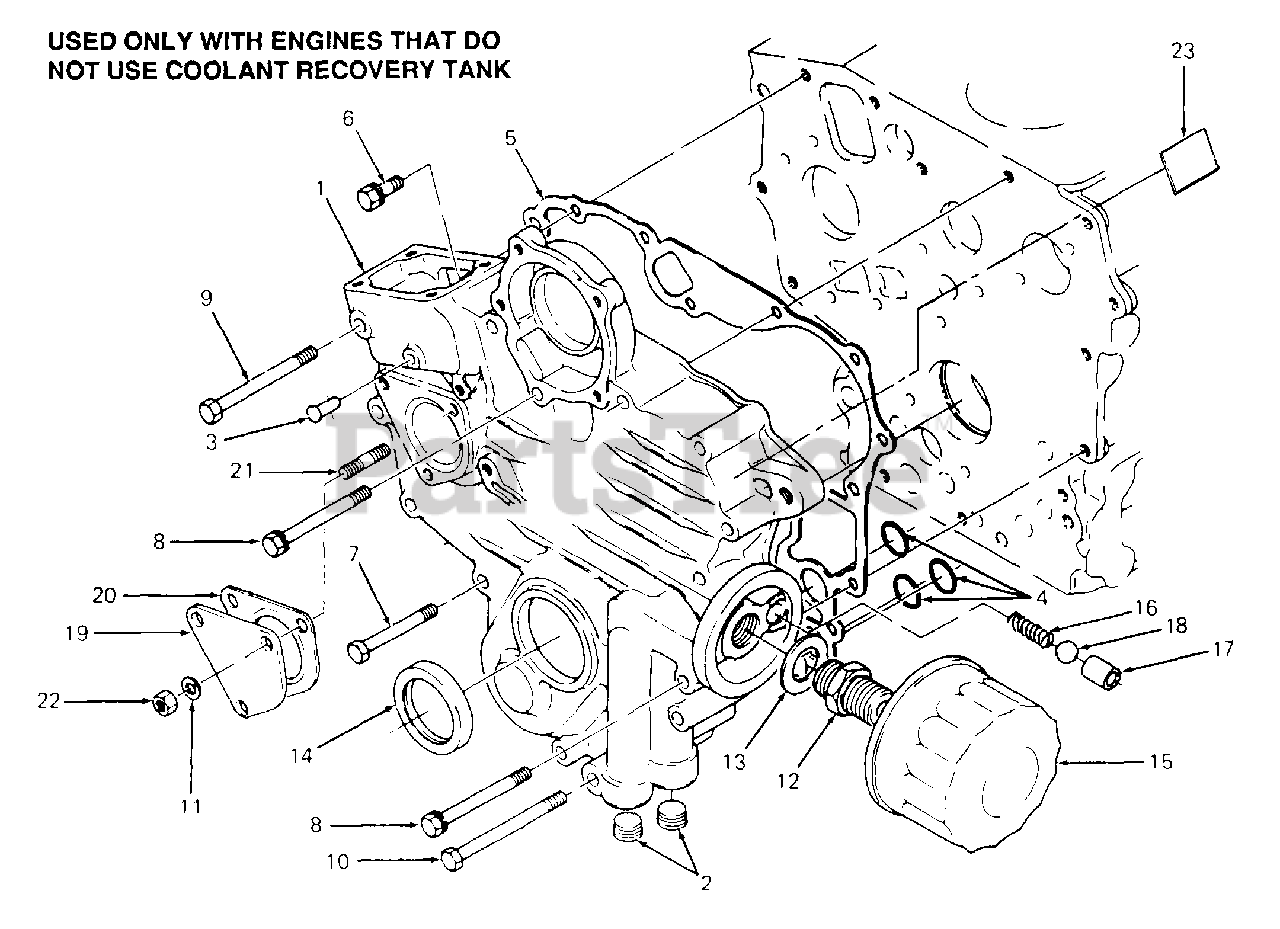

Gear Case I Parts Diagram

  • Title

1

Cub Cadet KB-19069-04020

Case Assy, Gear

Note: [Includes Ref No. 2 (Qty 2), 3 & 4 (Qty 3)]

$

$

Currently unavailable

2

Cub Cadet KB-16851-96010

Plug

$

$

Not available

3

Cub Cadet KB-15841-56280

Pin

$

$

Not available

4

Cub Cadet KB-04811-06130

O-Ring, 1/2 X 11/16

$

$

Not available

5

Cub Cadet KB-15862-04130

Gasket, Gear Case
(Superseded to KB-15862-04132)

$

$

Not available

6

Cub Cadet KB-01023-50618

Screw, Hex Cap w/Washer

$

$

Not available

7

Cub Cadet KB-01023-50650

Screw, Hex Cap

$

$

Not available

8

Cub Cadet KB-15841-91010

Screw, Hex Cap w/Washer

$

$

Not available

9

Cub Cadet KB-01023-50670

Screw, Hex Cap

$

$

Not available

10

Cub Cadet KB-01023-50675

Screw, Hex Cap

$

$

Not available

11

Cub Cadet KB-04512-50060

Washer, Spring
(Superseded to KB-04512-70060)

$

$

Not available

12

Cub Cadet KB-15241-32290

Joint, Pipe

$

$

Not available

13

Cub Cadet KB-15841-94010

Washer, Flat

$

$

Not available

14

Cub Cadet KB-15877-04140

Seal, Oil

$

$

Not available

15

Cub Cadet KB-70000-15241

Element, Filter
(Superseded to KB-HH150-32430)

$26.99

$

In Stock, Qty 8

0

16

Cub Cadet KB-15841-36950

Spring

$

$

Not available

17

Cub Cadet KB-15841-36930

Seat, Valve

$

$

Not available

18

Cub Cadet KB-07715-03211

Ball, Metal, 11/32 Dia

$

$

Not available

19

Cub Cadet KB-19461-83340

Cover

$

$

Not available

20

Cub Cadet KB-19461-88130

Gasket

$

$

Not available

21

Cub Cadet KB-15221-88210

Stud

$

$

Not available

22

Cub Cadet KB-02056-50060

Nut, Hex

$

$

Not available

23

Cub Cadet KB-19047-87110

Label

$

$

Currently unavailable
