17ADCACN066 - Troy-Bilt Mustang XP 46" Zero-Turn Mower, FAB Deck (2018) Platform Parts Diagram

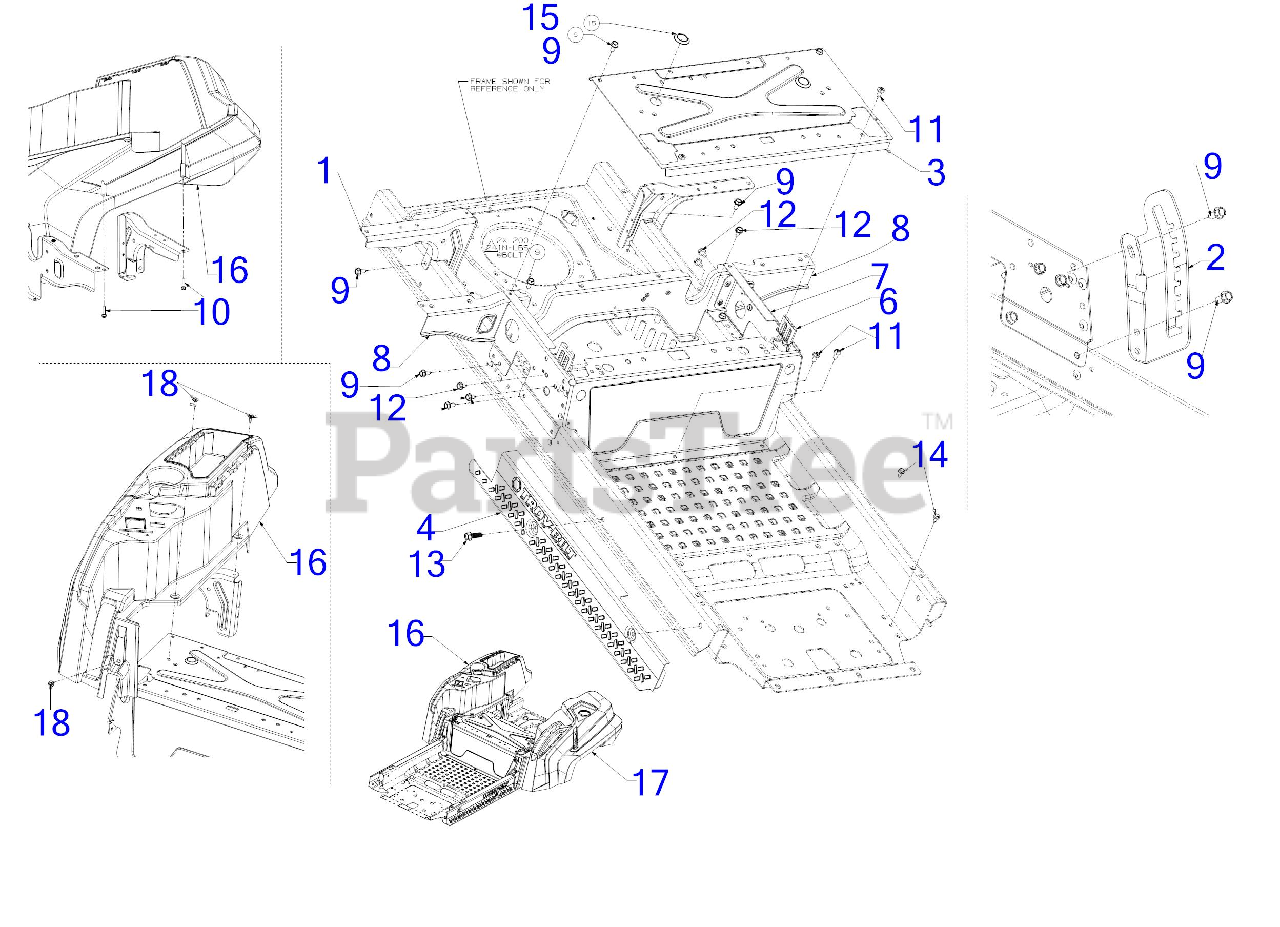

Mustang XP 46" Zero-Turn Mower, FAB Deck

Platform Parts Diagram

  • Title

1

Troy-Bilt 703-08720B

REAR TANK BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 703-08720B-4021

BRKT-TANK REAR - CUB YELLOW 2 (4021)

$30.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-08720B-0606

BRKT-TANK REAR - MAJESTIC ORANGE (0606)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-08720B-0637

BRKT-TANK REAR - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-08720B-0638

BRKT-TANK REAR - MTD/TROY-BILT RED (0638)

$30.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-08720B-0662

BRKT-TANK REAR - OYSTER GRAY (0662)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-08720B-0691

BRKT-TANK REAR - BLACK JACK (0691)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-08720B-4033

BRKT-TANK REAR - FLINT MICA (4033)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-08720B-4044

BRKT-TANK REAR - CRAFTSMAN RED (4044)

$28.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 703-08762C

HEIGHT INDEX BRACKET

$15.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 703-09045H

SEATBOX TOP PLATE
(Superseded to 703-09045J)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 703-09045H-0638

PLT-SEATBOX TOP - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09045H-0606

PLT-SEATBOX TOP - MAJESTIC ORANGE (0606)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09045H-0637

PLT-SEATBOX TOP - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09045H-0662

PLT-SEATBOX TOP - OYSTER GRAY (0662)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09045H-0691

PLT-SEATBOX TOP - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09045H-4021

PLT-SEATBOX TOP - CUB YELLOW 2 (4021)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09045H-4033

PLT-SEATBOX TOP - FLINT MICA (4033)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09045H-4044

PLT-SEATBOX TOP - CRAFTSMAN RED (4044)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 703-09119B

FRAME SUPPORT (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 703-09119B-0638

SUPPORT-FRAME RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09119B-4033

SUPPORT-FRAME RH - FLINT MICA (4033)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 703-09139

FRAME SUPPORT (LH)
(Superseded to 703-09139C)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 703-09139-0638

SUPPORT-FRAME LH - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09139-4033

SUPPORT-FRAME LH - FLINT MICA (4033)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 703-09211A

LAPBAR BRACE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 703-09211A-0637

BRACKET-LAPBAR BRACE - POWDER BLACK (0637)

$7.49

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09211A-0691

BRACKET-LAPBAR BRACE - BLACK JACK (0691)

$6.49

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09211A-4021

BRKT-LAPBAR BRACE - CUB YELLOW 2 (4021)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 703-09320C

SEAT FRAME
(Superseded to 703-09320F)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 703-09320C-0606

FRAME-SEAT BOX - MAJESTIC ORANGE (0606)

$71.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09320C-0637

FRAME-SEAT BOX - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09320C-0638

FRAME-SEAT BOX - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09320C-0662

FRAME-SEAT BOX - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09320C-0691

FRAME-SEAT BOX - BLACK JACK (0691)

$71.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09320C-4021

FRAME-SEAT BOX - CUB YELLOW 2 (4021)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09320C-4033

FRAME-SEAT BOX - FLINT MICA (4033)

$71.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09320C-4044

FRAME-SEAT BOX - CRAFTSMAN RED (4044)

$82.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 703-09332A

REAR SEATBOX BRACE
(Superseded to 703-11179)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 703-09332A-0606

BRACE-REAR SEATBOX - MAJESTIC ORANGE (0606)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09332A-0637

BRACE-REAR SEATBOX - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09332A-0638

BRACE-REAR SEATBOX - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09332A-0662

BRACE-REAR SEATBOX - OYSTER GRAY (0662)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09332A-0691

BRACE-REAR SEATBOX - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09332A-4021

BRACE-REAR SEATBOX - CUB YELLOW 2 (4021)

$50.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09332A-4033

BRACE-REAR SEATBOX - FLINT MICA (4033)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-09332A-4044

BRACE-REAR SEATBOX - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-05109

SCREW 5/16-14 x 1

$3.49

$

In Stock, Qty 7

0

11

Troy-Bilt 710-05424

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 5

0

12

Troy-Bilt 710-0607

SCREW 5/16-18 x .500

$6.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-1315

SCREW 3/8-16 X1.250

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 726-3045A

PLUG

$4.49

$

In Stock, Qty 11

0

16

Troy-Bilt 931-09335

CONSOLE (RH)

$107.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 931-10106

CONSOLE (LH)

$108.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 738-05090

SHOULDER SCREW M6-1 .368 X.115

$2.99

$

In Stock, Qty 20+

0
