17ADCACS066 - Troy-Bilt Mustang XP 42" Zero-Turn Mower (2016) Engine Accessories Parts Diagram

Mustang XP 42" Zero-Turn Mower

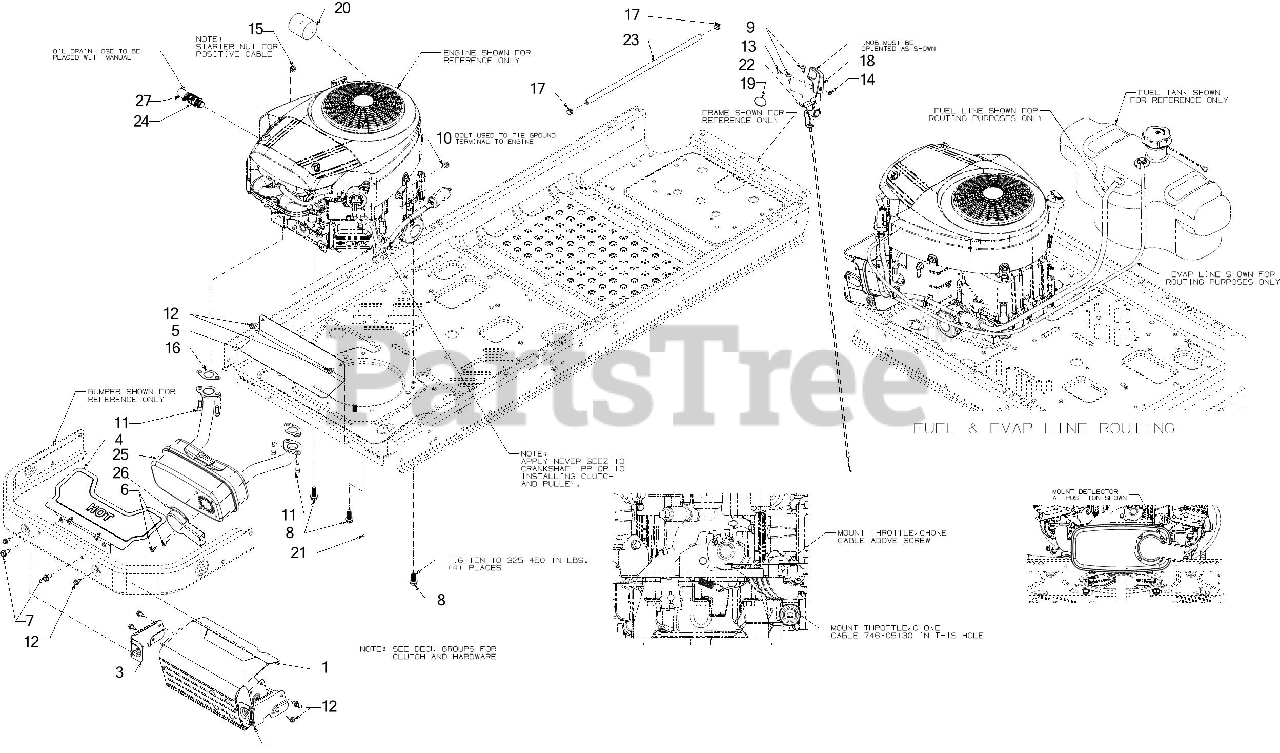

Engine Accessories Parts Diagram

  • Title

1

Troy-Bilt 603-05156A-4033

MUFFLER SHIELD W/EXTENSION

$98.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 683-04549C-0637

MUFFLER SHIELD
(Superseded to 683-05460A-0637)

Note: (Not Shown)

$84.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 703-08671B-4033

MUFFLER SHIELD BRACKET (RH)

$7.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 703-08695A-4033

MUFFLER SHIELD BRACKET (LH)

$7.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 703-09083-4033

MUFFLER HEAT SHIELD

$33.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703-09195

LOWER HEAT SHIELD

$19.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0227

HEX SCREW WASHER HD #8-18 x 0.500

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-04683C

SCREW 3/8-16 x 1

$6.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-05070A

SCREW 1/4-20 x .5

$7.49

$

In Stock, Qty 5

0

10

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1314A

SCREW 5/16-18 x .625

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-3217

SCREW #8-32X.38 LG

$7.49

$

In Stock, only 4 left!

0

14

Troy-Bilt 712-0142

HEX NUT 8-32

$4.99

$

In Stock, Qty 7

0

15

Troy-Bilt 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 721-0460

MUFFLER GASKET
(Superseded to 721P0460)

$7.49

$

In Stock, Qty 9

0

17

Troy-Bilt 726-0205

HOSE CLAMP 1/20

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 731-09637

THROTTLE CONTROL KNOB

$8.99

$

In Stock, Qty 11

0

19

Troy-Bilt 731-1999

CHOKE PLUG

$10.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt n/a

SAE OIL 10W30 (Not Serviceable)

$

$

Currently unavailable

21

Troy-Bilt n/a

ANTI-SIEZE GREASE (Not Serviceable)

$

$

Currently unavailable

22

Troy-Bilt 946-05130

THROTTLE CABLE 38"

$46.99

$

In Stock, only 4 left!

0

23

Troy-Bilt 751-10349-28

FUEL HOSE LOW PERMEATION

$49.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 951-10517A

OIL DRAIN VALVE

$25.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 951-10542A

EXHAUST MUFFLER(B&S)(TWIN)
(Superseded to 951-10542E)

$151.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 751-11053A

EXHAUST DELECTOR
(Superseded to 751-11053B)

$5.99

$

In Stock, Qty 12

0

27

Troy-Bilt 751-3141-14

DRAIN HOSE 14''

$12.99

$

In Stock, Qty 16

0
