17ADCACT066 - Troy-Bilt Mustang XP 46" Zero-Turn Mower (2014) Mower Deck 46-Inch Parts Diagram

Mustang XP 46" Zero-Turn Mower

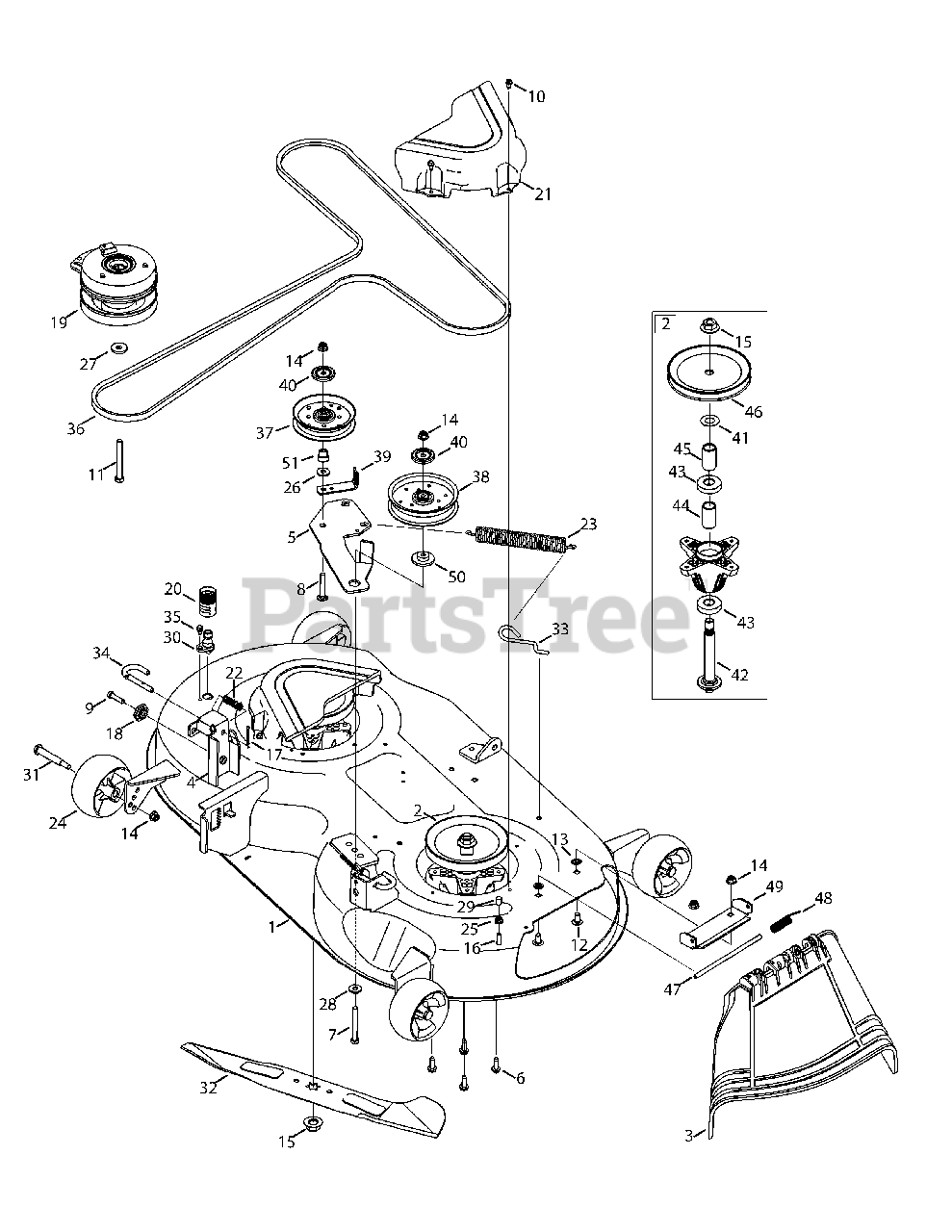

Mower Deck 46-Inch Parts Diagram

  • Title

1

Troy-Bilt 903-05123-4033

46" Deck
(Superseded to 903-05123B-4033)

$783.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 918-05078

Spindle Assembly
(Superseded to 918-05078A)

$164.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 631-05191

Chute Deflector Assembly
(Superseded to 631-05191A)

$60.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 683-05124-4033

Deck Lift Bracket
(Superseded to 683-05124-0637)

$47.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703-08612A-4033

Idler Bracket

$

$

Not available

6

Troy-Bilt 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-3085

Hex Cap Screw, 3/8-16 x 3.50

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-05376

Carriage Screw, 3/8-16 x 1.75

$4.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-0573

Hex Cap Screw, 5/16-18 x 1.25

$6.99

$

In Stock, Qty 6

0

10

Troy-Bilt 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-3157A

Screw, 7/16-20 x 3.25

$11.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-0417A

Hex Flange Nut, 5/8-18

$7.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 714-0162

Cotter Pin, 5/32 x 1.25

$5.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 917-05122A

Electric PTO Clutch

$546.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 921-04041

Water Nozzle Adapter

$24.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 731-08698

Belt Cover
(Superseded to 731-08698B)

$22.99

$

In Stock, Qty 14

0

22

Troy-Bilt 932-3127

Compression Spring, .66 x 1.9

$4.99

$

In Stock, Qty 16

0

23

Troy-Bilt 732-04927

Extension Spring, 1.25 OD x 1.751

$24.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 734-04155

Deck Ball Wheel, 5.0

$21.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-0262

Flat Washer, .385 x .870 x .092

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0322

Flat Washer, .450 x 1.25 x .164

$9.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-3052

Flat Washer, .406 x 1.00 x .105

$4.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 6

0

30

Troy-Bilt 731-07487

Deck Wash Nozzle

$4.99

$

In Stock, Qty 19

0

31

Troy-Bilt 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 942-04244A

Blade, 2 in 1, 23.25
(Superseded to 942-04290A)

$36.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 747-06292

Deck Hanger Rod

$12.99

$

In Stock, Qty 15

0

35

Troy-Bilt 738-04278

Shoulder Screw, .500 x 1/4-20

$7.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 954-04325

V-Belt

$73.99

$

In Stock, Qty 13

0

37

Troy-Bilt 756-05042

Idler Pulley, 4.25 Dia.

$33.99

$

In Stock, only 3 left!

0

38

Troy-Bilt 756-04511B

Idler Pulley, 5.00 Dia.

$56.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 703-09583-0637

Bracket Belt Guard

$14.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 783-08389

Pulley Cap

$6.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 936-0351

Washer, .760 x 1.50 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 938-1128

Spindle Shaft

$49.99

$

In Stock, Qty 11

0

43

Troy-Bilt 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 750-04936

Spacer, .792 x 1.060 x 1.860

$7.49

$

In Stock, Qty 11

0

45

Troy-Bilt 750-1343

Spacer, .8 x 1.1 x 2.26

$6.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 756-04356

Deck Pulley

$39.99

$

In Stock, Qty 13

0

47

Troy-Bilt 711-04847B

Hinge Pin

$9.49

$

In Stock, Qty 14

0

48

Troy-Bilt 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 10

0

49

Troy-Bilt 783-06074A

Chute Bracket

$34.99

$

In Stock, Qty 11

0

50

Troy-Bilt 738-05013A

Shoulder Spacer

$6.49

$

In Stock, Qty 7

0

51

Troy-Bilt 748-05029

Shoulder Spacer
(Superseded to 748-05029A)

$5.49

$

In Stock, Qty 20+

0
