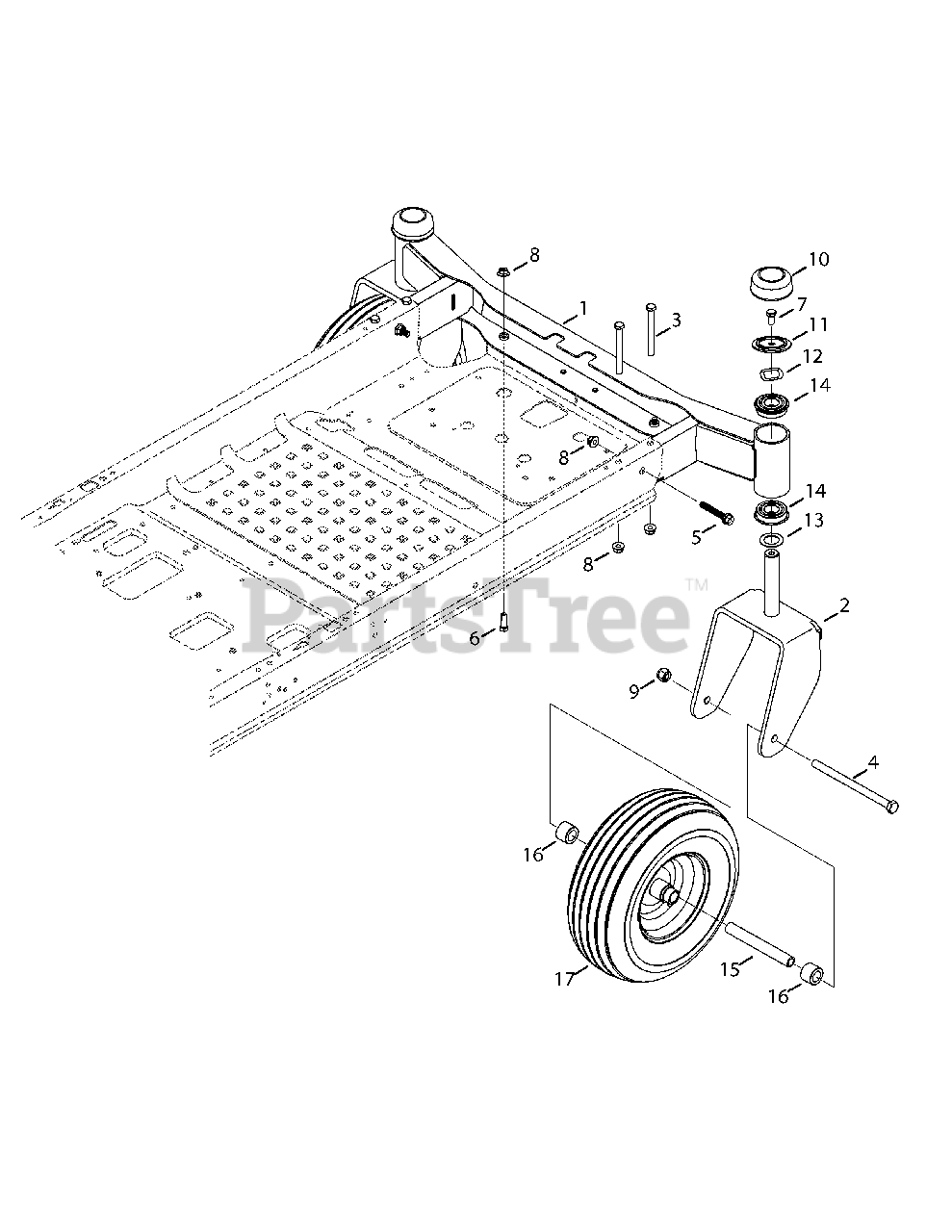

17ADCACT066 - Troy-Bilt Mustang XP 46" Zero-Turn Mower (2015) Front Axle Parts Diagram

Mustang XP 46" Zero-Turn Mower

Front Axle Parts Diagram

  • Title

1

Troy-Bilt 603-05135-0638

Front Axle

$472.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-05058B-0638

Caster Wheel Bracket
(Superseded to 603-05058C-0638)

$125.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04576

Hex Cap Screw, 3/8-16 x 3.75

$5.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04652

Hex Cap Screw, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.99

$

In Stock, Qty 16

0

5

Troy-Bilt 710-06093

Hex Flange Screw, 3/8-16 x 2.00

$5.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-3119

Hex Cap Screw, 3/8-16 x .750

$7.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 17

0

10

Troy-Bilt 731-09347

Cap

$6.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 738-05091

Shoulder Spacer, 2.50 x .200

$8.99

$

In Stock, Qty 18

0

12

Troy-Bilt 736-05033A

Wave Washer, 1.25 x 1.00 x .300

$5.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0745

Flat Washer, 1.010 x 1.56 x .060

$13.99

$

In Stock, Qty 15

0

14

Troy-Bilt 941-05022A

Ball Bearing

$21.99

$

In Stock, Qty 18

0

15

Troy-Bilt 750-04775A

Spacer, .51 x .75 x 5.825

$29.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 750-04792

Hub, .76 x 1.23 x .92

$8.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 634-04711-0911

Wheel Assembly, 13 x 5 x 6
(Superseded to 634-04711A-0916)

$

$

Not available
